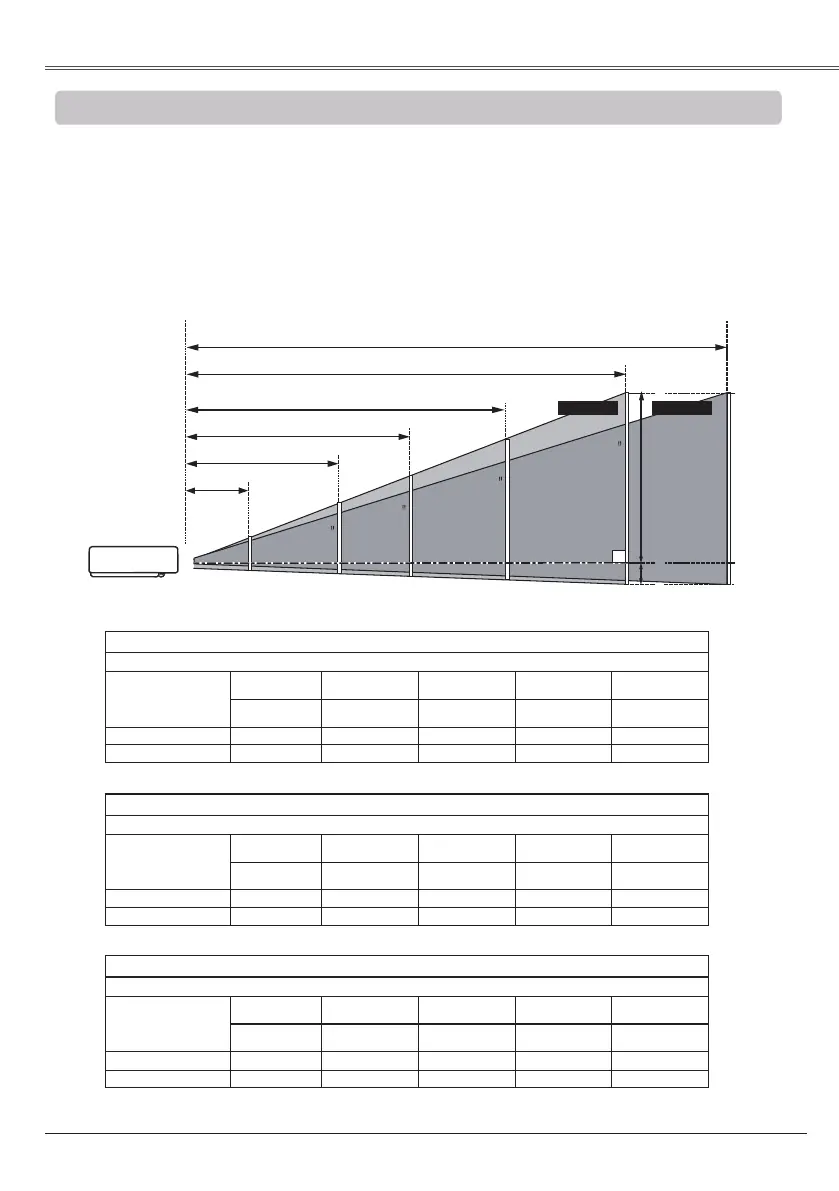

For projector positioning, see the figures below. The projector should be set perpendicularly to the
plane of the screen.
• The brightness in the room has a great influence on picture quality. It is recommended to limit ambient lighting
in order to obtain the best image.
• All measurements are approximate and may vary from the actual sizes.
A
B
100"
150"
200"
250
167
125
83
300"(wide)
40"
300"(tele )
Max. Zoom Min. Zoom
(Inch Diagonal)
(Center)
For LV-8227A, LV-8227M
A:B = 13:1
Screen Size
(W x H) mm
16:10 aspect ratio
40” 100” 150” 200” 300”
862 x 538 2154 x 1346 3231 x 2019 4308 x 2692 6462 x 4039
Zoom (max) 4.0’(1.2m) 10.1’(3.1m) 15.1’(4.6m) 20.2’(6.2m) 30.3’(9.3m)
Zoom (min) 4.8’(1.5m) 12.1’(3.7m) 18.2’(5.5m) 24.3’(7.4m) 36.4’(11.1m)
For LV-7392A
A:B = 6:1
Screen Size
(W x H) mm
4:3 aspect ratio
40” 100” 150” 200” 300”
813 x 610 2032 x 1524 3048 x 2286 4064 x 3048 6096 x 4572
Zoom (max) 3.6’(1.1m) 9.5’(2.9m) 14.3’(4.4m) 19.1’(5.8m) 28.6’(8.7m)
Zoom (min) 4.5’(1.4m) 11.4’(3.5m) 17.1’(5.2m) 22.9’(7.0m) 34.4’(10.5m)
For LV-7292A, LV-7297A, LV-7292M, LV-7297M
A:B = 6:1
Screen Size
(W x H) mm
4:3 aspect ratio
40” 100” 150” 200” 300”
813 x 610 2032 x 1524 3048 x 2286 4064 x 3048 6096 x 4572
Zoom (max) 4.3’(1.30m) 10.7’(3.26m) 16.1’(4.90m) 21.5’(6.55m) 32.3’(9.84m)
Zoom (min) 5.1’(1.55m) 12.9’(3.92m) 19.4’(5.90m) 25.8’(7.87m) 38.7’(11.80m)
