Unplug the power cords of both the projector and external equipment
from the AC outlet before connecting cables.
•When the MIC function is set to in the Sound menu, the MIC function is disabled.
•When MIC is set to On in Sound Menu, AUDIO IN (PC/MIC) and AUDIO IN(L/R) terminals can be connected
at the same time. At this time, AUDIO IN (PC/MIC) termianl as MIC input, AUDIO IN(L/R) terminal as
COMPUTER or VIDEO audio input.
• When the AUDIO OUT is plugged-in, the projector's built-in speaker is not available.
• VGA Cables (Mini D-sub 15 pin) *(Only one cable is supplied.)
• Audio Cables
• HDMI-DVI Cable
(*One cable is supplied; other cables are not supplied with the projector.)

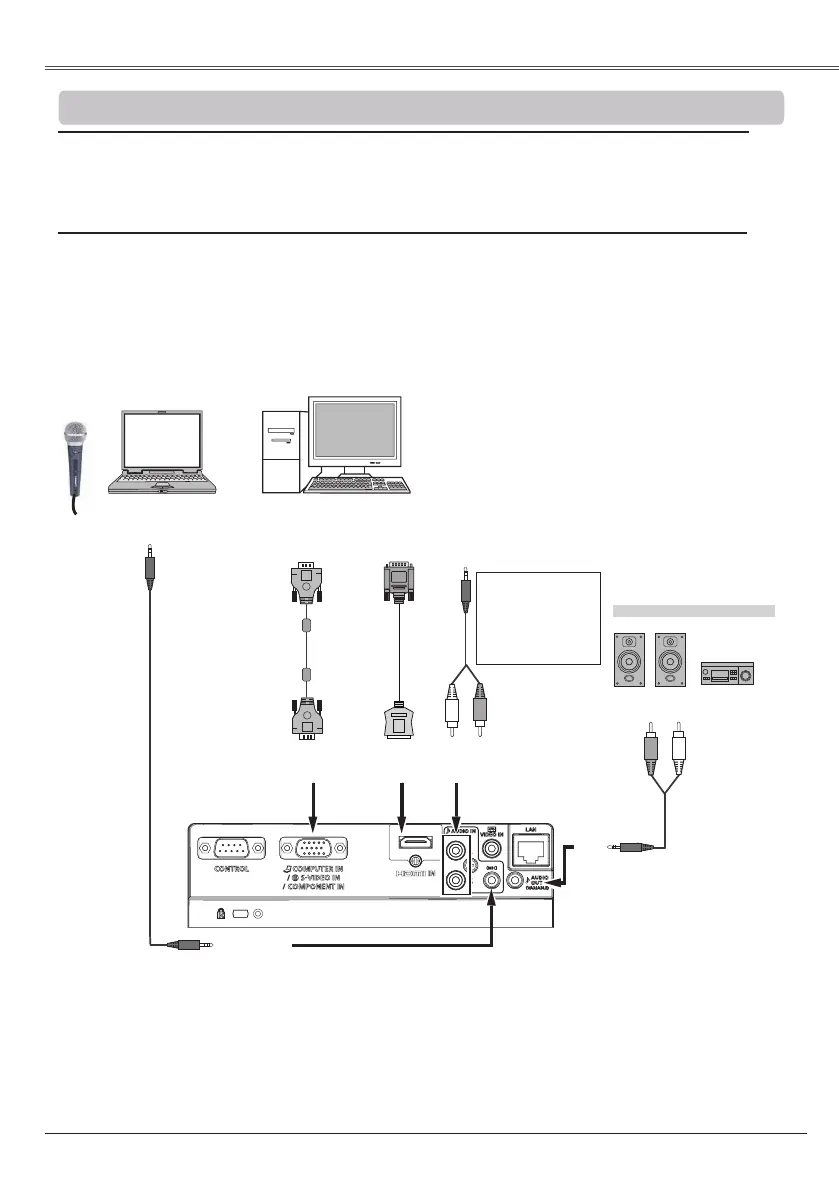

External Audio Equipment
Audio
cable
(stereo)
Audio cable
(stereo)
Audio Output
AUDIO IN (PC or MIC)
AUDIO OUT
(stereo)
Audio Input
Monitor
Output
HDMI
IN
VGA
cable
COMPUTER IN/
S-VIDEO IN
/COMPONENT IN
HDMI-
DVI
cable
Monitor
Output
PC AUDIO IN
Audio
Output
When using AUDIO
IN(PC/MIC) terminal
as MIC input,
connect to this
terminals for PC
audio input.
MIC
To Next Page
