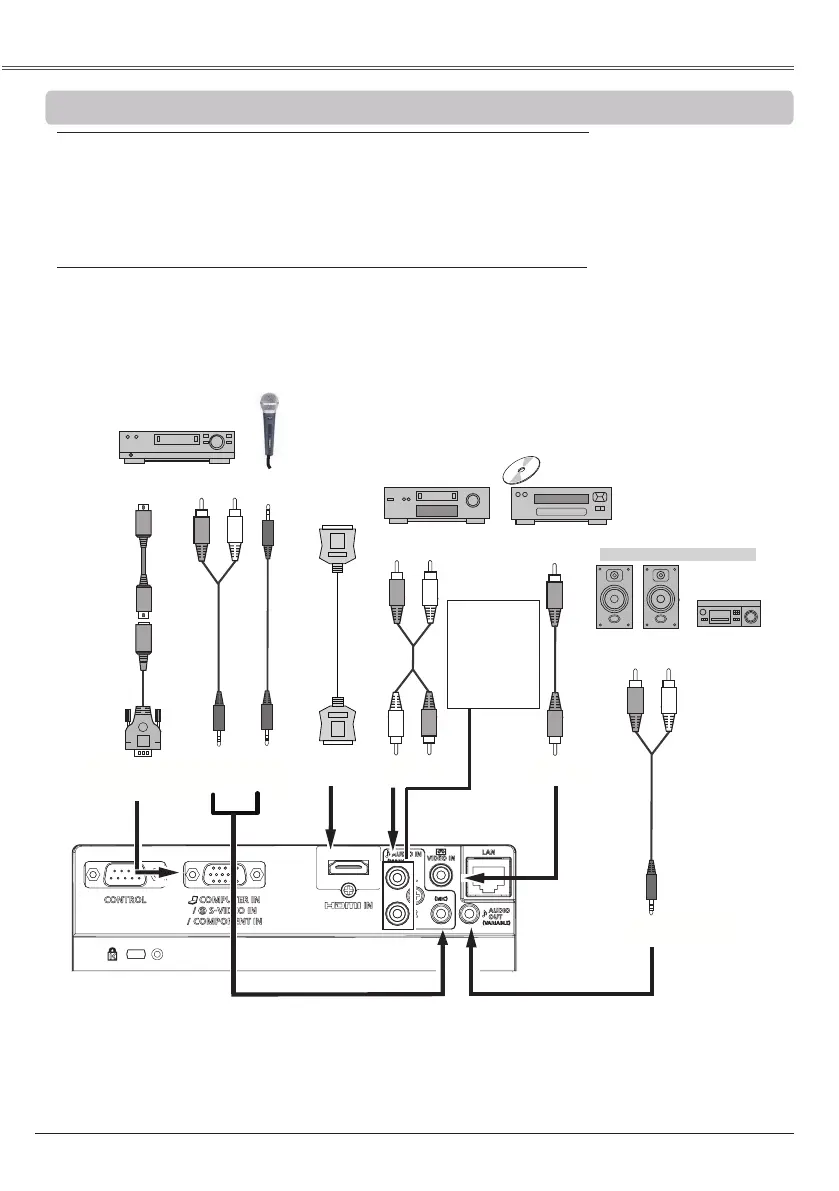

External Audio Equipment
Audio cable
(stereo)
S-VIDEO
cable
Audio Output
S-VIDEO
Output
Audio Input
AUDIO IN
(PC or MIC)
S-VIDEO-
VGA cable
VIDEO
cable
COMPUTER IN
/ S-VIDEO IN
/COMPONENT IN
VIDEO IN
Audio
cable
(stereo)
AUDIO OUT
(stereo)
AUDIO IN
Audio
cable
(stereo)
• VIDEO Cable
• S-VIDEO Cable
• S-VIDEO-VGA Cable
• Audio Cables
• HDMI Cable
(Cables are not supplied with the projector. )
• When the MIC function is set to in the Sound menu, the MIC function is disabled.
• When the AUDIO OUT is plugged-in, the projector's built-in speaker is not available.
• See page 79 for ordering optional cables.
Audio
cable
(stereo)
Composite VIDEO
Audio output
MIC
output
HDMI
Output
HDMI
IN
HDMI
cable
Unplug the power cords of both the projector and external equipment
from the AC outlet before connecting cables.
When using
AUDIO
IN(PC/MIC)
terminal as MIC
input, connect to
this terminals for
PC audio input.
(p.17)
Video, DVD player, etc.
Video, DVD player, etc.
To Next Page
