Canon XA11 User Manual

Connecting to an External Monitor
102
External Connections
Connecting to an External Monitor
When you connect the camcorder to an external monitor for playback, use the terminal on the
camcorder that matches the one you wish to use on the monitor. Then, select the video signal output
configuration. p The camcorder will automatically switch between the AV OUT and HDMI OUT
terminals based on the external connection.

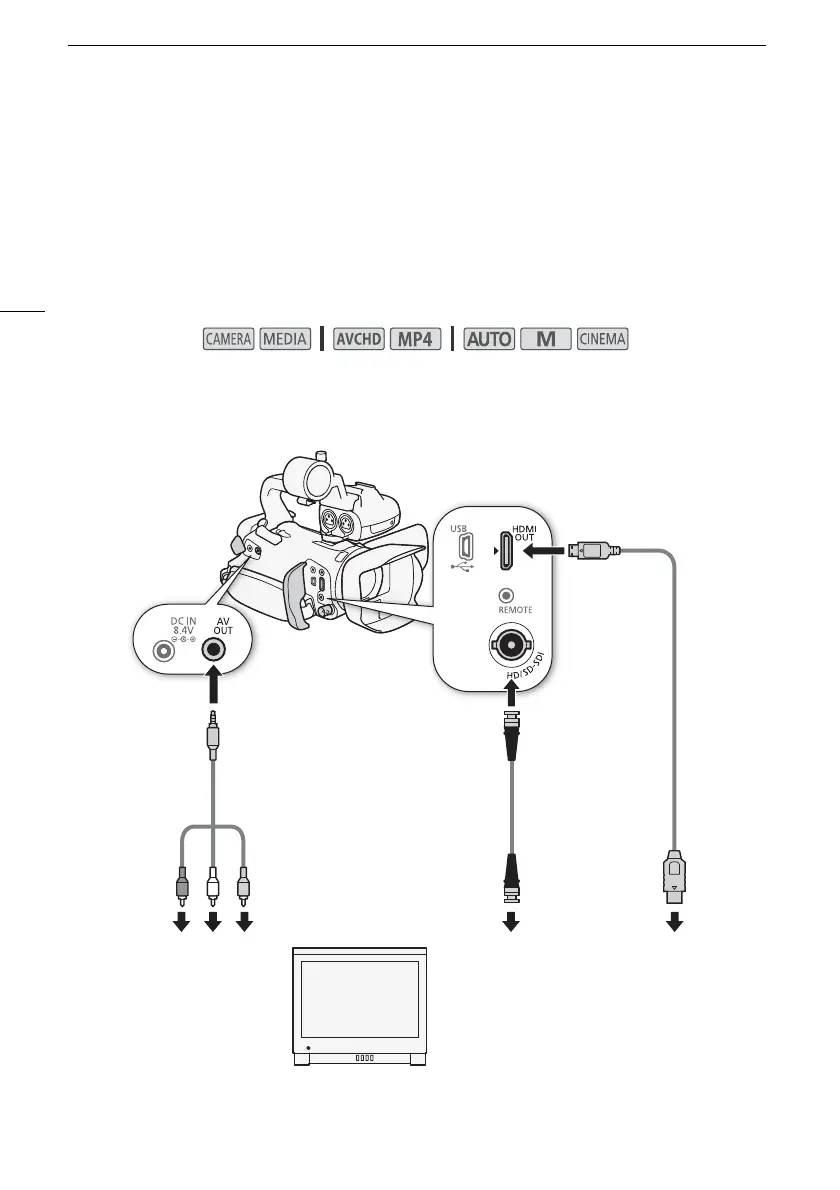

Connection Diagram
We recommend that you power the camcorder from a power outlet using the compact power adapter.
Operating modes:
STV-250N
Stereo Video
Cable (optional)
VIDEO IN/
AUDIO IN
HDMI INSDI IN
BNC cable
(commercially available)
HTC-100
High Speed
HDMI Cable
(optional)
HDMI OUT
terminal
AV OUT terminal
HD/SD-SDI terminal*
* o only
6
External Connections
