External Connections

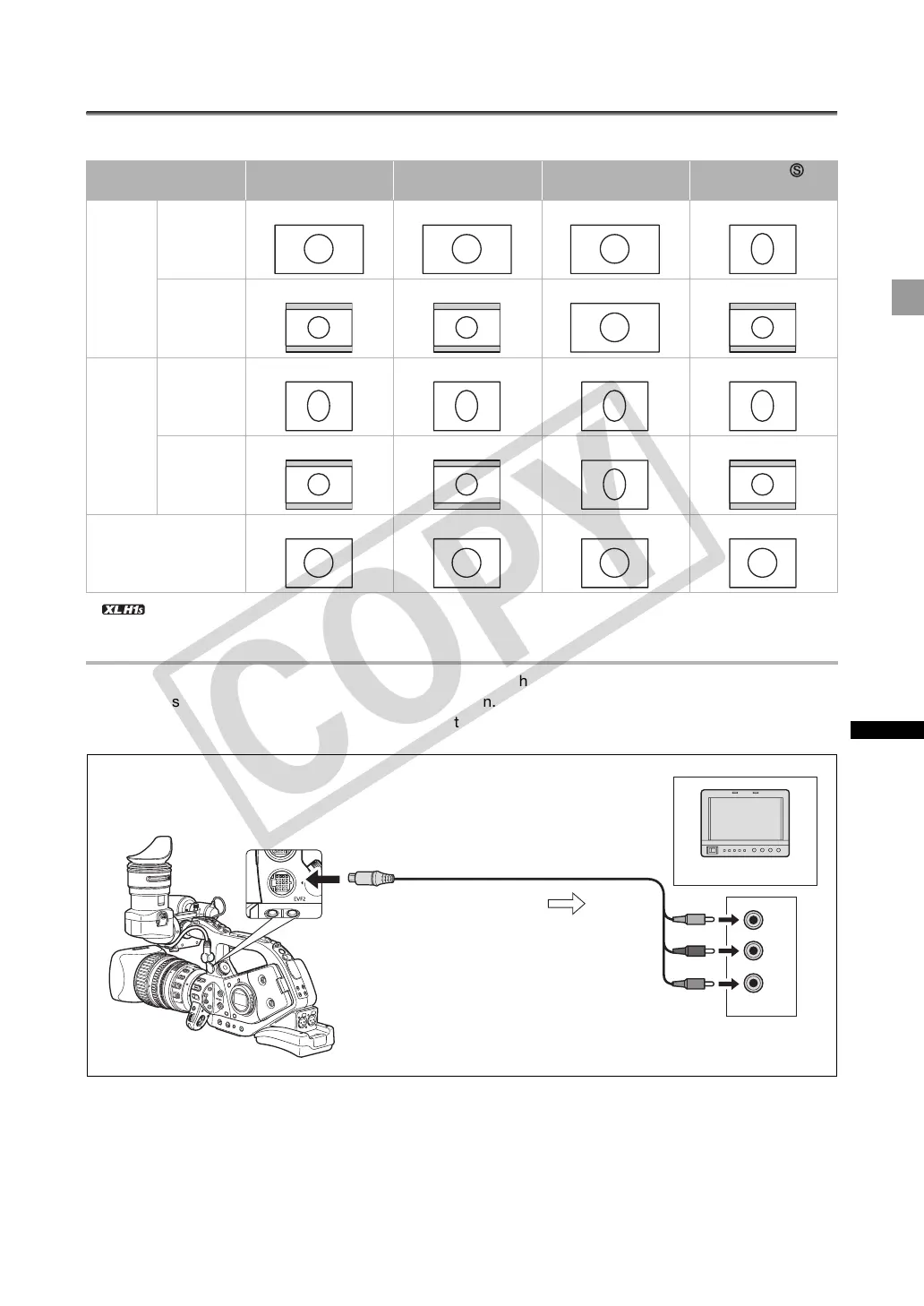

Connecting to a Monitor/TV
The different recording modes and the corresponding output terminals are given in the table below:
* only.
Displaying the Viewfinder's Screen on an External Monitor
The screen of an external monitor or viewfinder connected to the EVF2 socket will show the exact same
picture as displayed on the camcorder's viewfinder screen. Use the supplied external monitor cable to
connect to a monitor or TV equipped with component video inputs.
HD/SD SDI Terminal*
COMPONENT OUT
Terminal
HDV/DV
Terminal
VIDEO and
Terminals
HD [LETTERBOX]
set to [OFF]
1920x1080 D3 (1440x1080) MPEG TS
[LETTERBOX]
set to [ON]
SD SDI D1 (SD) MPEG TS
SD 16:9 [LETTERBOX]
set to [OFF]
640x480 D1 (SD) DV (SD)
[LETTERBOX]
set to [ON]
SD SDI D1 (SD) DV (SD)
SD 4:3 640x480 D1 (SD) Normal DV (SD)
External Monitor Cable (supplied)
Signal flow
Green
Blue
Red
Y
Pb
Pr
COPY
