10.2 FCPM082A10 electrical specifications
Power supply 230 Vac single-phase. -15% +10% 50/60 Hz
Analogue outputs 1 phase control 0-230Vac single-phase, 8A (min 500mA)
Inputs 1 phase control function
0-5V 2mA max;
Signal lights Green power LED
Terminals and connectors Power supply and analogue outputs:
Screw terminals for cable cross-section min. 2.5 mm
2
max 4 mm
2
.
Signals:
Spring terminals for cable cross-section max 2.5mm
2
.
Operating conditions -20/+50°C, <85% rH non-condensing
Storage conditions -20/+70°C, <85% rH non-condensing
Index of protection IP54
Environmental pollution 2
Protection against electric shock Class I
PTI of the insulating materials 250V
Period of stress across the insulating parts Long
Type of action –disconnection 1Y
Category of resistance to heat and fire Category D (UL94 – V0)
Immunity against voltage surges Category II
Ageing characteristics 60,000 operating hours
No. of automatic operating cycles 100,000
Software class and structure Class A
Case Metallic (Al) with plastic cover (ball pressure test 75°C)
Dimensions 140x135x90 mm
Assembly Metal case fastened to panel or wall mounted using 4 screws dia. 3.5/4 mm
Certification EMC :EN 61326-1, EN 55014-1, EN 55014-2
Safety: EN 60730-1
Table 10.b

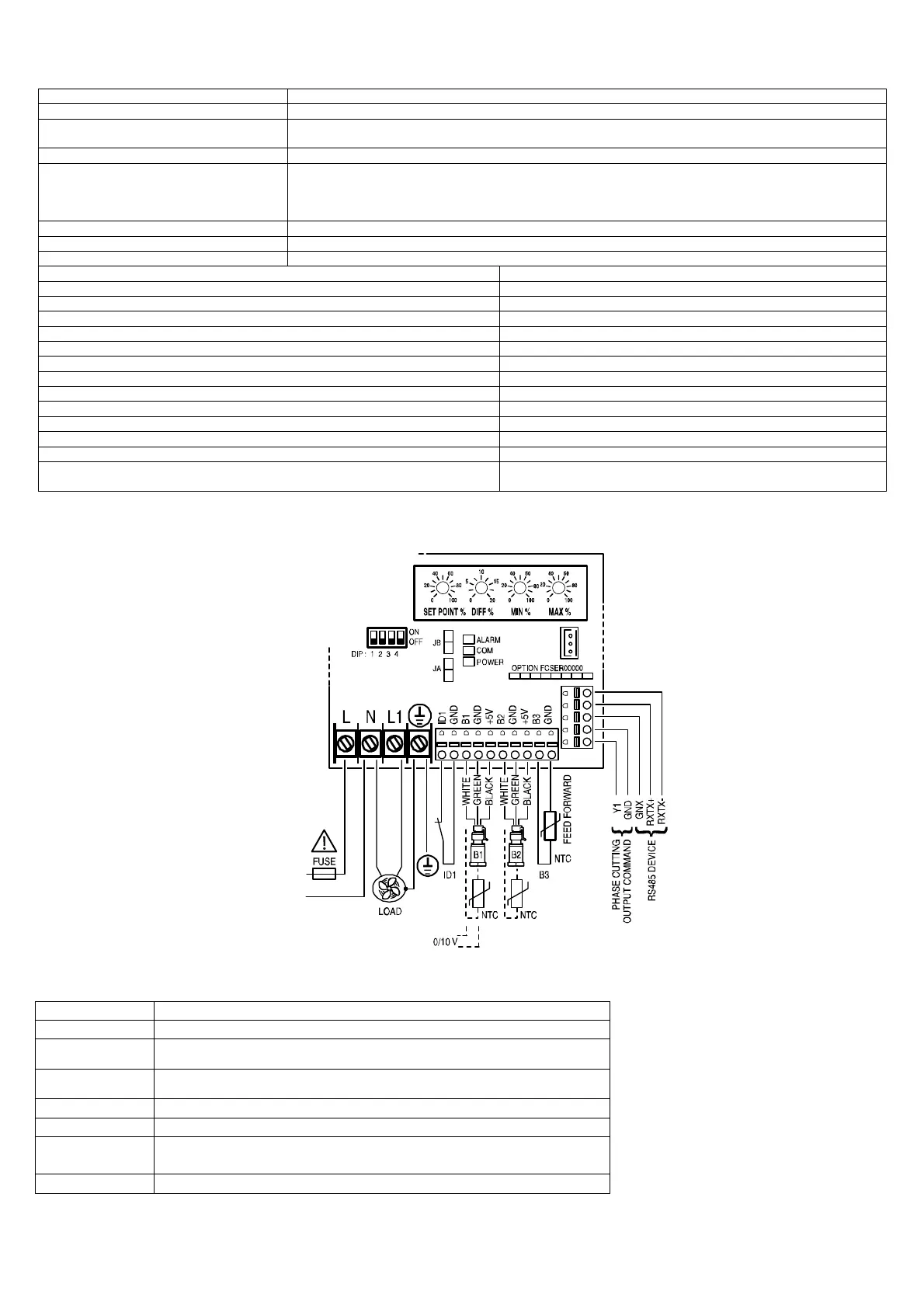

10.3 FCPM082010 / FCPM0420A0 connections
PROG.
KEY
230 V~
Fig. 10.a
L, N
Controller 230 Vac power supply input
L1, N
Power supply output to 0 to 230 Vac load
ID1, GND
Programmable digital input. Motor protector or second set point management, see dipswitch
configuration.
B1, GND, +5V
Analogue input for pressure (ratiometric) or temperature reading (CAREL NTC probe or 0/10 V
control) in circuit 1
B2, GND, +5V
Analogue input for pressure (ratiometric) or temperature reading (CAREL NTC probe) in circuit 2
B3, GND
NTC input for temperature reading used in the feed-forward algorithm (CAREL NTC probe)..
GNX, RX+TX+,
RX-TX-
RS485 serial with CAREL supervisor or ModBus slave protocol (the FCSER0000 option is required).
Y1, GND
Control output for expansion with auxiliary power device;
