Casio MZ-X500 User Manual

Information
A-2

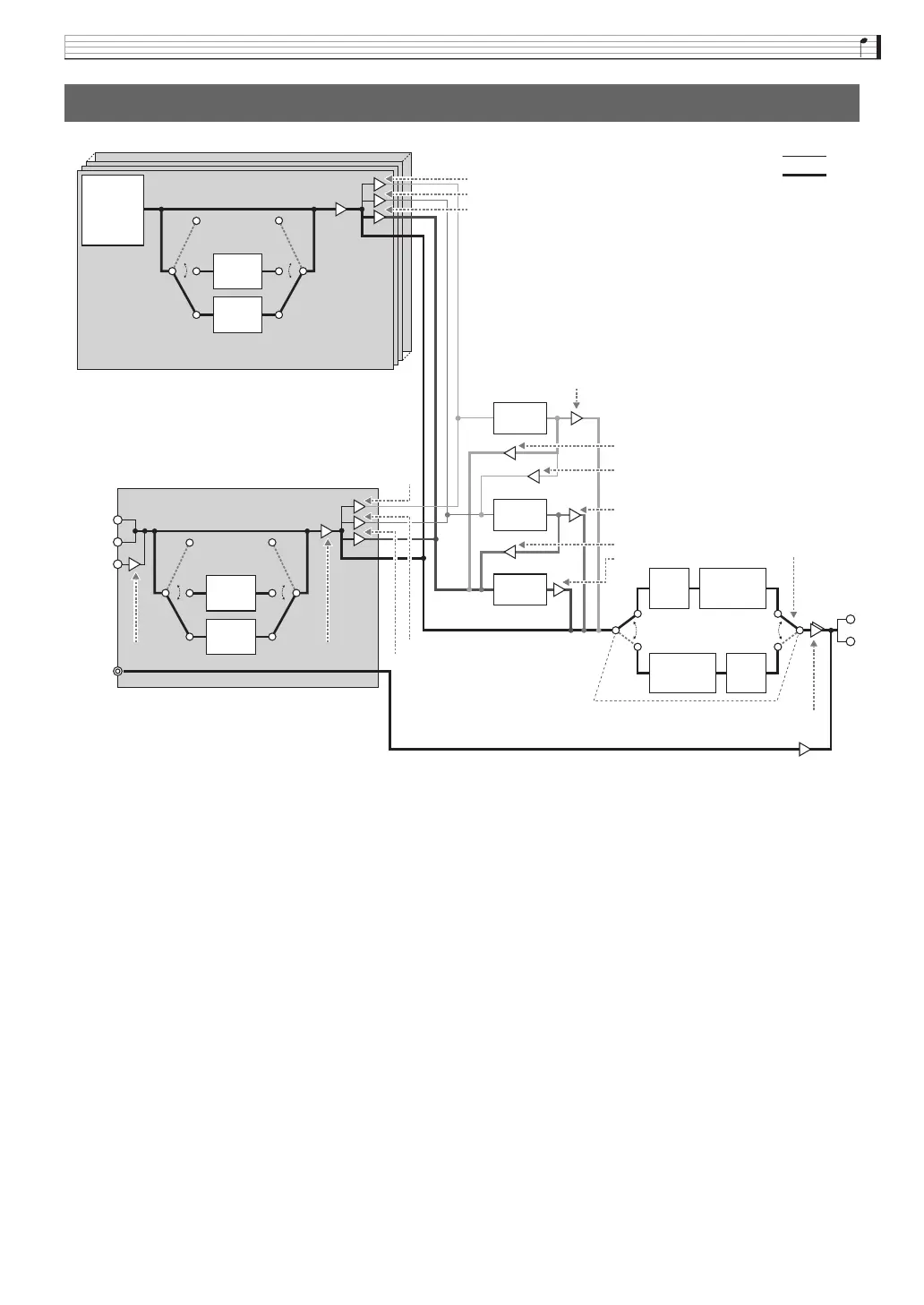

Block Diagram
LINE IN
AUDIO IN
MIC IN
Tone
Generator
LINE/
SPEAKER
OUT
Port A/B/C : Part1-16
External Part
System
Chorus
System
Delay
System
Reverb
Master
EQ
Master
Compressor
Master
EQ
Master
Compressor
DSP2
DSP1
DSP2
DSP1
Chorus Send
Mono
Stereo
Chorus Return
Chorus Send
Delay Send
Reverb Send
Audio Volume
Volume
Comp position
Pre EQ / Post EQ
Chorus sent to Reverb
Delay sent to Reverb
Reverb Return
Chorus sent to Delay
Delay Return
Delay Send
Reverb Send
Master Volume
MIC Volume External In Volume
Note1:
If an effect is selected for DSP 1 and/or DSP 2,
changing the tone setting of Part 1 to 5
(keyboard tones) changes the DSP 1 effect to
that of the newly selected tone. Changing the
tone setting of another (accompaniment) part
changes DSP 2 effect to that of the newly
selected tone.
Note2:
DSP1 and DSP2 are common to Port A/B/C,
Part 1 to 16.

Casio MZ-X500 Specifications

General

Control type	Buttons
MIDI-keyboard number of keys	61 keys
Product color	Blue
Sound effects	Chorus, Equalization, Flanger/Digital Signal Processing (DSP), Phaser, Pitch shift, Reverberation
Volume control	Digital
Octave adjustment	Yes
Maximum polyphony (notes)	128
Music memory capacity (songs)	100
Interface	USB
Headphone outputs	1
USB ports quantity	2
Cables included	AC
Display type	LCD

Weight and Dimensions

Depth	400 mm
Width	950 mm
Height	151 mm
Weight	7600 g
