Manager Operation
3-5-2. Hardware interface
3-5-2-1. Inline interface
The maximum inline cable length and the maximum connection unit will be varied by
the inline communication speed as shown below figure.
• Using 10BASE-T
Cable length: 100m (hub to terminal, hub to hub)
Maximum 4 hubs in one cluster.
Maximum cable length between terminal and terminal via hubs is 500m.
• Using 100Base-TX
Cable length: 100m (hub to terminal, hub to hub)
Maximum 2 hubs in one cluster.
Maximum cable length between terminal and terminal via hubs is 300m.
Max.100m
Max.500m
Max.100m
Max.100m Max.100m
Max.100m Max.100m
Max.100m
Max.100m cross cable
Max.100m
Max.300m
Max.100m
Max.100m

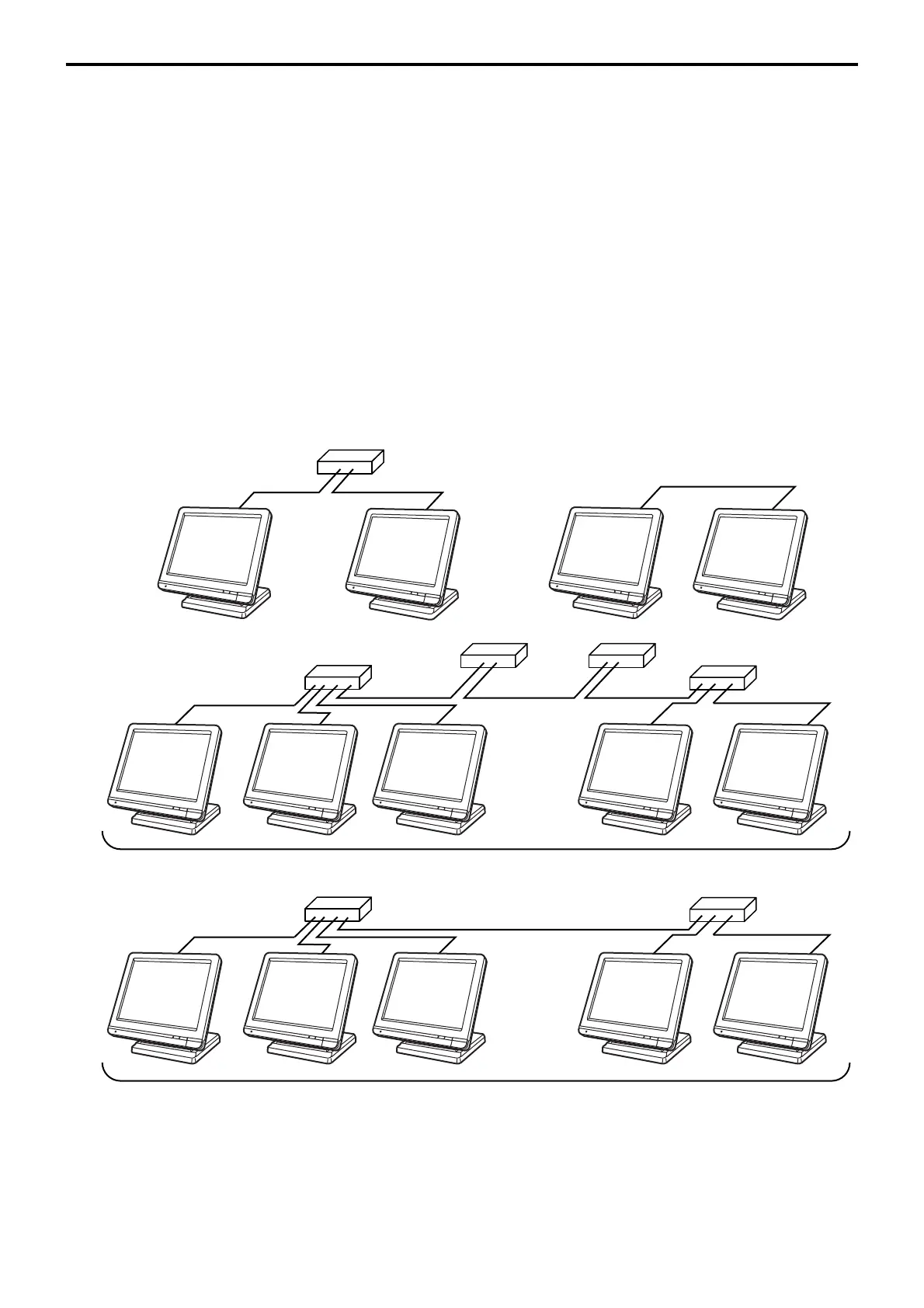

Configuration with Hub
• 10BASE-T
• 100BASE-TX
Terminal to terminal
• 10BASE-T
• 100BASE-TX
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
