— 17 —
J1
PS1
PS2
PS3
PS4
J2
J3
J43
CPU
ALI
ALI
MEMORY SOCET
SYSTEM BIOS
VGA BIOS
J4
J5
J6
J7
J10
J9
J8
J
23
BUS SOCKET
J18
LED1
J16
J25
J13
J15
J14
J17 VGA
J12 VGA
J11 PARALLEL
EXT SERIAL 2
EXT SERIAL 3
EXT SERIAL 4
EXT SERIAL 1
LCD
COMSTRAST
COLOR LCD
MONO LCD
CUSTOMER
DISPLAY
KEYBAORD
CONTROLLER
POWER SUPPLY
TO KEYBOARD
BATTERY
FOR GUS
POWER SUPPLY
HARD DISK DRIVE
FLOPPY DISK DRIVE
PRINTER

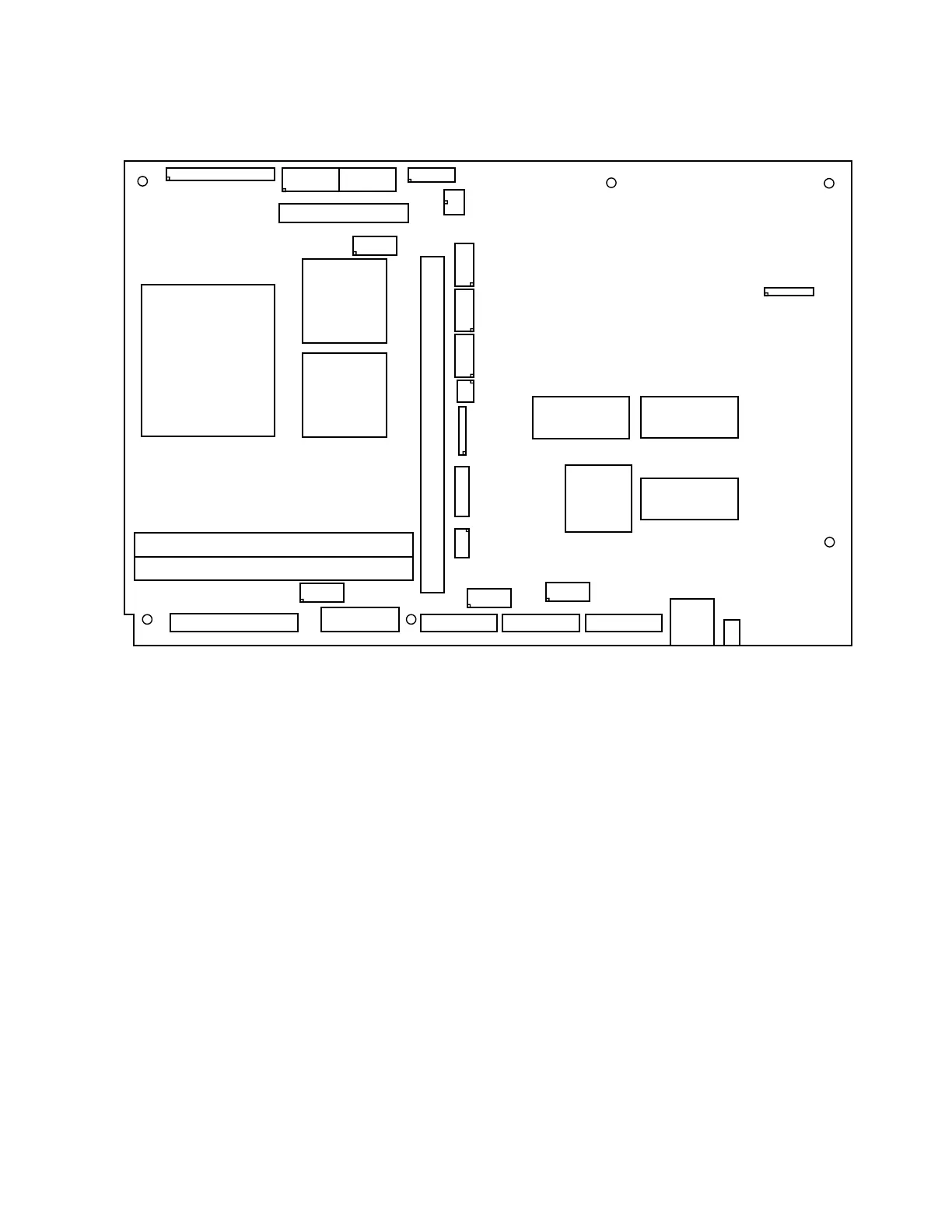

5-3. Motherboard Jumper and Connector position
18
20
Table of Contents
Default Chapter
2
Table of Contents
2
1 Features
3
System Features
3
System Overview
4
System Description
6
2 Specification
9
SA-5000/5100 Unit
9
Sa-5001C/Sa-5002M
9
Hdd
9
Fdd
9
MCR (2 Track)
9
Printer
10
3 Operation List
11
4 Operation Installation
11
Operator LCD Display (SA-5001M, SA-5002C)
11
Adjustment of LCD Dispray
12
Customer Display (SA-5060N, SA-5061D, SA-5062DH)
13
Drawer
16
Barcode Seanner/Reader (User Option)
16
Ethernet
16
AC Voltage Selection (110/220V Switch)
16
5 Circuit Explanation
17
BLOCK DIAGRAM for SA-5000/5100
17
Motherboard Block Diagram
18
Motherboard Jumper and Connector Position
19
Jumper Settings
20
Interface Specifications
23
Memory Map
27
Serial Port Assignments
28
Keycodes
29
Power Supply Circuit
30
Printer Control PCB(SA-5000)
31
Printer Control PCB(SA-5100)
32
Key Control PCB
34
MCR Control PCB
35
6 To Open / Close the Upper Case
36
7 Reset Operation
38
Hard Reset
38
C-MOS Reset
38
Memory Change
38
BIOS Setup
39
8 To Change the Monochrome to Color System
45
9 Diagnostic Program
46
10 Trouble Shooting
52
11 Pcb Layout
53
12 Circuit Diagram
56
13 Parts List
97
