Casio SE-S100 Service Manual

SE-S100 / PCR-T285 / PCR-T295
– 10 –

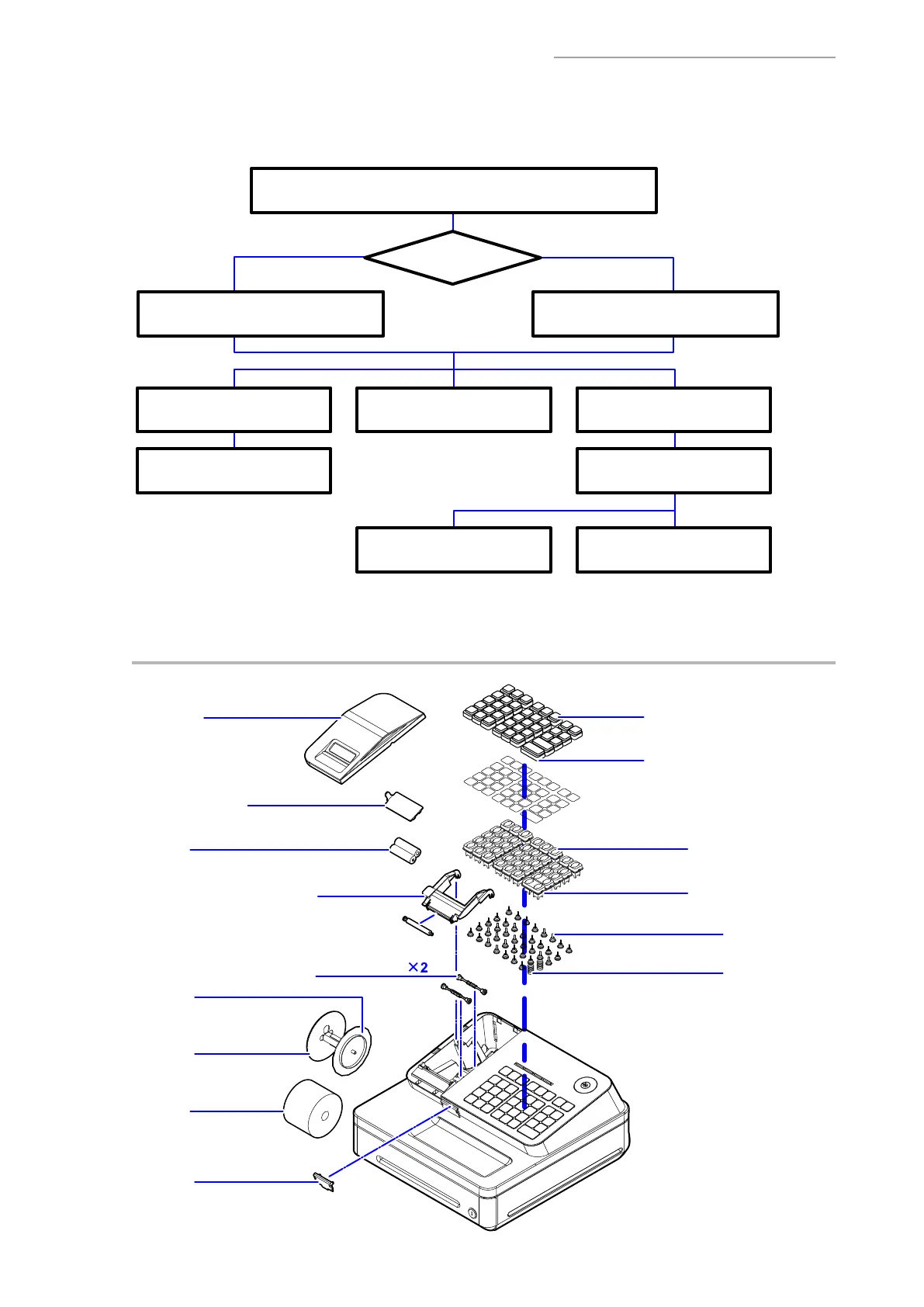

4-2. Flowchart
* See the fl owchart below for the order of disassembling major components.
B. MAIN-UNIT (S-type Drawer) B. MAIN-UNIT (M-type Drawer)
D. PS-ASSY
PS-UNIT, DISPLAY-UNIT
E. MODE KEY
F. MOTER G. PCB ASSY/E286-1
H. MOUNT/PCB
J. KEY BOARD UNITI. PRINTER
A. Replacement of detachable parts of the product
Drawer Type?
S-type M-type
4-3. Procedure
A. Replacement of detachable parts of the product
COVER/PRINTER
COVER/BATTERY
PLATEN ARM
ROLLER/D-P
PULLY/WIND
COVER/SD
SPOOL/PAPER
Memory protection batteries
Paper roll
SPRING/PRESS/A
CAP/L
KEY TOP/L
KEY TOP/S
CAP/S
RUBBER/CONTACT

Casio SE-S100 Specifications

General

Types of payment	Cash
Number of clerks/departments	24
Number of Price Look-Up codes (PLUs)	2000 PLUs
Power source	AC
AC input voltage	100-240 V
Supported paper width	58 mm
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Backlight	Yes
Display digits	10 digits
Second display type	LCD
Display number of lines	2 lines
Display number of characters	20

Weight and Dimensions

Depth	345 mm
Width	326 mm
Height	167 mm
Weight	3300 g
