Casio SE-S100 Service Manual

SE-S100 / PCR-T285 / PCR-T295
– 14 –

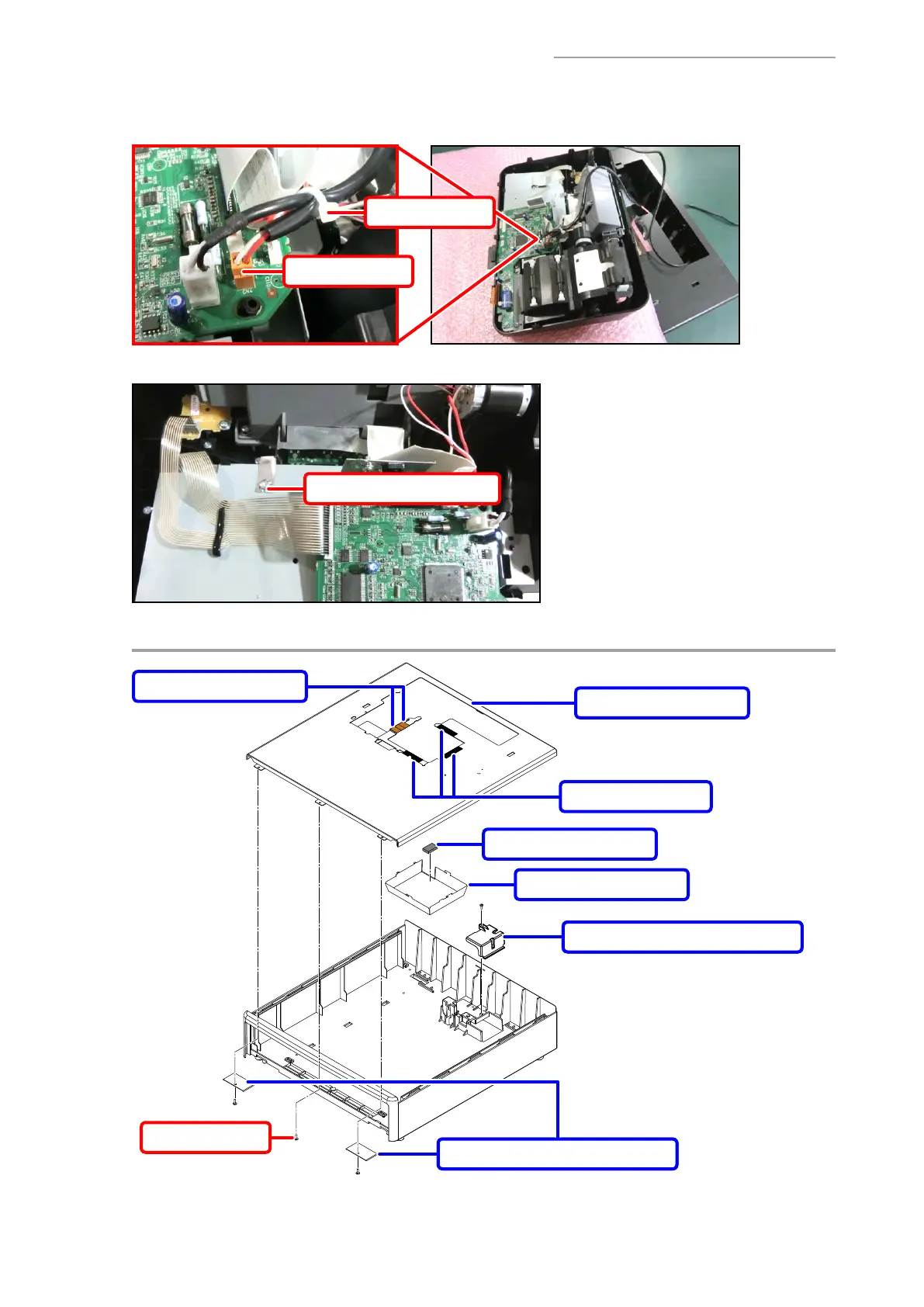

C-6. Remove the cable tie.
C-7. Disconnect the DRAWER connector.
Cable tie
Connector
C-8. Undo one screw.
Screw (S9) + Washer
Y
DRAEWR CASE
COVER/TOP
HOLD/ROM
COVER/PCB
COVER/CORD + Screw (S3)
COVER/CORD + Screw (S3)
Cloth tape/25x50
Copper foil tape/20x40
PLATE + Screw (S3)
COVER/CORD + Screw (S3)
Screw (S3)

Casio SE-S100 Specifications

General

Types of payment	Cash
Number of clerks/departments	24
Number of Price Look-Up codes (PLUs)	2000 PLUs
Power source	AC
AC input voltage	100-240 V
Supported paper width	58 mm
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Backlight	Yes
Display digits	10 digits
Second display type	LCD
Display number of lines	2 lines
Display number of characters	20

Weight and Dimensions

Depth	345 mm
Width	326 mm
Height	167 mm
Weight	3300 g
