Casio SE-S100 Service Manual

SE-S100 / PCR-T285 / PCR-T295
– 15 –

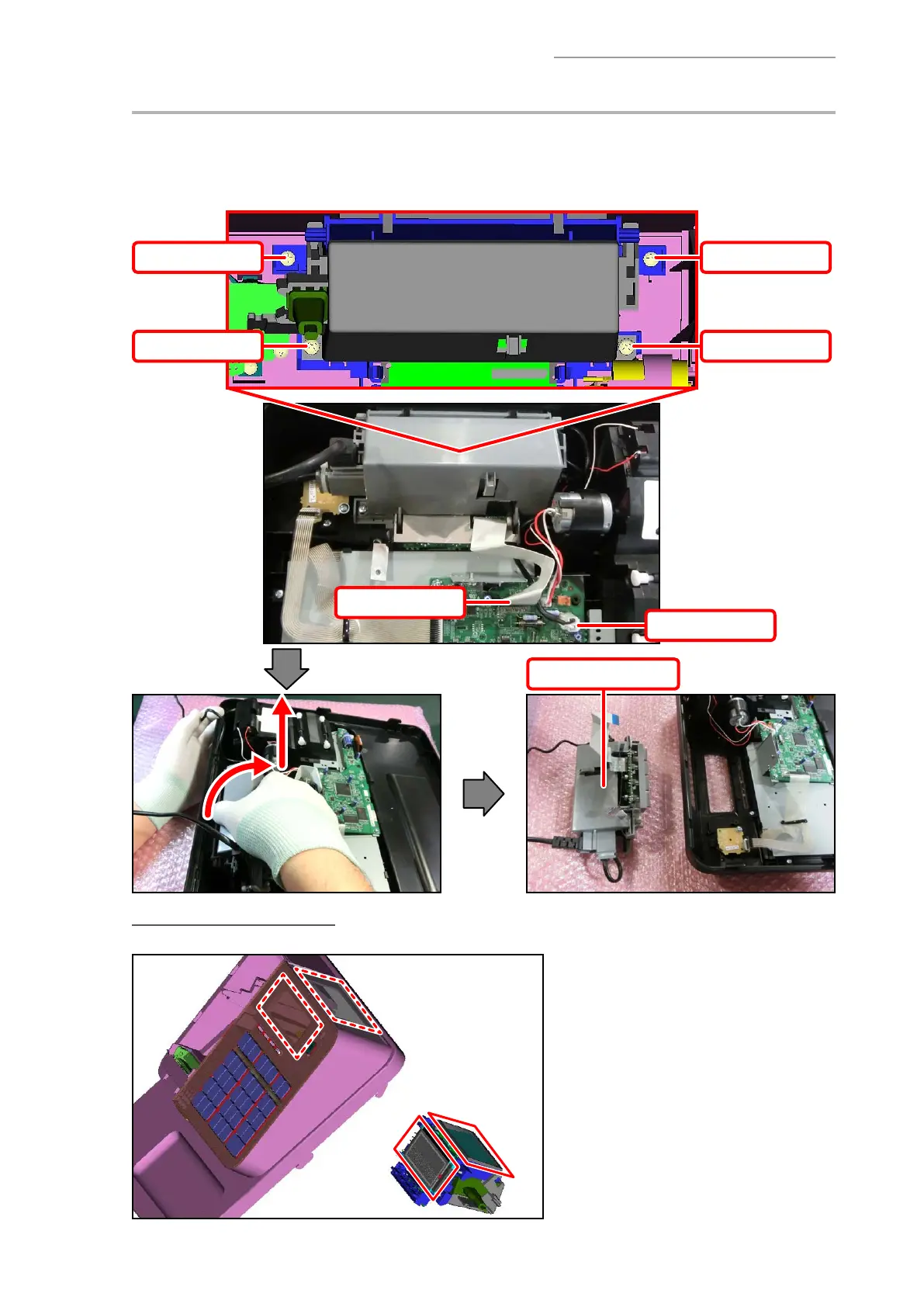

D. PS-ASSY (PS-UNIT, DISPLAY-UNIT)
D-1. Undo four screws.
D-2. Disconnect the connector and FFC.
D-3. Remove the PS-ASSY.
Connector
FFC
PS-ASSY
Screw (S8) Screw (S8)
Screw (S3)Screw (S3)
NOTES ON ASSEMBLY
Be sure that the LCD surfaces are clean.

Casio SE-S100 Specifications

General

Types of payment	Cash
Number of clerks/departments	24
Number of Price Look-Up codes (PLUs)	2000 PLUs
Power source	AC
AC input voltage	100-240 V
Supported paper width	58 mm
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %
Backlight	Yes
Display digits	10 digits
Second display type	LCD
Display number of lines	2 lines
Display number of characters	20

Weight and Dimensions

Depth	345 mm
Width	326 mm
Height	167 mm
Weight	3300 g
