Fiber Optic

If applicable, the Fiber Optic menu allows the user to enter the slope for the fiber optic probe.

Slope

“Slope” allows the user to enter the slope for the fiber optic probe.

1. To set up the Fiber Optic option:

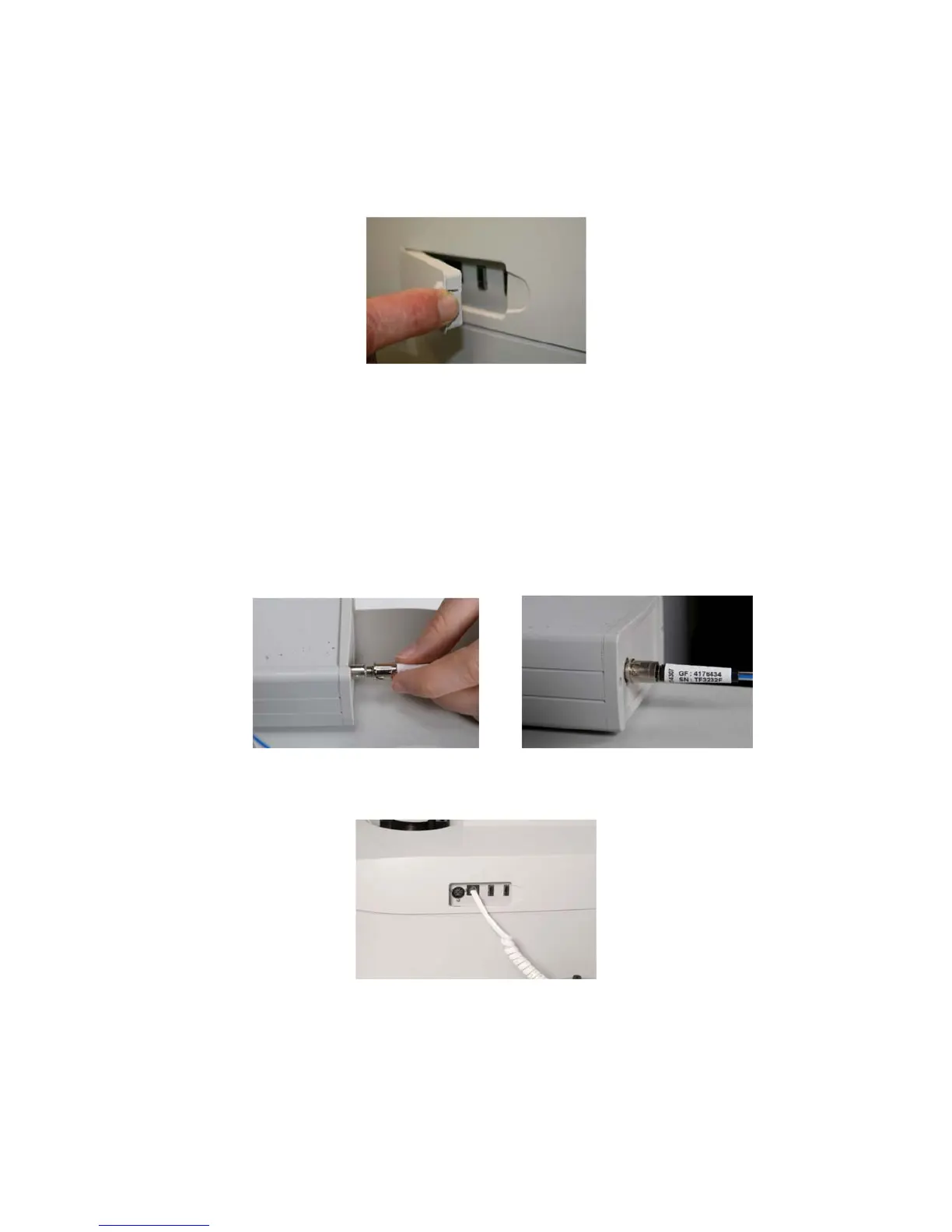

a. Remove the cover from the right side of the Discover. Removal of the cover will expose 2 USB ports, 1

8-pin port, and 1 RJ-11 port.

b. To change the communication cable (if applicable):

1) Remove the gray communications cable (119750) from the fiber optic box by using a flat blade screwdriver to

loosen the two screws and then pull the cable away from the box.

2) Install the white communications cable (277275) to RJ-12 adapter (277225), by pushing in until a click is

audible.

3) Install the adapter to the fiber optic box and tighten the screws finger tight. (Refer to the Fiber Optic

Instructions for further information.)

c. Insert the temperature sensor into the temperature control module. The sensor is attached to the module with a

locking “collar” on the sensor. Push the collar in, rotate it clockwise, and then release it to lock the sensor into the

module.

d. Position the temperature control module on the right side of the Discover SP-D Clinical System (facing the front

of the instrument) and connect the communications into the RJ-11 port on the side of the Discover.
