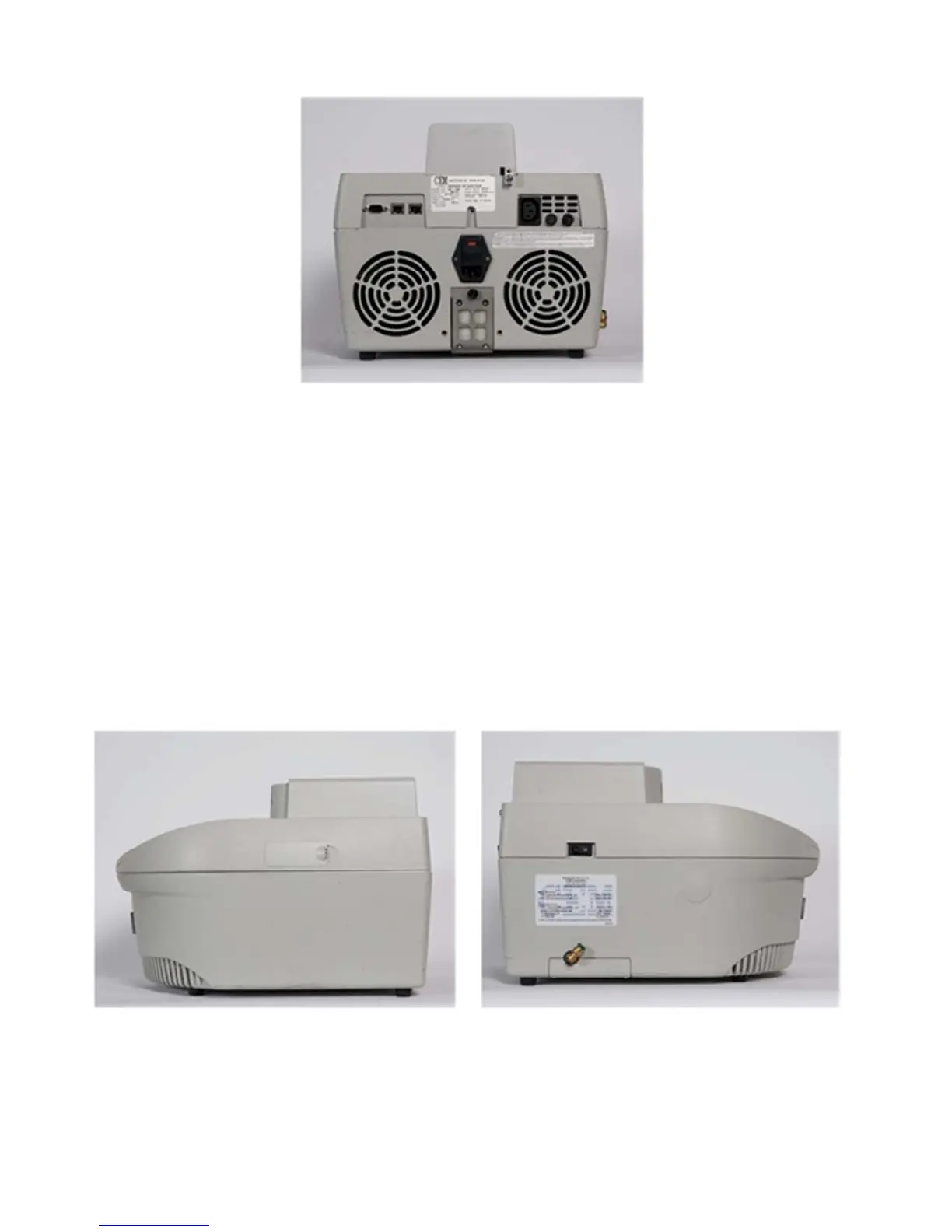

Rear View
Power Cord Receptacle - Receives the female end of the power cord.
Magnetron Cooling Fan - Draws room air past the magnetron for cooling purposes.
Power Supply Cooling Fan - Draws room air past the power supply for cooling purposes.
Fuses - Prevent electrical power overload.
Electrical Connector - Connects autosampler or other peripheral accessory to the reactor
module.
RS232 Port - Allows additional connection and communication.
Spill Tray - Removable collection tray for cavity contents in case of a vessel failure.
Ethernet Port - Allows communication and connection to an external computer for data collection,
a local area network (LAN) or the Internet. (Optional).
Nameplate - Lists the model, serial number, Product Tag, operating voltage, frequency and
current of the instrument.
Side Views
Power Switch - Turns AC power on and off to the instrument.
Cooling Gas Line - Provides a hose connection for the cooling gas source.
7-Pin Connector - Connects pressure measurement device to the main controller board.
USB Ports - Permit installation of USB flash drive to import, export, backup and/or save instrument data.
RJ 11 Port - Permits connection and use of additional accessories.
