A/C System
120
The A/C system is controlled by the
electronic circuit and micro motor
which are designated to determine the
position of inlet and outlet of A/C
system.
The electronic circuit is also designated
to control the following functions
• Mode operation
• A/C compressor clutch operation
• Fan operation
• Exhaust temperature

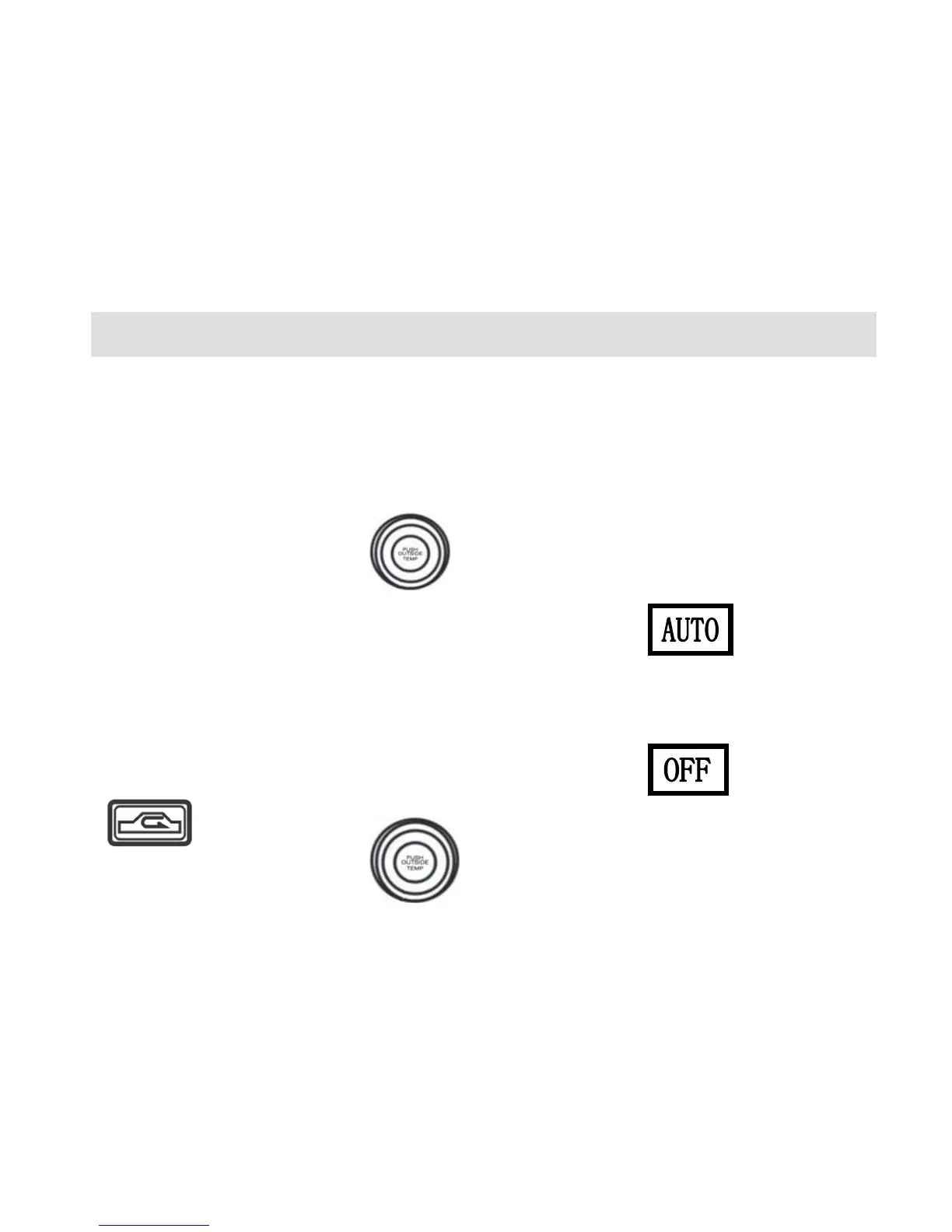

A driver can use the A/C control panel
to select any of the following functions
• Inside temperature
• Blower speed
• Five different operation modes
1. Internal/External cycle
pushbutton
Press down this switch to circulate the
air inside the vehicle. Press up the
switch to introduce the filtered outside
air into the vehicle.
2. Temp regulating knob
This knob is designated to change the
temperature of the blew-out air. If the
knob is turned in the anticlockwise
direction to (the blue area), the air
become cold; and if it is turned in the
clockwise direction to (the red area),
the air become hot.
3. Outside temperature
pushbutton
Press the pushbutton, the A/C panel
display will display the current outside
ambient temperature.
4. AUTO mode pushbutton
Press this switch, the A/C system will
enter into the automatic run mode.
5. OFF pushbutton
Press this switch, the A/C system will
enter into the OFF state, the display
