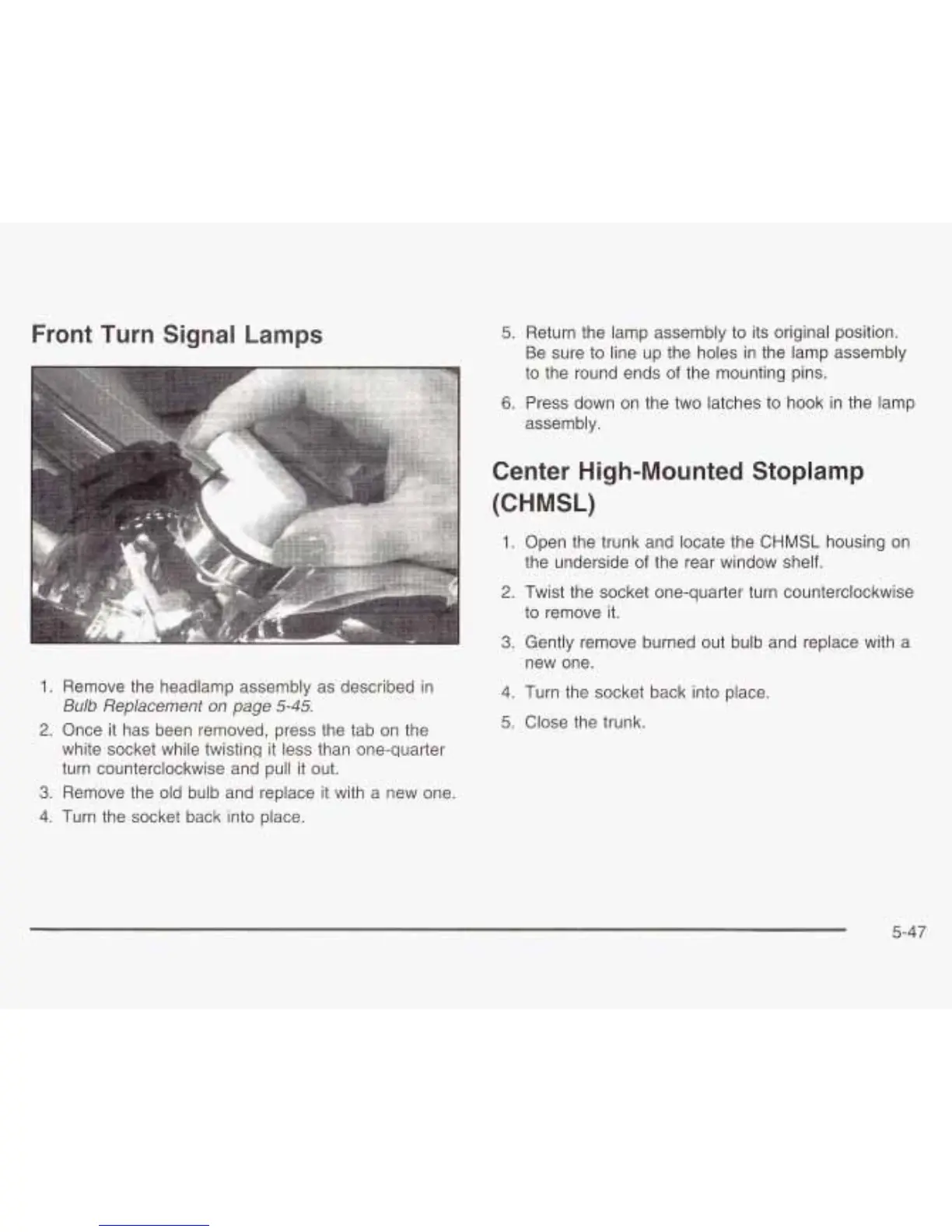

Front Turn Signal Lamps
1.
2.
3.
4.
Remove the headlamp assembly as described in
Bulb
Replacement on
page
5-45.
Once
it
has been removed, press the tab on the
white socket while twisting it less than one-quarter
turn counterclockwise and pull it out.
Remove the old bulb and replace
it
with a new one.
Turn the socket back into place.
5.
Return the lamp assembly
to
its original position.
Be sure
to
line up the holes in the lamp assembly
to
the round ends of the mounting pins.
6.
Press down on the two latches
to
hook in the lamp
assembly.
Center High-Mounted Stoplamp
(CHMSL)
1.
Open the trunk and locate the CHMSL housing on
the underside
of
the rear window shelf.
2.
Twist the socket one-quarter turn counterclockwise
to
remove it.
3.
Gently remove burned out bulb and replace with a
new one.
4. Turn the socket back into place.
5.
Close the trunk.
5-47
