Slot Numbering
The Cisco ASR 1002-HX Router supports one Ethernet port adapter (EPA) in Bay 2.
The following figure shows slot numbering on the Cisco ASR 1002-HX Router.

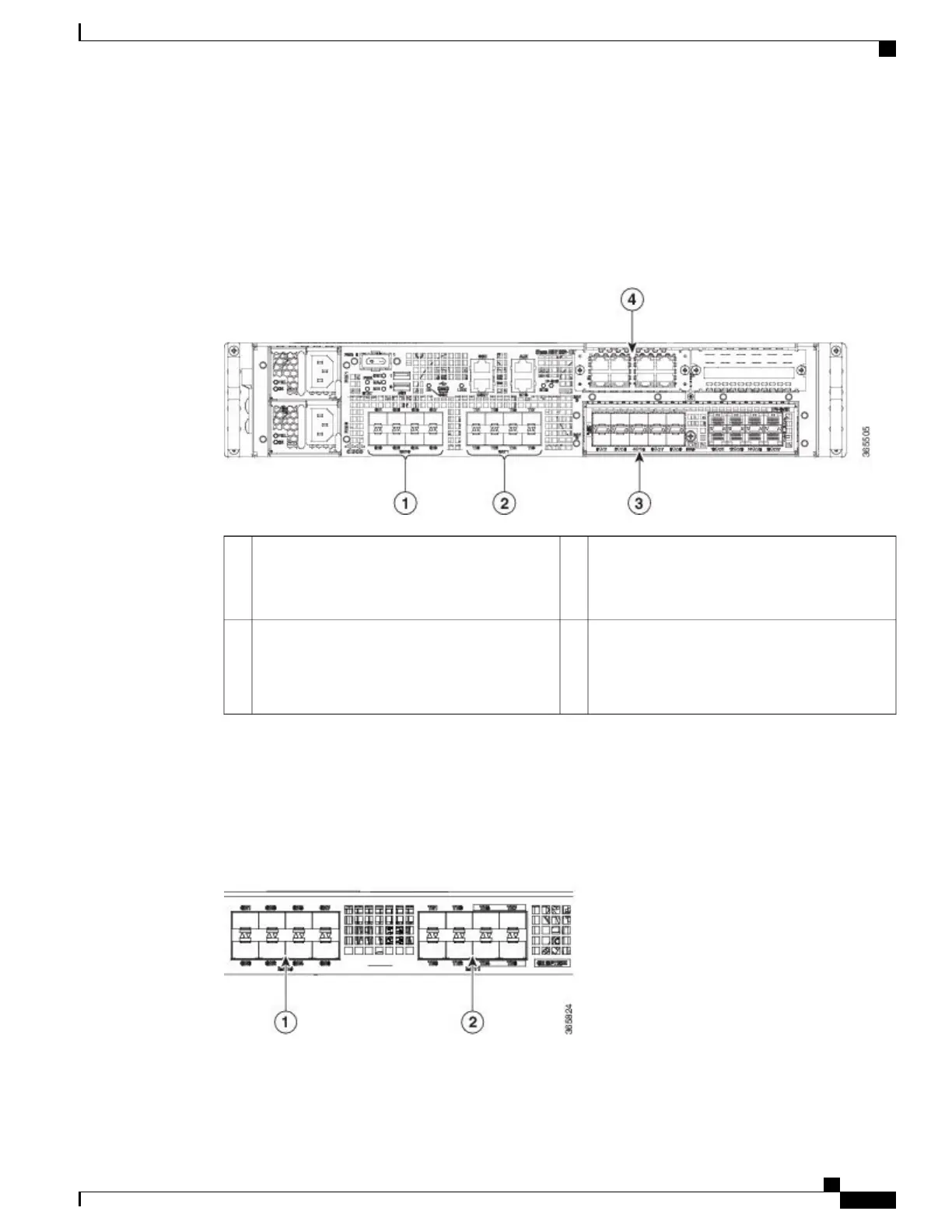

Figure 3: Cisco ASR 1002-HX Router Slot Numbering
Bay 2—Subslot 0/2/n connected to the EPA
interfaces
See Supported EPAs, on page 15.
3
Bay 0—Subslot 0/0/n connected to the built-in
1GE SFP interfaces
1
Bay 3—Subslot 0/3/n connected to the NIM
interfaces
NIMs are not supported in this software
release.
Note
4
Bay 1—Subslot 0/1/n connected to the built-in
10GE SFP+ interfaces
2
Built-In SFP and SFP+ Ports
The following figure shows the port numbering for the built-in ports.
Figure 4: Cisco ASR 1001-HX Router Port Numbering
Cisco ASR 1001-HX Router and Cisco ASR 1002-HX Router Hardware Installation Guide
5
Overview
Front View
