Attaching the Cable Management Bracket
The cable management brackets should be mounted to each rack-mount bracket on the chassis to provide
cable management to both sides of the chassis (parallel with card orientation). These brackets are screw-mounted
to the rack-mount brackets to allow easy installation and removal of cables.
The cable-management brackets for the Cisco ASR 1001-HX Router and Cisco ASR 1002-HX Router contain
one independent cable-management U-type feature with two screws for each bracket.
Make certain that the cable-management bracket "U" feature is facing upwards when you attach it to the
chassis.
Note
Procedure
Step 1
Align the cable-management bracket to the rack-mount bracket on one side of the Cisco ASR 1001-HX Router
or Cisco ASR 1002-HX Router. The cable-management bracket aligns to the top hole of the chassis rack-mount
bracket.
Step 2
Using a Phillips screwdriver, insert one screw through the top screw hole of the cable-management bracket
and into the chassis rack-mount bracket and tighten the screw.
Use the package of screws that came with your chassis containing four screws.Note
The following figures show where to attach the cable-management brackets to the Cisco ASR 1001-HX Router
and Cisco ASR 1002-HX Router.

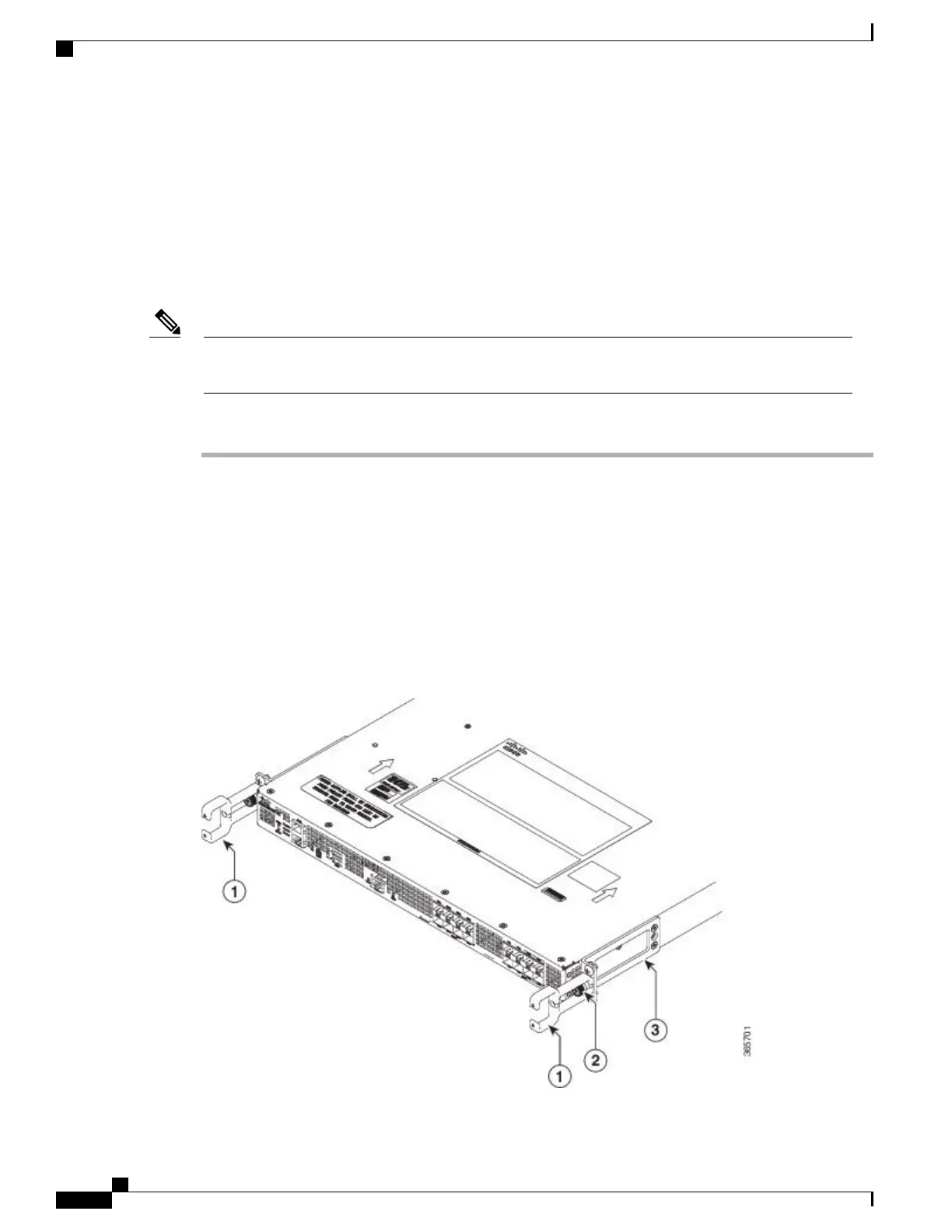

Figure 29: Attaching the Cable-Management Brackets to the Cisco ASR 1001-HX Router
Cisco ASR 1001-HX Router and Cisco ASR 1002-HX Router Hardware Installation Guide
62
Installing the Router
Attaching the Cable Management Bracket
