Ethernet over MPLS
▀ Multi-segment Pseudowire
▄ Cisco ASR 903 Router Design and Deployment Guide
60
OL-30526-01

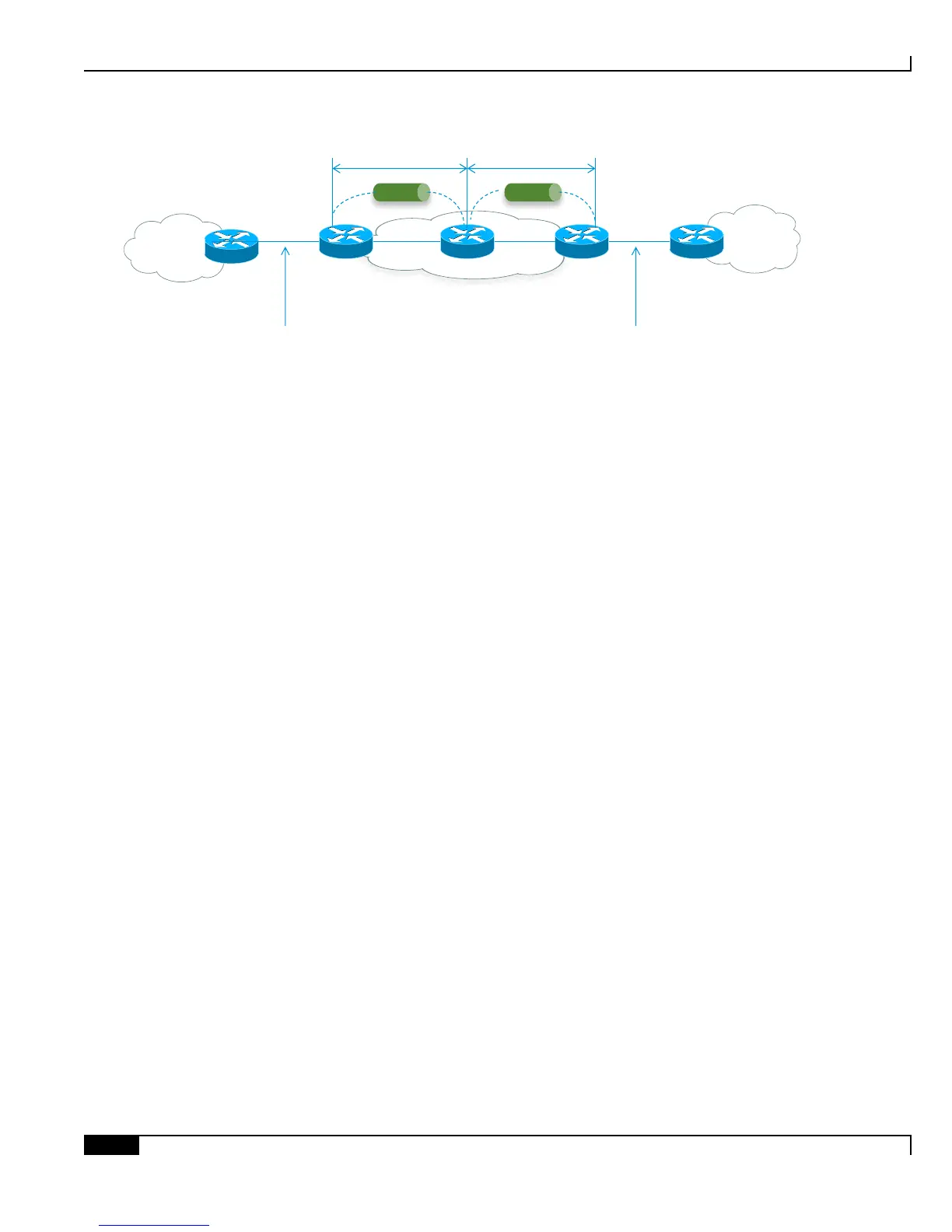

CE1
CE2
PE1
PE2
Ethernet Vlan
Ethernet Vlan
ASR903-P1
PW Segment PW Segment
ASR903-PE1 Configuration (10.10.3.3)
interface GigabitEthernet0/0/4
service instance 2 ethernet
encapsulation dot1q 100 second-dot1q 10
rewrite ingress tag pop 1 symmetric
xconnect 10.10.2.2 1100 encapsulation mpls
ASR903-PE2 Configuration (10.10.4.4)
interface GigabitEthernet0/0/7
service instance 2 ethernet
encapsulation dot1q 100 second-dot1q 10
rewrite ingress tag pop 1 symmetric
xconnect 10.10.2.2 1100 encapsulation mpls
ASR903-P1 Configuration (10.10.2.2)
l2vpn xconnect context 1100
member 10.10.3.3 1100 encapsulation mpls
member 10.10.4.4 1100 encapsulation mpls
Verifying Pseudowire
ASR903-P1# show mpls l2transport vc
Local intf Local circuit Dest address VC ID Status
------------- ------------------------- ----------------- -------- ----------
pw100010 10.10.4.4 1100 10.10.3.3 1100 UP
pw100009 10.10.3.3 1100 10.10.4.4 1100 UP
