Step 2
Connect the memory stick or flash drive to the USB port on the Supervisor Card.

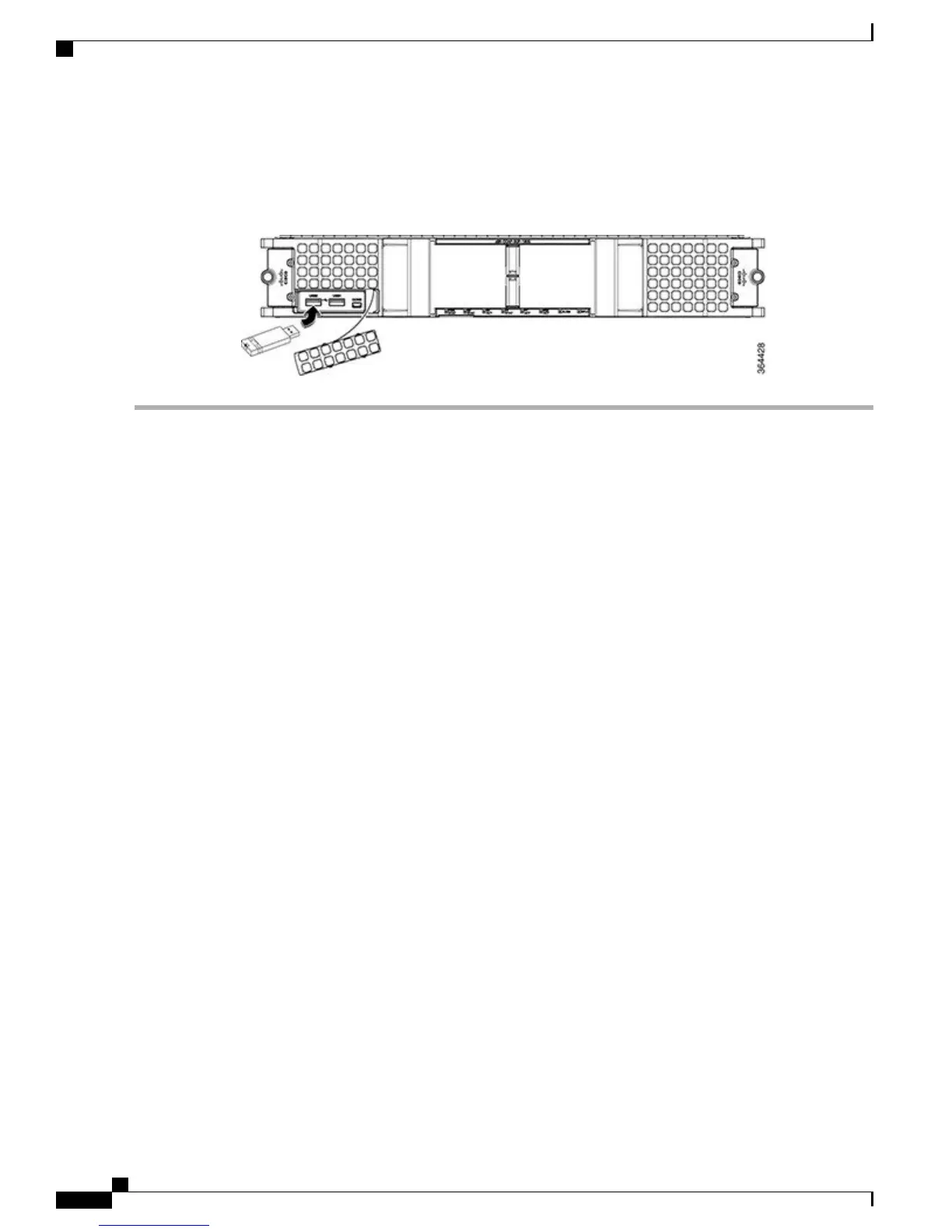

Figure 25: Connecting the USB Drive to the USB Port
Using the Console Port on the Supervisor Card
Before You Begin
•
Install the Supervisor PIC.
•
Install the Supervisor Card.
Restrictions
•
When running a redundant configuration in the chassis, each Supervisor Card or Supervisor PIC must
have a console port connection.
•
The console port on the Supervisor Card is for temporary connections. For permanent console connection,
you must use the port on the Supervisor PIC.
Required Tools and Equipment
•
Console cable (with mini type-B USB connector on one end, and a type-A USB connector on the other
end)
•
Exar XR21V1410 UART with USB interface
•
Cable with type-A USB connector on one end and DB-9 connector on the other end
Cisco Converged Broadband Routers Hardware Installation Guide
28
Installing the Supervisor in the Cisco cBR Chassis
Using the Console Port on the Supervisor Card
