Cisco Unified IP Phone 7962G and 7942G Administration Guide for Cisco Unified Communications Manager 7.0
OL-15483-01
Chapter 3 Setting Up the Cisco Unified IP Phone
Verifying the Phone Startup Process
Caution Use care not to damage wires or pipes located inside the wall when securing screws to wall studs.
Procedure
Step 1 Push in the footstand adjustment button.
Step 2 Adjust the footstand, so it is flat against the back of the phone.
Step 3 Insert two screws into a wall stud, matching them to the two screw holes on the back of the footstand.
The keyholes fit standard phone jack mounts.
Step 4 Hang the phone on the wall.

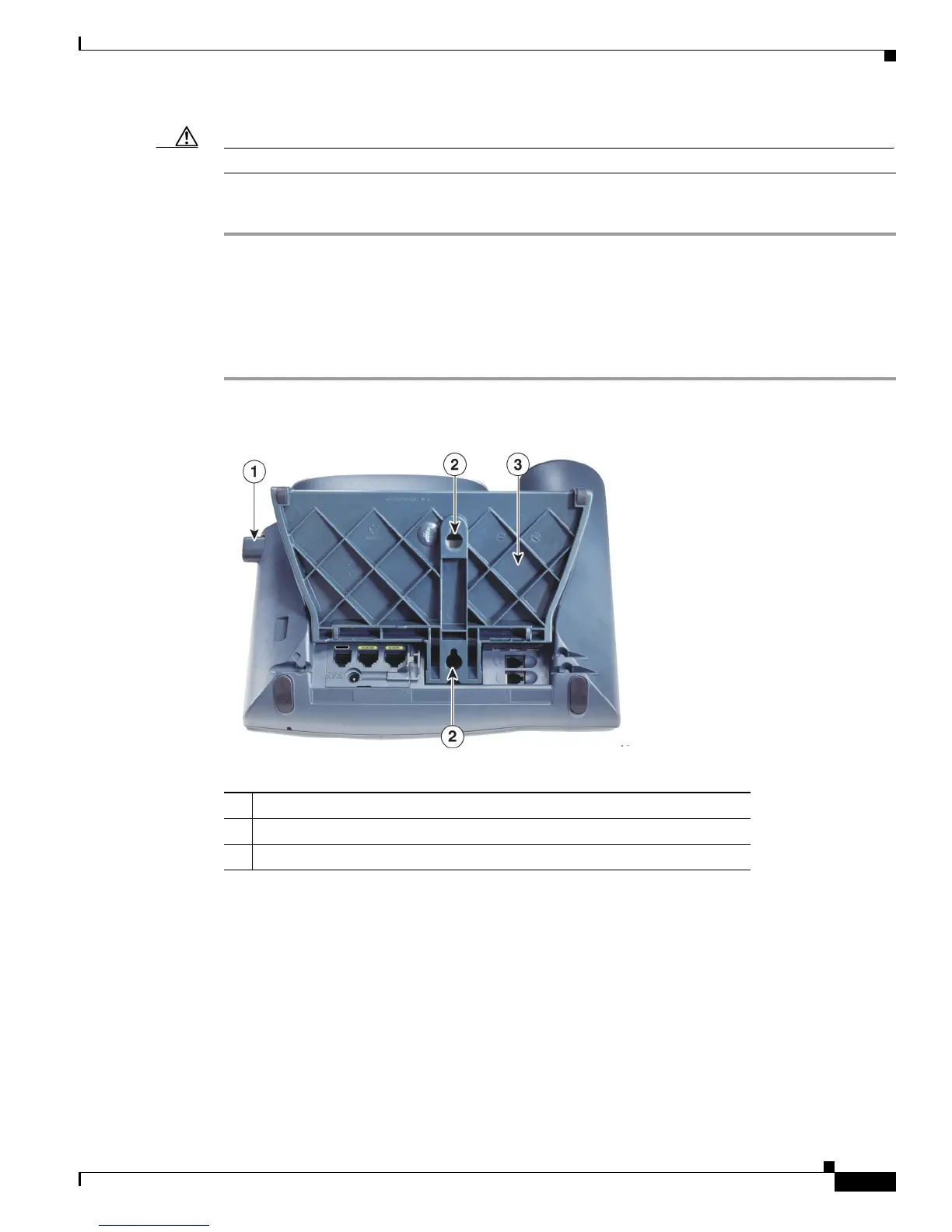

Figure 3-3 Parts Used in Wall Mounting the Cisco Unified IP Phone
Verifying the Phone Startup Process
After the Cisco Unified IP Phone has power connected to it, the phone begins its startup process by
cycling through the following steps.
1. These buttons flash on and off in sequence:
– Headset (only if the handset is off-hook when the phone powers up. Hang up the handset within
3 seconds to have the phone launch its secondary load. To continue with the primary load, leave
the handset off-hook.)
– Mute
1 Footstand adjustment button—Raises and lowers adjustment plate
2 Wall mounting screw holes
3 Adjustment plate—Raises and lowers phone vertically
AUX
137542
