a) Align the rear of the inner rails that are attached to the chassis sides with the front ends of the empty slide rails on
the rack.
b) Push the inner rails into the slide rails on the rack until they stop at the internal stops.
c) Slide the release clip toward the rear on both inner rails, and then continue pushing the chassis into the rack until the
mounting brackets meet the front of the slide rail.

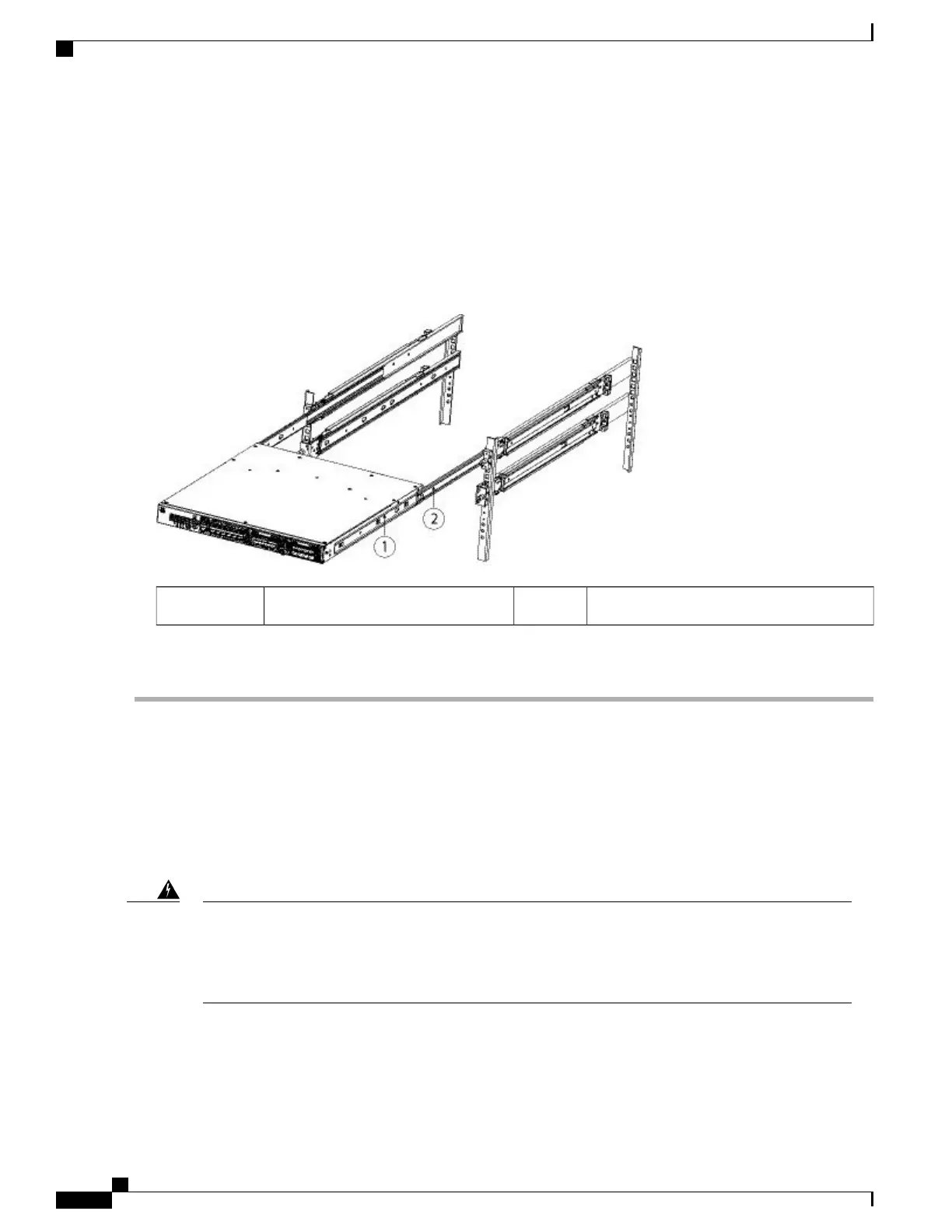

Figure 18: Inner Rail Release Clip
Inner rail attached to chassis2Inner rail release clip1
Step 6
Use the captive screws on the front of the mounting brackets to fully secure the chassis to the rack.
What to Do Next
Continue with Ground the Chassis, on page 38 and Connect Cables, Turn on Power, and Verify Connectivity,
on page 39.
Ground the Chassis
Statement 1024—Ground Conductor
This equipment must be grounded. Never defeat the ground conductor or operate the equipment in the
absence of a suitably installed ground conductor. Contact the appropriate electrical inspection authority
or an electrician if you are uncertain that suitable grounding is available.
Warning
Cisco Firepower 2100 Series Hardware Installation Guide
38
Mount and Connect
Ground the Chassis
