3-8
Cisco PIX Security Appliance Hardware Installation Guide
78-15170-03
Chapter 3 PIX 506/506E
Replacing a Lithium Battery

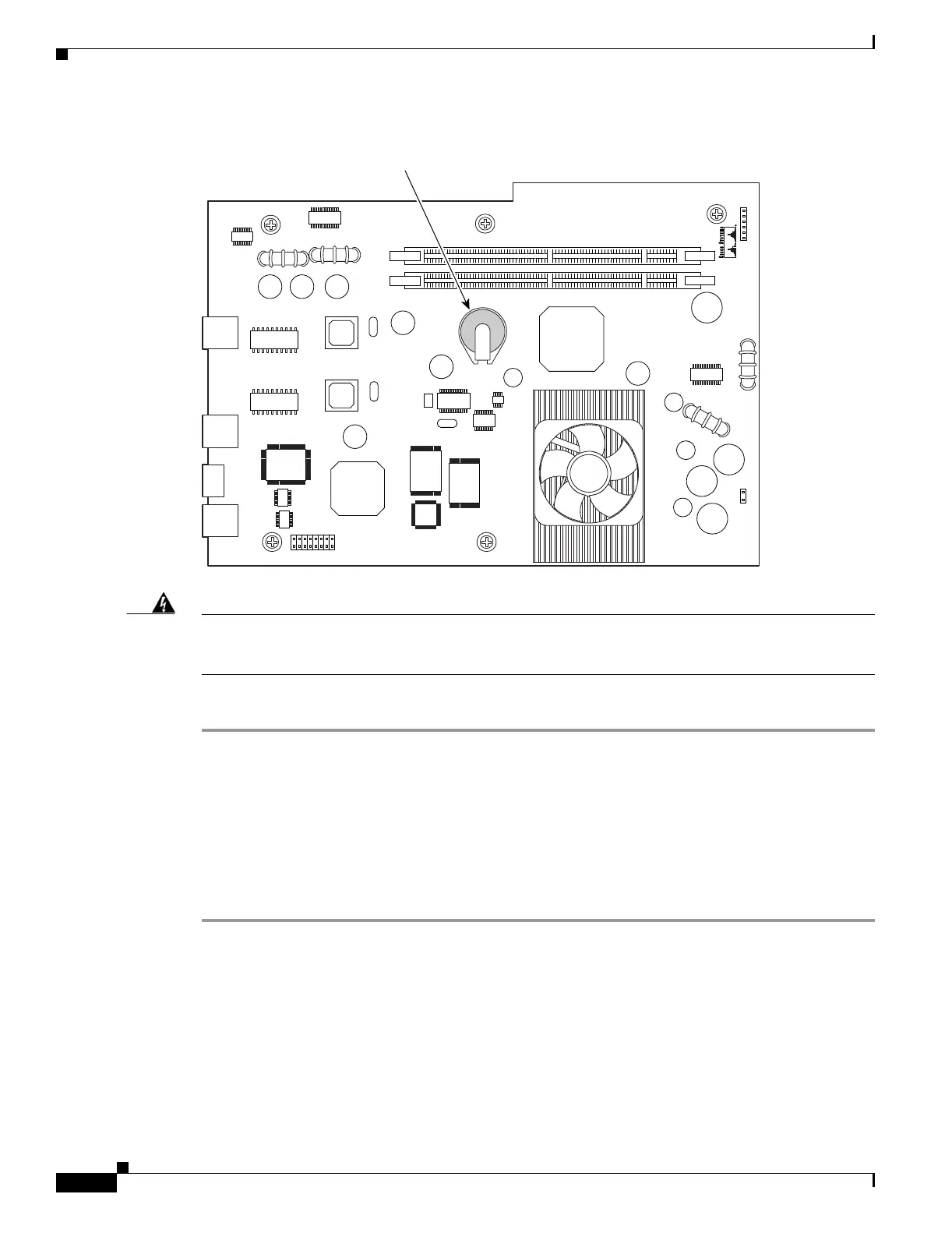

Figure 3-9 PIX 506/506E Lithium Battery Location
Warning Danger of explosion exists if the lithium battery is incorrectly replaced. Replace only with the same
or equivalent type recommended by the manufacturer. Dispose of used batteries according to the
manufacturer's instructions.
To replace the lithium battery, perform the following steps:
Step 1 Remove the chassis cover as described in the “Removing the Chassis Cover” section on page 3-6.
Step 2 Use a flathead screwdriver to slide the battery out of the metal clip on the circuit board (see Figure 3-9).
Step 3 Place the used battery aside and replace it with a new battery. Install the new battery writing side up.
Step 4 The battery snaps into place as you slide it into the battery slot.
Step 5 Replace the chassis cover by lining up the cover tabs with the bottom panel tabs, and sliding the chassis
cover back into the side and front panel slots on the chassis.
Step 6 Replace the chassis cover as described in the “Replacing the Chassis Cover” section on page 3-7.
119680
Battery
Front
