Chapter 2: Getting to Know the Switch
The Front Panel
24-Port 10/100 + 2-Port Gigabit Switch with Webview and Power over Ethernet
Chapter 2: Getting to Know the Switch
The Front Panel
The Switch's LEDs and ports are located on the front panel.
LEDs
System A green LED indicates that power is being supplied to the Switch. A solid, amber
LED indicates that the Switch’s power-on-self-test (POST) is in progress, but
when this blinks amber that indicates that the POST has failed.
Link/Act A green LED indicates a functional network link through the corresponding port
(1 through 26) with an attached device. A blinking LED indicates that the Switch
is actively sending or receiving data over that port.
PoE A green LED indicates a powered device is connected to the corresponding port
(1 through 24).
Speed A green LED indicates a link to the corresponding port (Gigabit ports 25 and 26) is
operating at 1000Mbps. No light indicates either no link or a link operating at a
speed of 10/100Mbps.

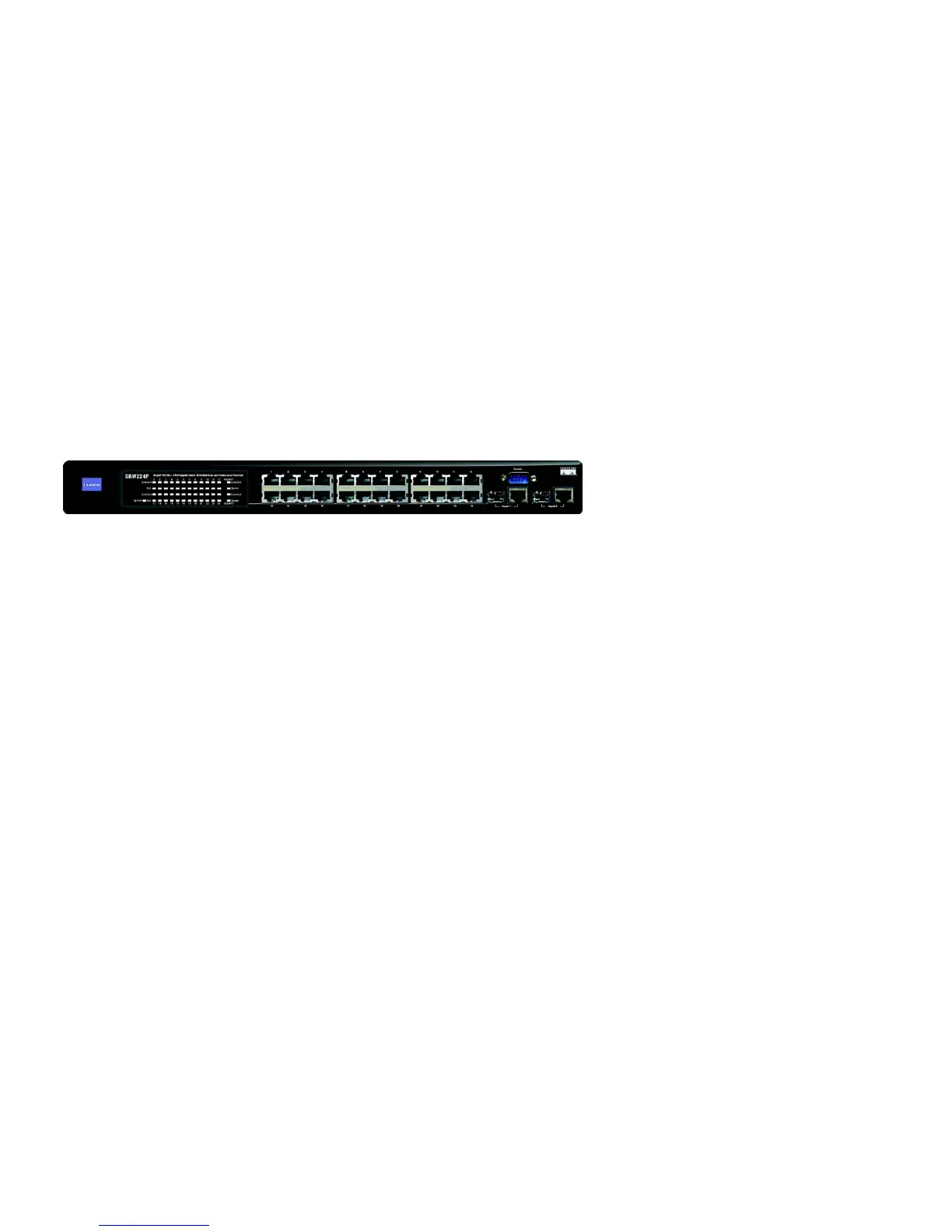

Figure 2-1: Front Panel
