Chapter 5: Configuring the Switch through the Web Utility
QoS
24-Port 10/100 + 2-Port Gigabit Switch with Webview and Power over Ethernet
ACL Priority
Use ACL CoS Mapping to set the output queue for packets matching an ACL rule as shown in the following table.
Note that the specified CoS value is only used to map the matching packet to an output queue; it is not written to
the packet itself.
Port. Port identifier.
Name. Name of ACL.
Type. Type of ACL (IP or MAC).
CoS Priority. CoS value used for packets matching an IP ACL rule. (Range: 0-7)
ACL CoS Priority Mapping. Displays the configured information.
Select an ACL rule, specify a CoS priority, then click Add.
To remove an ACL CoS priority mapping click the Remove button in the row of the entry you wish to remove.
Table 2:
Queue 01 23
Priority 1,2 0,3 4,5 6,7

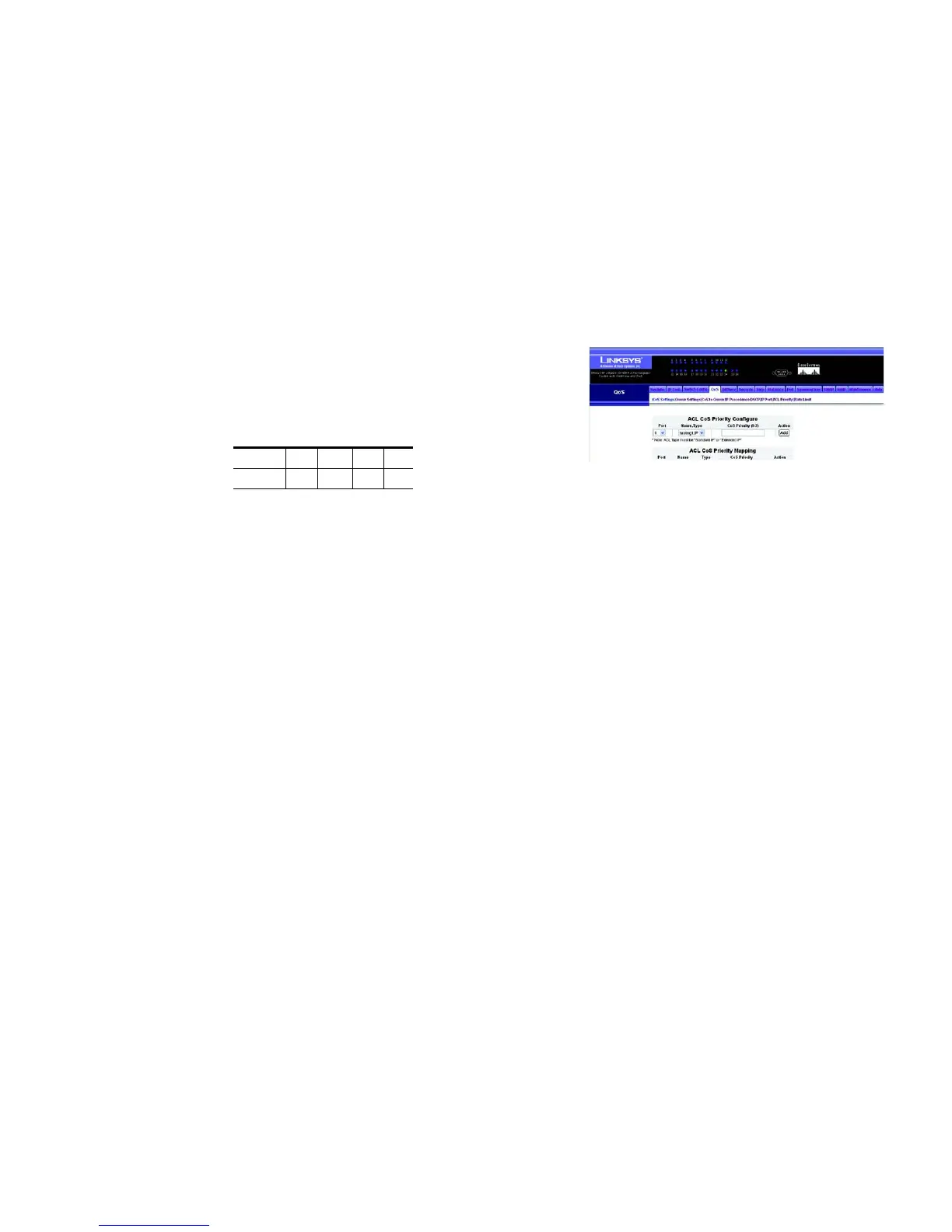

Figure 5-30: QoS - ACL Priority
