Cisco UCS B200 M3 Blade Server
58
SUPPLEMENTAL MATERIAL

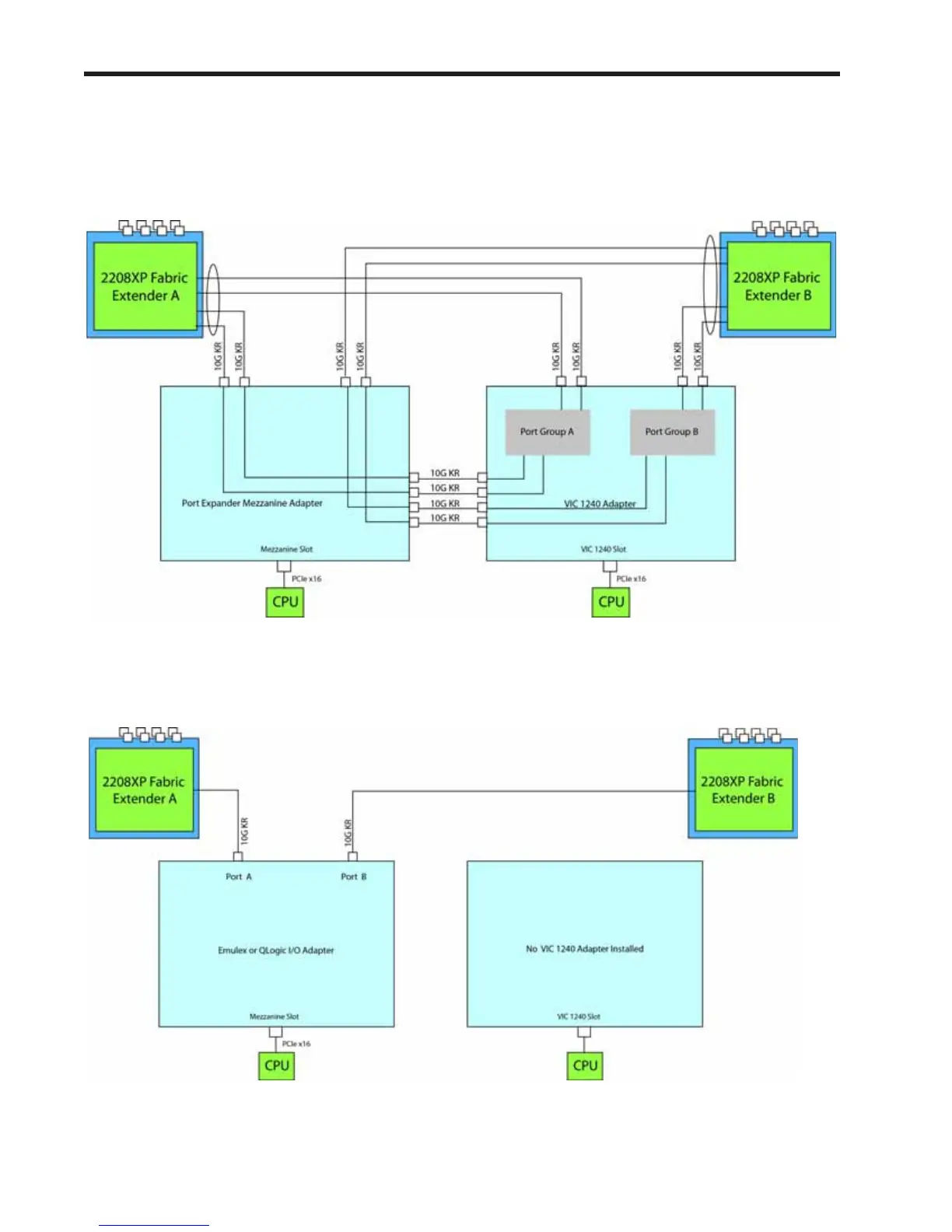

In Figure 18, two ports from the VIC 1240 are channeled to 2208XP Fabric Extender A and two are
channeled to 2208XP Fabric Extender B. The Port Expander Card for VIC 1240 installed in the mezzanine slot
acts as a pass-through device to channel two ports to each of the Fabric Extenders. The result is 40 Gbps of
bandwidth to each Fabric Extender.
Figure 18 Option 4 - VIC 1240 and Port Expander Card for VIC 1240 to UCS 2208XP Fabric Extender
In Figure 19, there is no VIC 1240 adapter installed. In this case, a network adapter must be installed in the
mezzanine slot. Port A and B of the mezzanine adapter connect to the Fabric Extenders, providing 10 Gbps
per port.
Figure 19 Option 5 - Emulex or QLogic I/O Adapter to UCS 2208XP Fabric Extender (no VIC 1240 adapter)

Cisco UCS B200 M3 Specifications

General

System bus rate	8 GT/s
Processor family	Intel
Processor socket	LGA 2011 (Socket R)
Intel Xeon series	E5-2600
Motherboard chipset	Intel C600
Compatible processor series	Intel® Xeon®
Number of processors supported	2
ECC	Yes
Memory form factor	240-pin DIMM
Number of DIMM slots	24
Supported memory types	DDR3-SDRAM
Maximum internal memory	768 GB
RAID levels	0, 1
Storage drive sizes supported	2.5 \
Supported storage drive interfaces	Serial Attached SCSI (SAS), Serial ATA III
USB 2.0 ports quantity	0
On-board graphics card model	Matrox G200
Chassis type	-
Product color	Silver
Storage temperature (T-T)	-40 - 65 °C
Operating temperature (T-T)	10 - 35 °C
Operating relative humidity (H-H)	5 - 93 %
Harmonized System (HS) code	84714100

Weight and Dimensions

Depth	620 mm
Width	203 mm
Height	50 mm
Weight	4360 g
