49
——
3.4 Adjusting Media Sensor Positions
This section describes the procedure to adjust sensors when loading media. Transmis-
sive and reective sensors can be used for the media sensors.
The printer comes from the factory equipped with a transmissive sensor. The media
sensor must be replaced with a reective sensor for certain types of media.
Refer to 7.1 Sensor Adjustment Mode
Range of Paper Sensor Adjustment

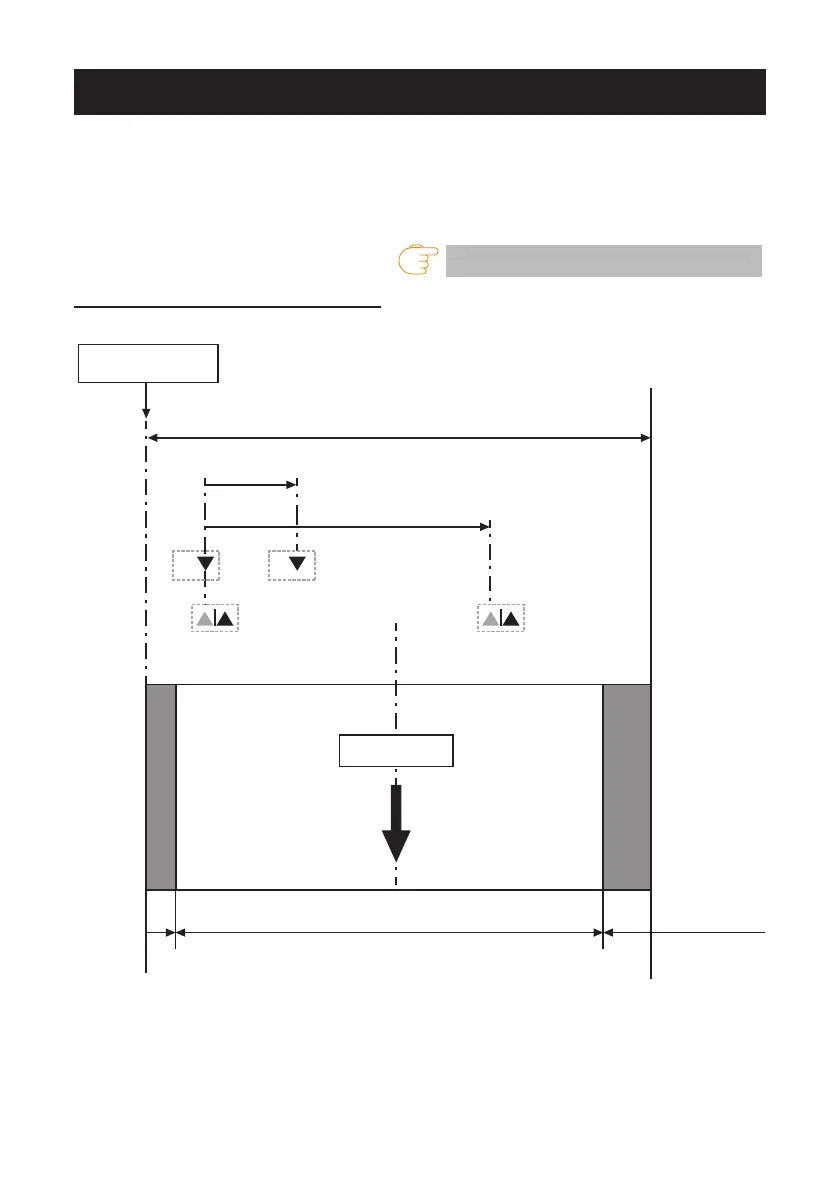

The following gure illustrates the range of media sensor adjustment.
Left fixed media guide
118 mm (Max. media width)
(
Moval scope of transport sensor
)
6.0 to 26.0 mm
(
Moval scope of reflective sensor
)
6.0 to 74.0 mm
Dimension of
media feed
2.5 mm
CL-E321:11.5 mm
CL-E331:10.5 mm
Right margin
CL-E321:104.0 mm
CL-E331:105.0 mm
Printable area
To Next Page
