Citizen CLP-521 User Manual

2
Printer Operation
30

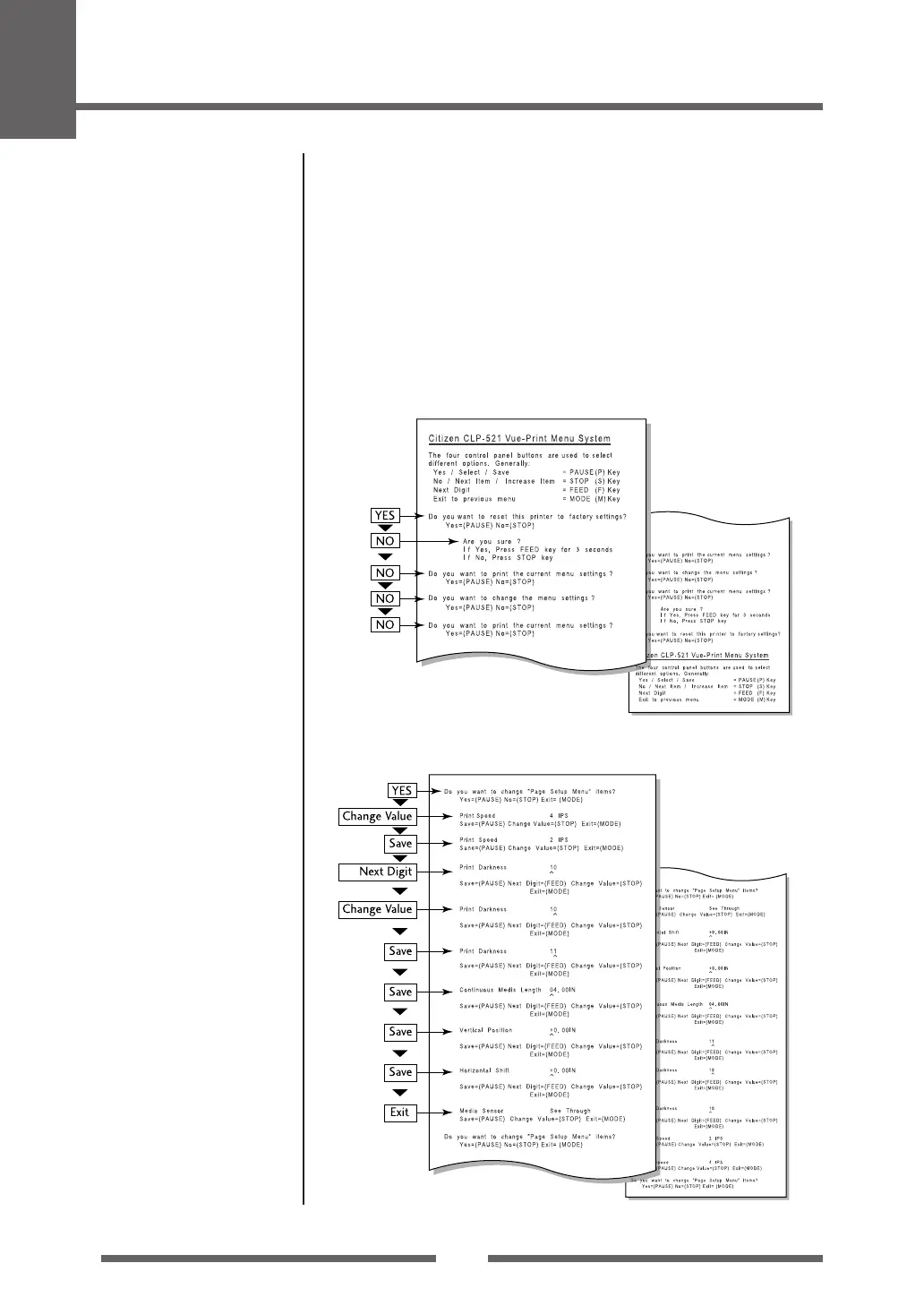

Example of printing during sub menu setting
Example of printing during top menu setting
Shown below is a sample menu output from the CLP-521 VuePrint menu
system.
This particular example is changing the print speed and print darkness then
continues through the remainder of the “Print Setup” menu.
The actual output from the printer is "vertically reversed" due to the way the
printer outputs the menu options. Please look at the example below to see
how the output changes.
Menu Setting Flow Chart
(p.28)
Menu Setting Flow Chart
(p.28)
Mode Settings

Citizen CLP-521 Specifications

General

Print technology	Direct thermal
USB port	No
RS-232 interface	Yes
Optional connectivity	Ethernet
USB 1.1 ports quantity	1
USB 2.0 ports quantity	0
Connectivity technology	Wired
Power requirements	100 - 240V, 50 / 60Hz
Compatible operating systems	Windows 2000/XP
Flash memory	2 MB
Certification	UL, C-UL, FCC: class A, CCC, CE Marking
Internal memory	8 MB
Number of fonts	2
Built-in barcodes	PDF417, UPC-A, UPC-E
Built-in processor	32 Bit RISC
Mean cycles between failures (MCBF)	1000
Core diameter	25.4 mm
Media thickness	0.0635 - 0.254 mm
Maximum label width	104 mm
Maximum label length	812 m
Maximum roll diameter	127 mm
Supported paper width	19.5 - 118 mm

Weight and Dimensions

Depth	289 mm
Width	231 mm
Height	186 mm
