Printer Adjustments
38

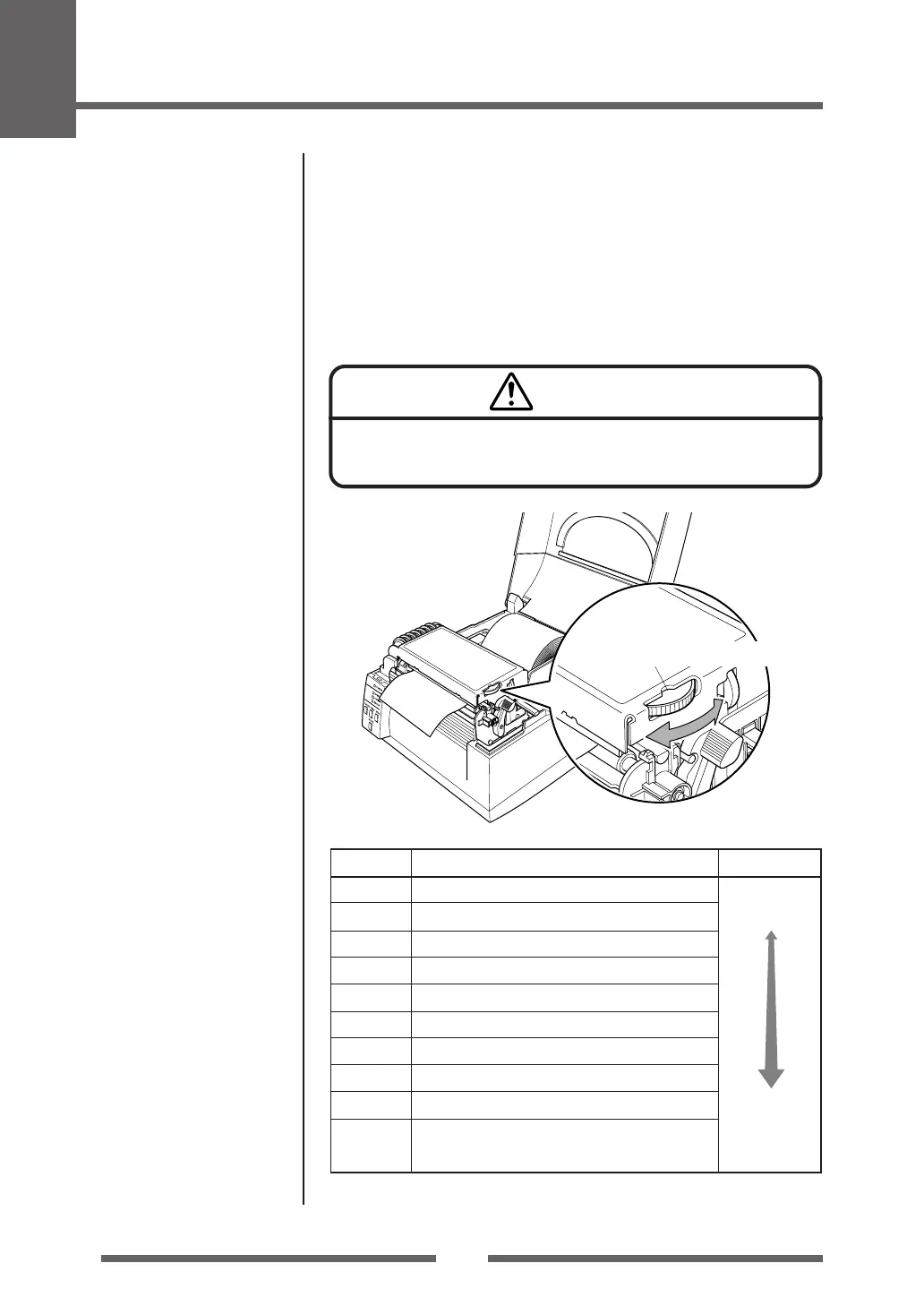

Media Width Adjustment
Caution
When using narrow media, be sure to do this adjustment. (If you do not,
the head may be damaged by jamming, etc.)
9
Media width adjustment dial
The head pressure varies according to the width of the media being printed.
The head pressure balance must be adjusted according to media width so
that constant head pressure is applied to the head. With this printer, it can
be adjusted easily by turning the media width adjustment dial.
If the printing is blurred or lightly printed on one side or the media moves in
a zigzag pattern adjust the head pressure balance.
Dial position Media width mm (inches) Head pressure
0 19.5 to 23.0mm (0.77 to 0.90)
1 23.0 to 30.0mm (0.90 to 1.18) Low
2 30.0 to 39.0mm (1.18 to 1.53)
3 39.0 to 49.0mm (1.53 to 1.92)
4 49.0 to 62.0mm (1.92 to 2.44)
5 62.0 to 76.0mm (2.44 to 2.99)
6 76.0 to 88.0mm (2.99 to 3.46)
7 88.0 to 99.0mm (3.46 to 3.89)
8 99.0 to 108mm (3.89 to 4.25) High
9 108 to 118mm (4.25 to 4.65)
(setting when shipped)
The following values are criteria.
Media Setting (p.22)

Citizen CLP-521 Specifications

General

Print technology	Direct thermal
USB port	No
RS-232 interface	Yes
Optional connectivity	Ethernet
USB 1.1 ports quantity	1
USB 2.0 ports quantity	0
Connectivity technology	Wired
Power requirements	100 - 240V, 50 / 60Hz
Compatible operating systems	Windows 2000/XP
Flash memory	2 MB
Certification	UL, C-UL, FCC: class A, CCC, CE Marking
Internal memory	8 MB
Number of fonts	2
Built-in barcodes	PDF417, UPC-A, UPC-E
Built-in processor	32 Bit RISC
Mean cycles between failures (MCBF)	1000
Core diameter	25.4 mm
Media thickness	0.0635 - 0.254 mm
Maximum label width	104 mm
Maximum label length	812 m
Maximum roll diameter	127 mm
Supported paper width	19.5 - 118 mm

Weight and Dimensions

Depth	289 mm
Width	231 mm
Height	186 mm
