Citizen CLP-521 User Manual

35
Printer Adjustments

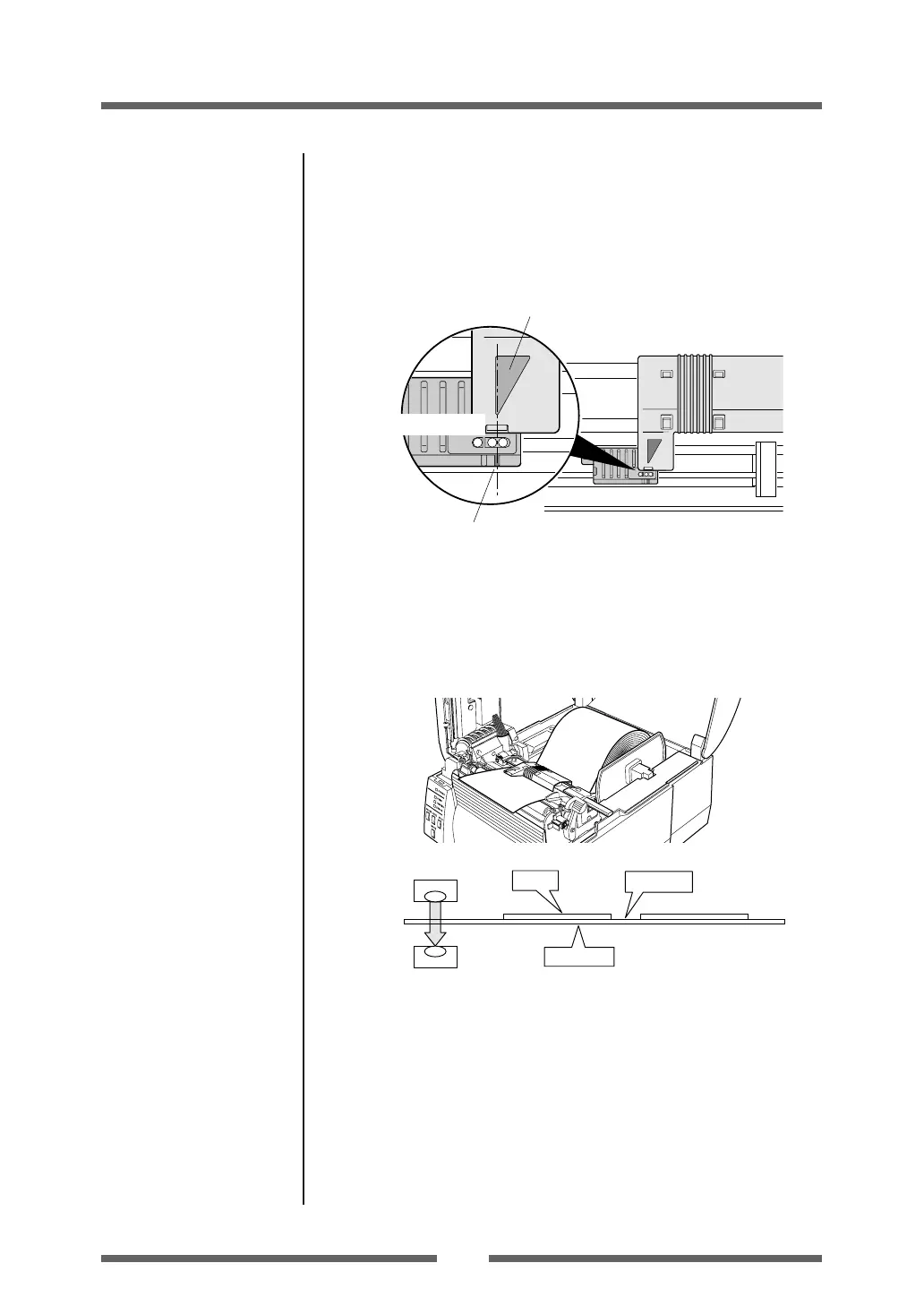

Adjusting the Transparent sensor
1. Open the printhead and close the sensor arm, then align the
positions of the markers on the upper sensor and the bottom
sensor.
Upper sensor
Bottom sensor
Transparent sensor marker
Upper sensor marker
Alignment of markers
4. If the PAUSE key is pushed while the MODE/REPEAT key is
pressed, the PRINT LED goes off, after the CONDITION LED
switches from lit to rapid flashing, media feeding starts, and the
sensor is automatically adjusted.
5. If automatic adjustment stops normally, the PRINT LED and
CONDITION LED return to their original status. If it stops
abnormally (adjustment impossible), the CONDITION LED and
ERROR LED flash.
6. If the STOP key is pushed, it exits sensor adjustment mode.
2. Select the transparent sensor, and open the sensor arm.
3. Install only the liner media (label backing paper) with the label
media removed so that it will pass between the platen roller and
the media sensor. (Be careful that media with black marks does
not pass the media sensor.) Then close the sensor arm and the
printhead.
Label
Liner media
Media gap
Bottom sensor
Upper sensor
Media Setting (p.23)
Sensor Adjustments
Sensor Selection Method
(Transparent ↔ Reflective)
(p.34)

Citizen CLP-521 Specifications

General

Print technology	Direct thermal
USB port	No
RS-232 interface	Yes
Optional connectivity	Ethernet
USB 1.1 ports quantity	1
USB 2.0 ports quantity	0
Connectivity technology	Wired
Power requirements	100 - 240V, 50 / 60Hz
Compatible operating systems	Windows 2000/XP
Flash memory	2 MB
Certification	UL, C-UL, FCC: class A, CCC, CE Marking
Internal memory	8 MB
Number of fonts	2
Built-in barcodes	PDF417, UPC-A, UPC-E
Built-in processor	32 Bit RISC
Mean cycles between failures (MCBF)	1000
Core diameter	25.4 mm
Media thickness	0.0635 - 0.254 mm
Maximum label width	104 mm
Maximum label length	812 m
Maximum roll diameter	127 mm
Supported paper width	19.5 - 118 mm

Weight and Dimensions

Depth	289 mm
Width	231 mm
Height	186 mm
