Appendixes

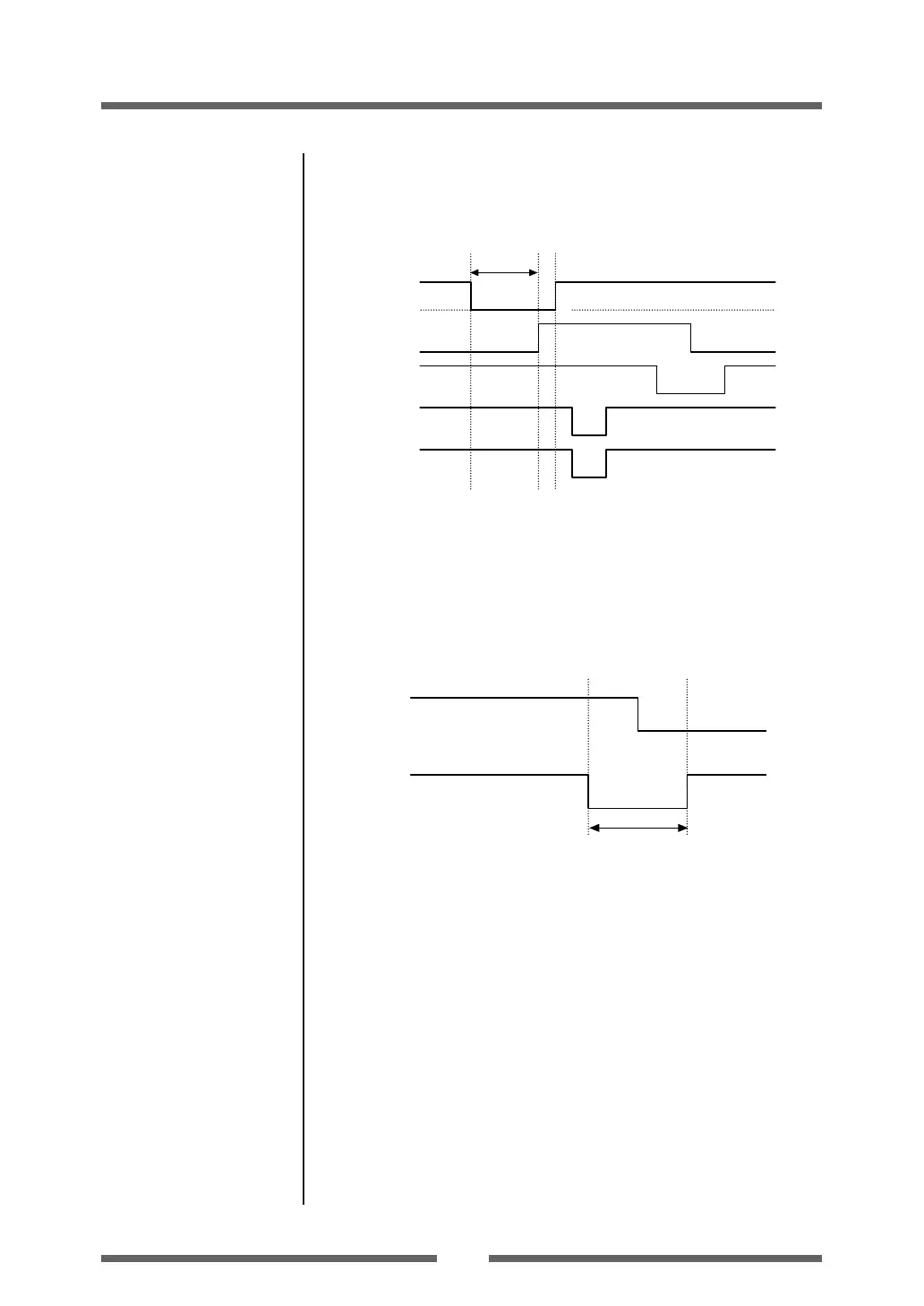

Relation of the timing of the BUSY signal and the *ACK signal
[Center – ACK]
[While receiving INIT signal]
Note: If the *Init signal does not have width of 10 to 15
µ sec or more, it
cannot act as an Init signal. If it is lower, the *Init signal is ignored.
BUSY starts up when the *Init signal is perceived.
BUSY
*ACK
3.2µsec
BUSY
*Init
*Ack
*Fault
SELECT
Min. 10 to 15µsec
Interfaces

Citizen CLP-521 Specifications

General

Print technology	Direct thermal
USB port	No
RS-232 interface	Yes
Optional connectivity	Ethernet
USB 1.1 ports quantity	1
USB 2.0 ports quantity	0
Connectivity technology	Wired
Power requirements	100 - 240V, 50 / 60Hz
Compatible operating systems	Windows 2000/XP
Flash memory	2 MB
Certification	UL, C-UL, FCC: class A, CCC, CE Marking
Internal memory	8 MB
Number of fonts	2
Built-in barcodes	PDF417, UPC-A, UPC-E
Built-in processor	32 Bit RISC
Mean cycles between failures (MCBF)	1000
Core diameter	25.4 mm
Media thickness	0.0635 - 0.254 mm
Maximum label width	104 mm
Maximum label length	812 m
Maximum roll diameter	127 mm
Supported paper width	19.5 - 118 mm

Weight and Dimensions

Depth	289 mm
Width	231 mm
Height	186 mm
