Printer Adjustments
34
Sensor Adjustments
The sensing level of both the transparent (see thru) and reflective sensors is
adjusted separately and independently. Firstly, the sensor type must be
selected either using the VuePrint menu system or the Sensor Method
Selection shown below. Then the adjustment and calibration of the sensor
can be made.

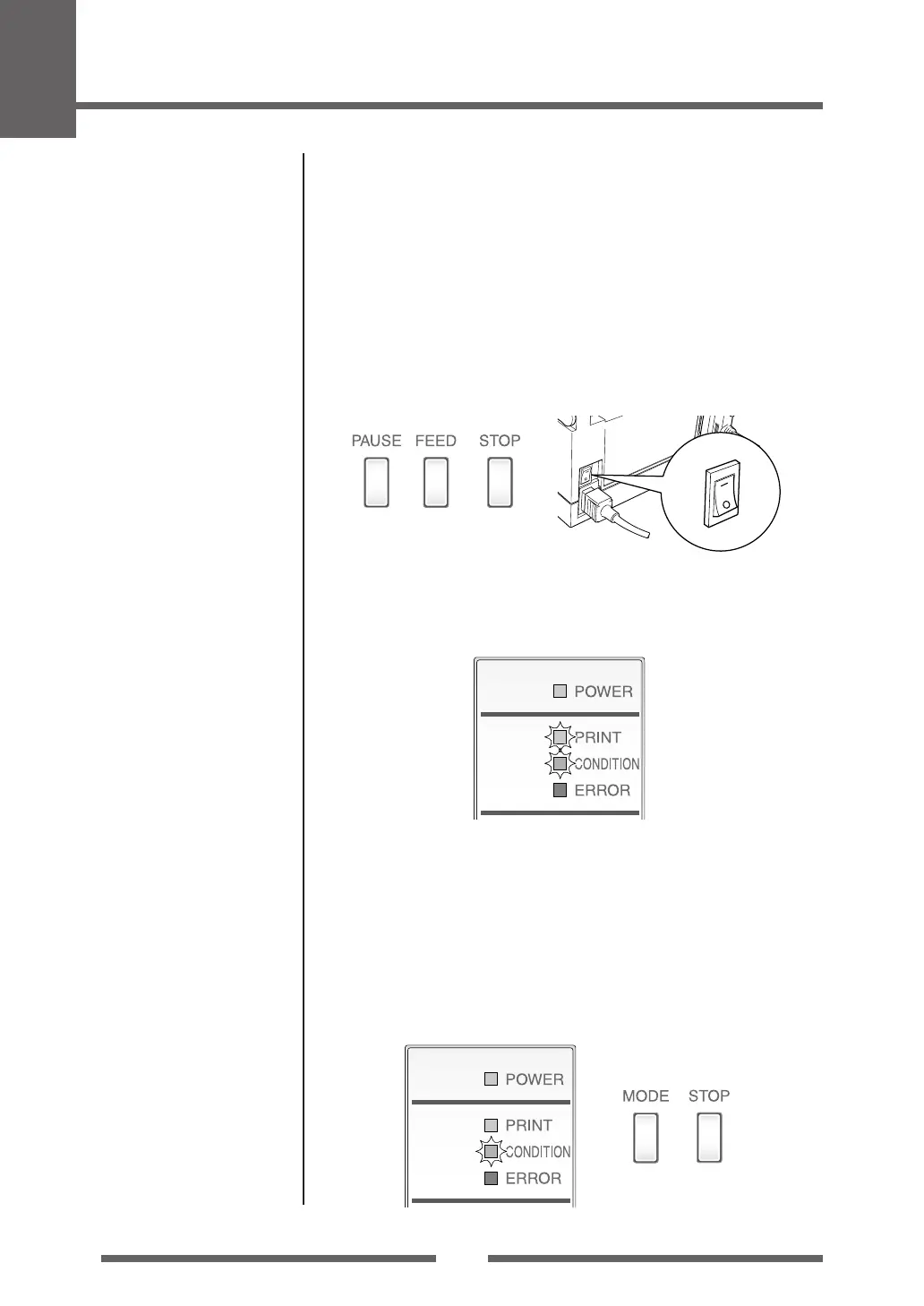

Entering Sensor Adjustment Mode
1. Turn on the power while pushing the PAUSE key, FEED key, and
STOP key simultaneously.
++
Power Switch
2. After the PRINT LED and CONDITION LED light up, release the
keys to change the printer to sensor adjustment setting mode.
Sensor Selection Method (Transparent ↔ Reflective)
To switch from transparent to reflective sensor, ensure the CONDITION LED
is lit then hold down the MODE/REPEAT key and then press the STOP key.
Each time you press the STOP key, you switch to back and forth between the
two sensor types.
If the transparent sensor is selected, the PRINT LED lights up and the buzzer
sounds once. If the reflective sensor is selected, the PRINT LED flashes
slowly and the buzzer sounds twice.
+
Media Setting (p.23)

Citizen CLP-521 Specifications

General

Print technology	Direct thermal
USB port	No
RS-232 interface	Yes
Optional connectivity	Ethernet
USB 1.1 ports quantity	1
USB 2.0 ports quantity	0
Connectivity technology	Wired
Power requirements	100 - 240V, 50 / 60Hz
Compatible operating systems	Windows 2000/XP
Flash memory	2 MB
Certification	UL, C-UL, FCC: class A, CCC, CE Marking
Internal memory	8 MB
Number of fonts	2
Built-in barcodes	PDF417, UPC-A, UPC-E
Built-in processor	32 Bit RISC
Mean cycles between failures (MCBF)	1000
Core diameter	25.4 mm
Media thickness	0.0635 - 0.254 mm
Maximum label width	104 mm
Maximum label length	812 m
Maximum roll diameter	127 mm
Supported paper width	19.5 - 118 mm

Weight and Dimensions

Depth	289 mm
Width	231 mm
Height	186 mm
