Clarion NX501 User Manual

NX501/NZ501
59
English
English
Owner’s Manual
26. INSTALLATION /WIRE
CONNECTION GUIDE
1. Before Starting
1.This set is exclusively for use in cars with a negative ground
12V power supply.
2.Read these instructions carefully.

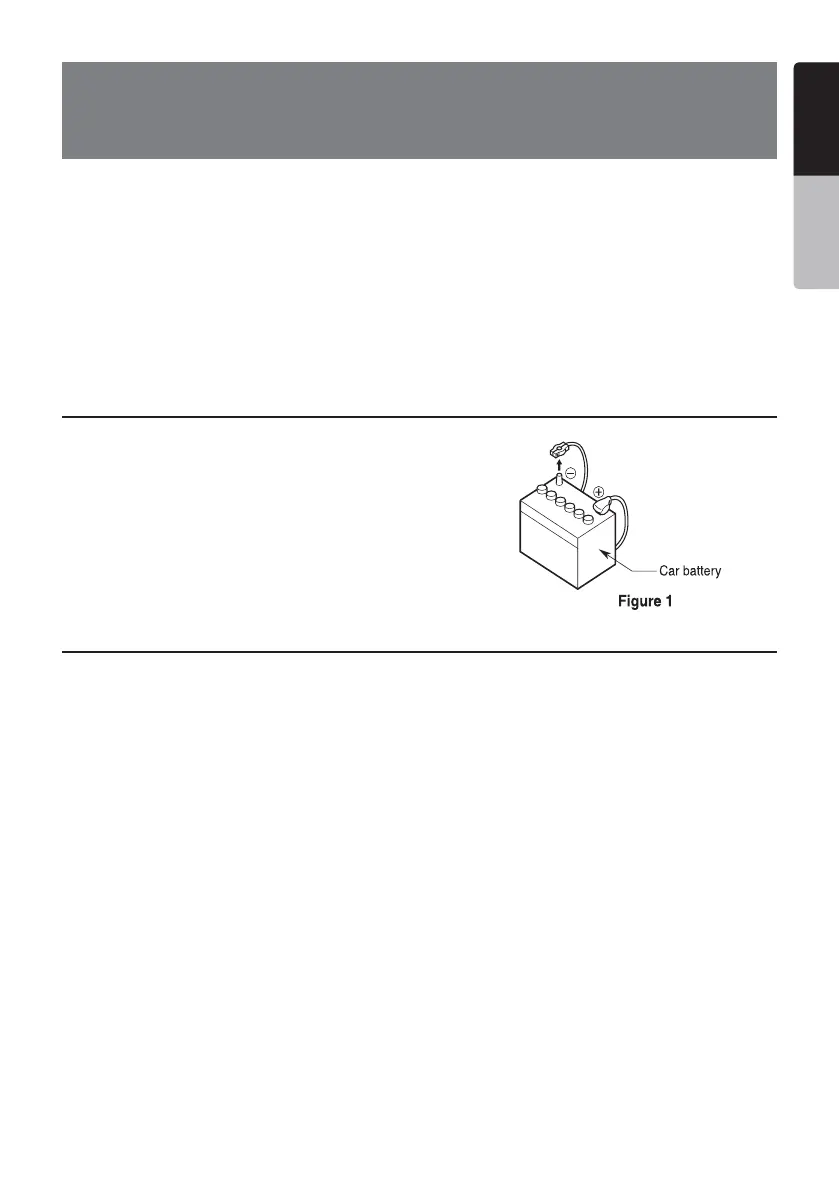

3.Be sure to disconnect the battery “-” terminal
before starting. This is to prevent short circuits during
installation. (Figure 1)
2. Package Contents
Main unit ................................................... 1
Wiring harness
.......................................... 1
GPS antenna
............................................ 1
CLAMP for GPS antenna's cable
............. 3
DOUBLE FACE TAPE for GPS Antenna
... 1
Remote control unit
.................................. 1
Battery (CR2025)
...................................... 1
(Installed in remote control)
Trim ring
................................................... 1
Cleaning cloth........................................... 1
Warranty Card
.......................................... 1
Owner’s manual and
Installation manual.................................... 1
User manual - Clarion mobile map............1
Electro tap
................................................ 2
2DIN trim ring 200mm wide
(NX501 only)
............................................. 1
Back Strap (NZ501 only)
.......................... 1
Mounting Bracket key
(NZ501 only)
............................................. 2
Flush mount bolts
(NX501)
..................................................... 8
(NZ501)
..................................................... 4
Hexagon Head Screw
(NX501)
..................................................... 8
(NZ501)
..................................................... 5
AV cable
................................................... 1
Line out cable (NX501 only)
...................... 1
Rear Zone out cable (NX501 only)
............ 1
SWI cable (NX501 only)
............................ 1
SIRIUS cable (NX501 only)
....................... 1
HD Radio cable (NX501 only)
................... 1
External Microphone cable
(NX501 only)
............................................. 1
CONTENTS
1. Before Starting ..............................................................................................59
2. Package Contents .........................................................................................59
3. General Cautions...........................................................................................60
4. Cautions On Installation ................................................................................60
5. Installing The Main Unit .................................................................................61
6. Cautions On Wiring .......................................................................................63
7. Wire Connections ..........................................................................................64

Clarion NX501 Specifications

General

AUX in	Yes
USB version	2.0
Bluetooth profiles	A2DP, AVRCP, DUN, HFP, HSP, OPP, PBAP
Line outputs (RCA)	8
USB ports quantity	1
CD-R playback	-
Audio formats supported	MP3, WMA
Supported radio bands	AM, FM
DIN size	2 DIN
Output power	200 W
Product color	Black
Disc types supported	CD, DVD
Audio output channels	4.0 channels
Maximum power per channel	50 W
Display type	LCD
Display diagonal	6.2 \
Compatible memory cards	MicroSD (TransFlash)
