Clarion NX501 User Manual

62 NX501/NZ501
English
Owner’s Manual

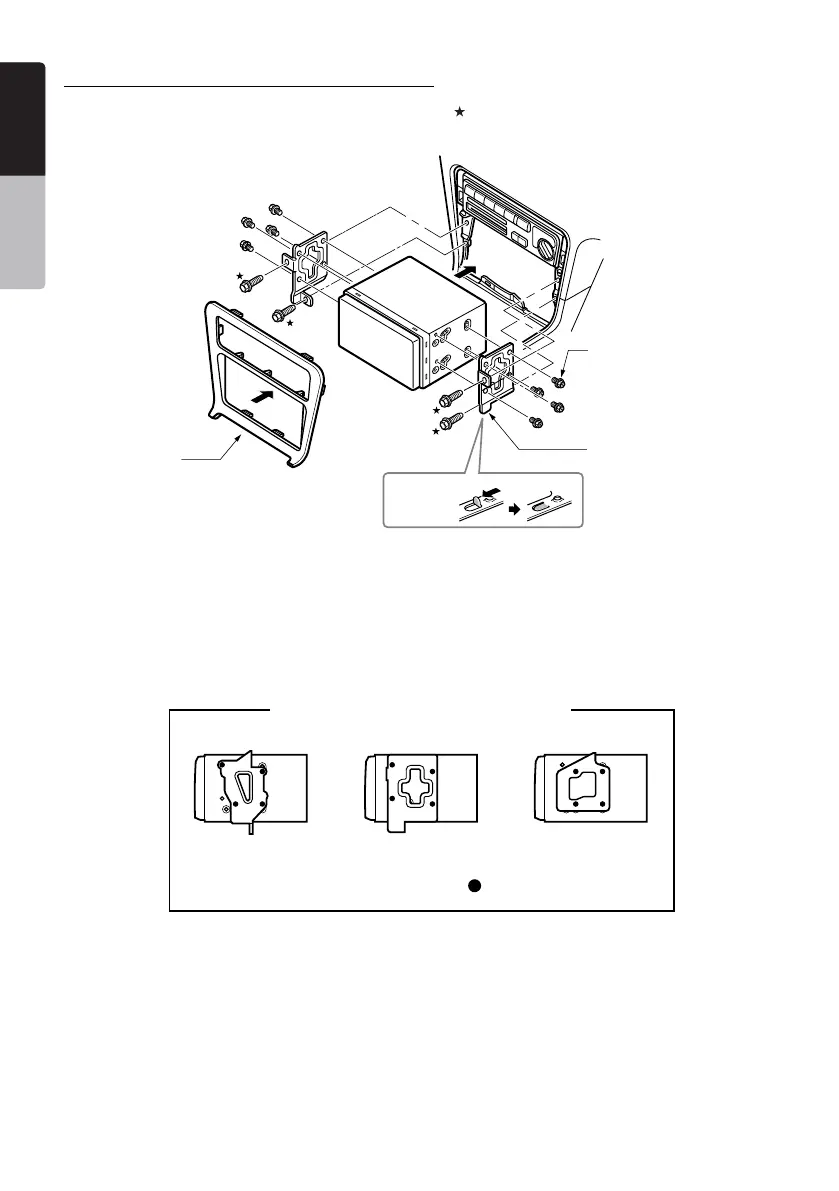

Installing the Main Unit in TOYOTA Vehicle
Install by using parts attached to the vehicle. (Screws marked are attached to the vehicle.)
*2. Some panel openings are too small for the unit
depending on the vehicle type and model. In such
a case, trim the upper and lower sides of the panel
frame by about 0.5 to 1.5 mm so the unit can be
inserted smoothly.
*3. If a hook on the installation bracket interferes with
the unit, bend and atten it with a nipper or similar
tool.
* 3
Figure 7
Main Unit
8-Hexagonal screw
(M5  8)
Mounting bracket
(1 pair for the left
and right sides)
Center Panel
(
* 2 )
8- Hexagonal screws
(M5x8)
Figure 7
Mounting bracket
(1 pair for the left and
right sides)
Vehicles other than NISSAN and TOYOTA
In some cases the center panel may require modification. (Trimming, filing, etc.)
• Removing the Main Unit
When the main unit is to be removed, disassemble it in the reverse of the order in
“INSTALLING THE MAIN UNIT”.
3elpmaxE1elpmaxE Example 2
Affix the screws to the
marks.
Typical Mounting Brackets

Clarion NX501 Specifications

General

AUX in	Yes
USB version	2.0
Bluetooth profiles	A2DP, AVRCP, DUN, HFP, HSP, OPP, PBAP
Line outputs (RCA)	8
USB ports quantity	1
CD-R playback	-
Audio formats supported	MP3, WMA
Supported radio bands	AM, FM
DIN size	2 DIN
Output power	200 W
Product color	Black
Disc types supported	CD, DVD
Audio output channels	4.0 channels
Maximum power per channel	50 W
Display type	LCD
Display diagonal	6.2 \
Compatible memory cards	MicroSD (TransFlash)
