General
Operate in compliance with safety regulations in force.
For detailed information (dimensions, weight, technical
characteristics etc.) please refer to the TECHNICAL
INFORMATION section.
Use single protection devices : gloves, glasses ecc.
During positioning consider these elements :
• technical spaces required for the machine and system
• place where the machine will be installed
• electrical connections
• water connections
• air / aeraulic ducts
Do not considerer these elements could decrease
performances and operational life of the unit.

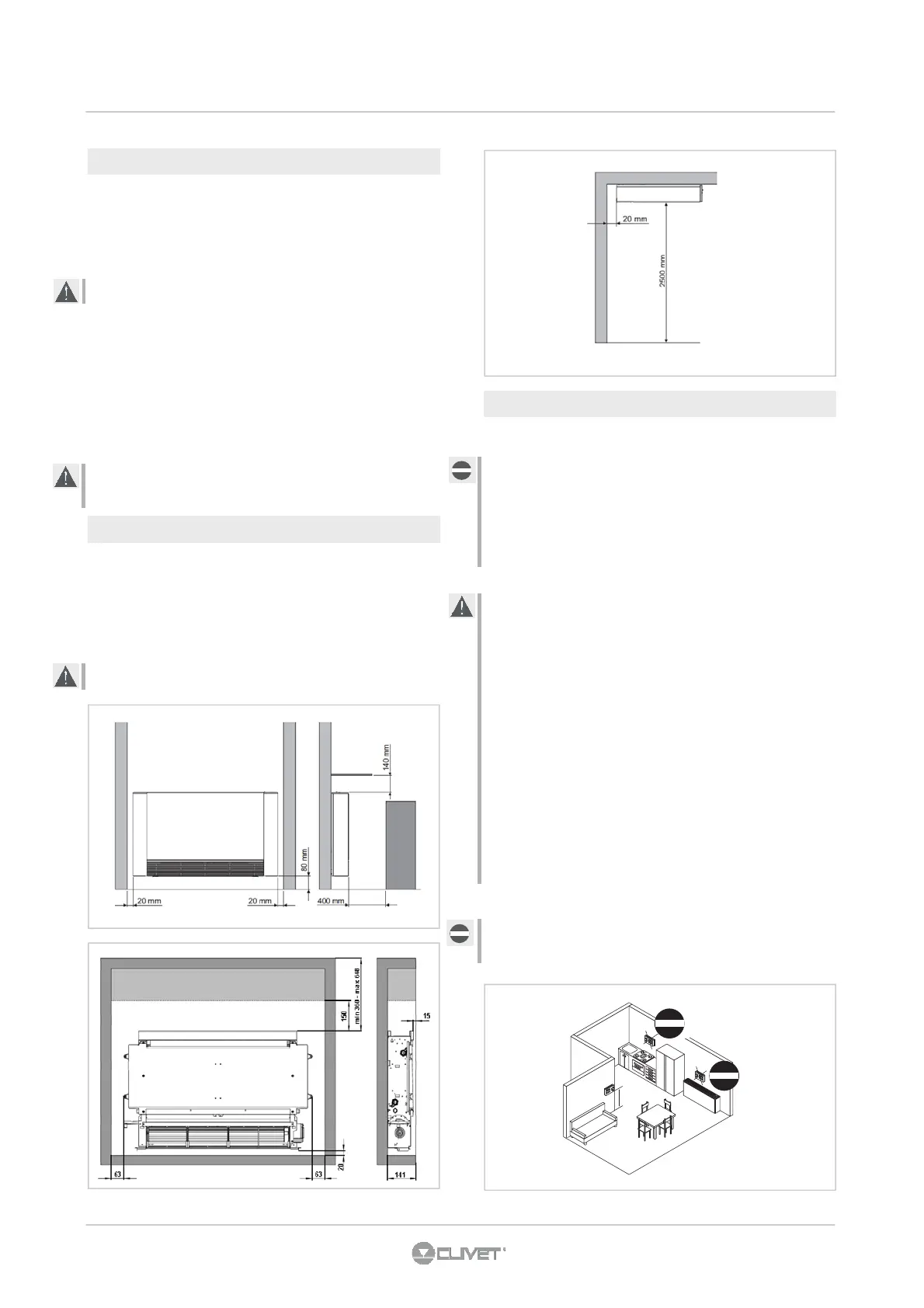

3 - POSITIONING
3.1 PRELIMINARY INFORMATION
3.2 FUNCTIONAL SPACES
3.3 POSITIONING
Functional spaces are designed to:
• guarantee good unit operation
• Carry out maintenance operations
• protect authorized operators and exposed people.
Respect all functional spaces indicated in the figure.
Avoid installing the unit in proximity to:
• positions subject to exposure to direct sunlight;
• in proximity to sources of heat;
• in damp areas or places with probable contact with water;
• in places with oil fumes
• places subject to high frequencies.
Make sure that :
• the wall on which the unit is to be installed is strong
enough to support the weight;
• the part of the wall interested does not have pipes or
electric wires passing through;
• the interested wall is perfectly flat;
• there is an area free of obstacles which could interfere
with the inlet and outlet air flow;
• the installation wall is preferably an outside perimeter wall
to allow the discharge of the condensation outside;
• in case of ceiling installation the airflow is not directed
towards persons.
If provided a wall-mounted ambient thermostat - OPTION - :
Install the room thermostat far from heat sources (radiators,
sunbeam, kitchens), from doors , windows etc.
1,5 m
OK
