22

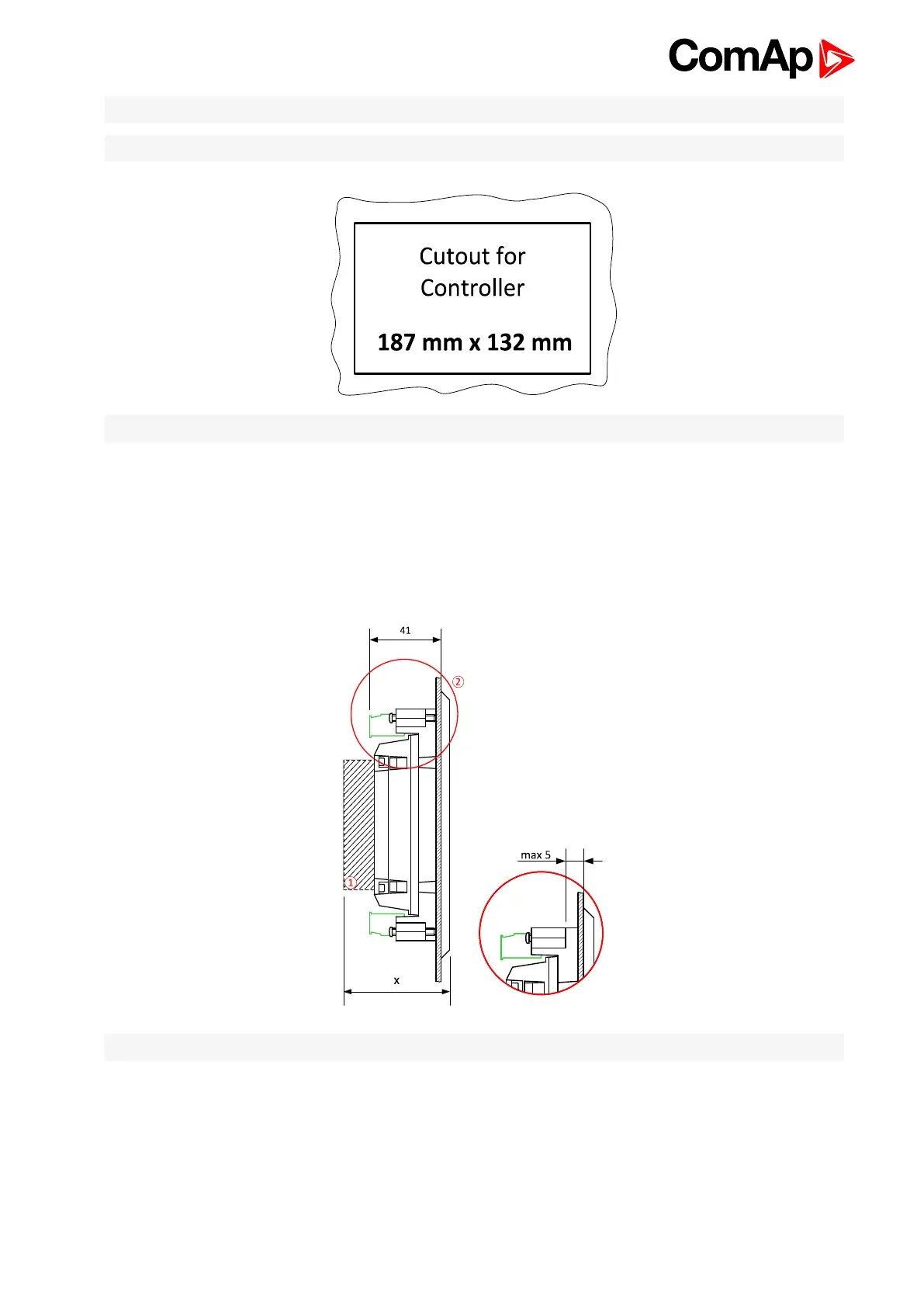

Note: Dimension x depends on plug-in module
Note: Dimensions are in millimeters and are the same for all versions of InteliLite.
Note: Cutout is in millimeters and is the same for all versions of InteliLite.
4.2.2 Mounting
The controller is to be mounted onto the switchboard door. Requested cutout size is 187 x 132 mm. Use the
screw holders delivered with the controller to fix the controller into the door as described on pictures
below.Recommended torque for holders is 0.15N·m.
Panel door mounting
Note: Enclosure Type rating with mounting instruction - For use on a Flat surface of a type 1 enclosure.
