InteliLite Global Guide
37
ConnectionType: Mono Phase

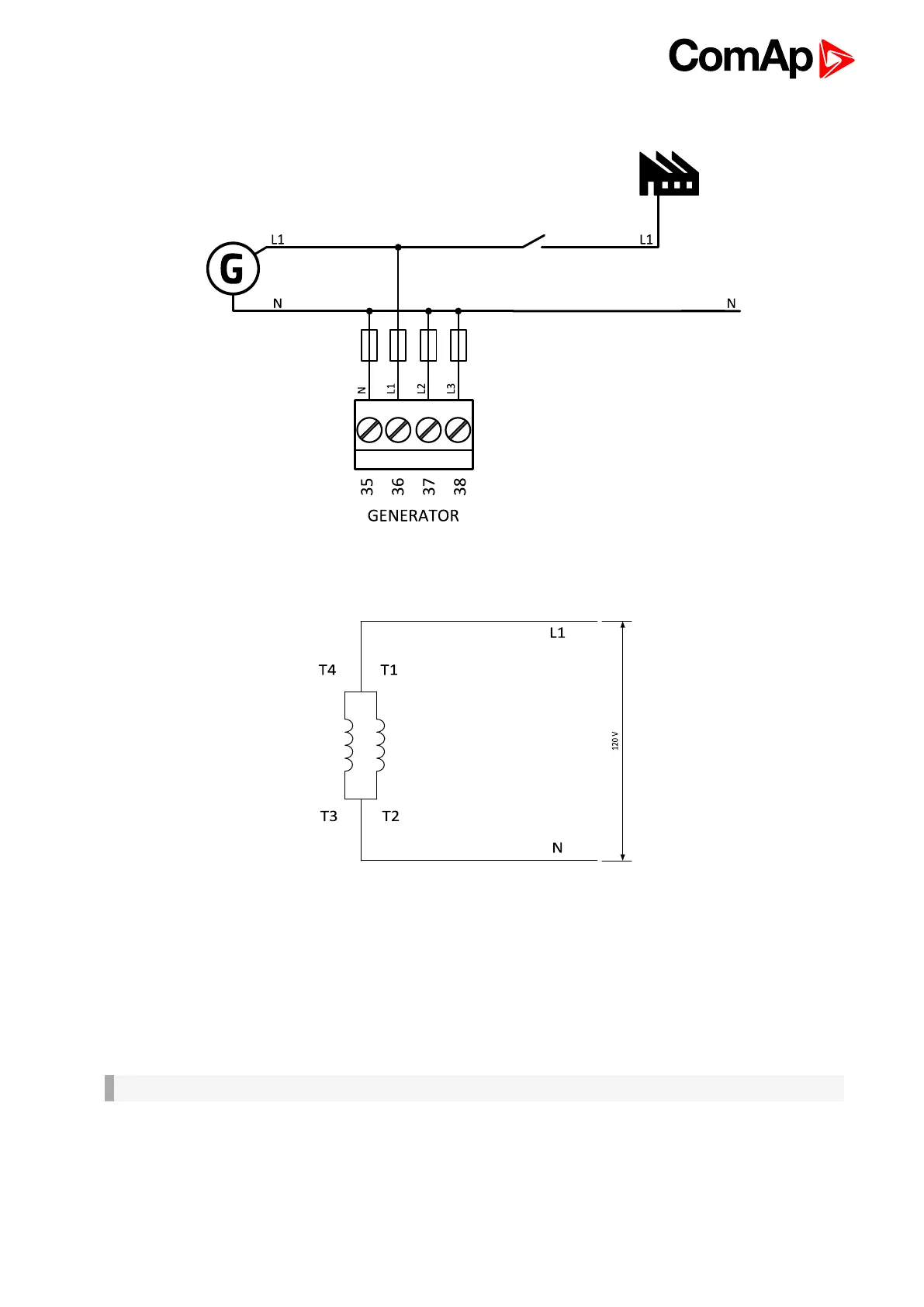

Image 4.15 Mono phase application
Image 4.16 Typical Mono Phase generator wiring
4.4.5 Magnetic pick-up
A magnetic speed sensor (pickup) is the most common method of engine speed measurement. To use this
method, mount the pickup opposite to the engine flywheel, connect the cable to the controller as shown on the
picture below and adjust the setpoint Gear Teeth (page 181) according to the number of teeth on the flywheel.
For the details about the pick-up input parameters see Technical data on page 165
IMPORTANT: To ensure proper function use a shielded cable.
