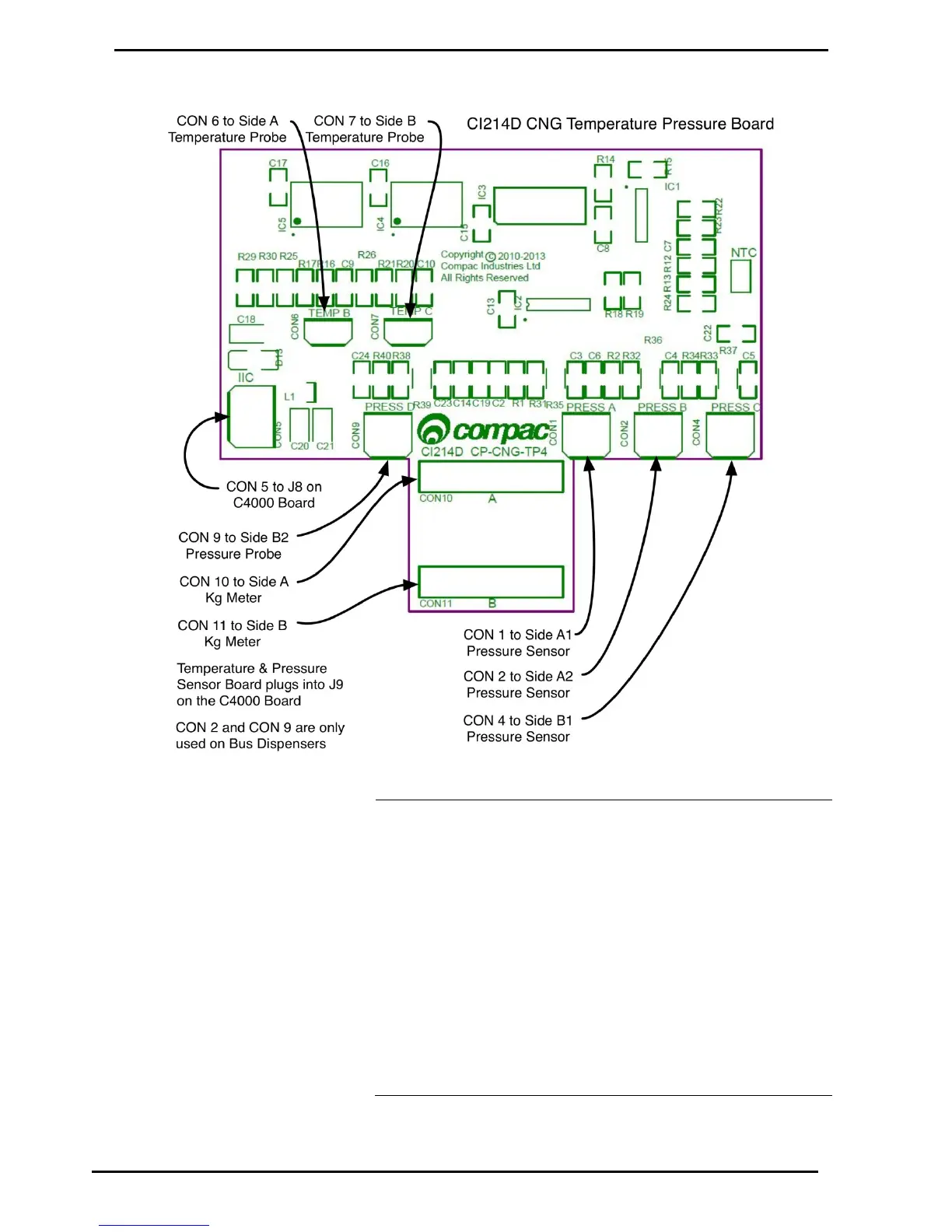

C4000 Temperature Pressure Interface Board CI214D
Electrical Drawings and Component Details
Compac Industries Ltd.
Page 112
www.compacngv.com
C4000 Temperature Pressure Interface Board CI214D
Temperature Pressure Interface Board
Pin Connections
Connection
Function
CON 1
Pressure Transducer Side A1
CON 2
Pressure Transducer A2 (Bus dispensers)
CON 4
CON 6
Pressure Transducer B1
Temperature Probe Side A
CON 7
Temperature Probe Side B
CON 9
Pressure Transducer B2 (Bus dispensers)
CON 5
Connection to J8 on C4000 board
Board plugs into J9 on C4000 board
