Convotherm 4 Series User Manual

3.10 Safety devices
Meaning
The combi oven has a number of safety devices to protect the user from hazards. It is absolutely es‐
sential that all safety devices are fitted and in working order when operating the combi oven
Position and function (table-top units)

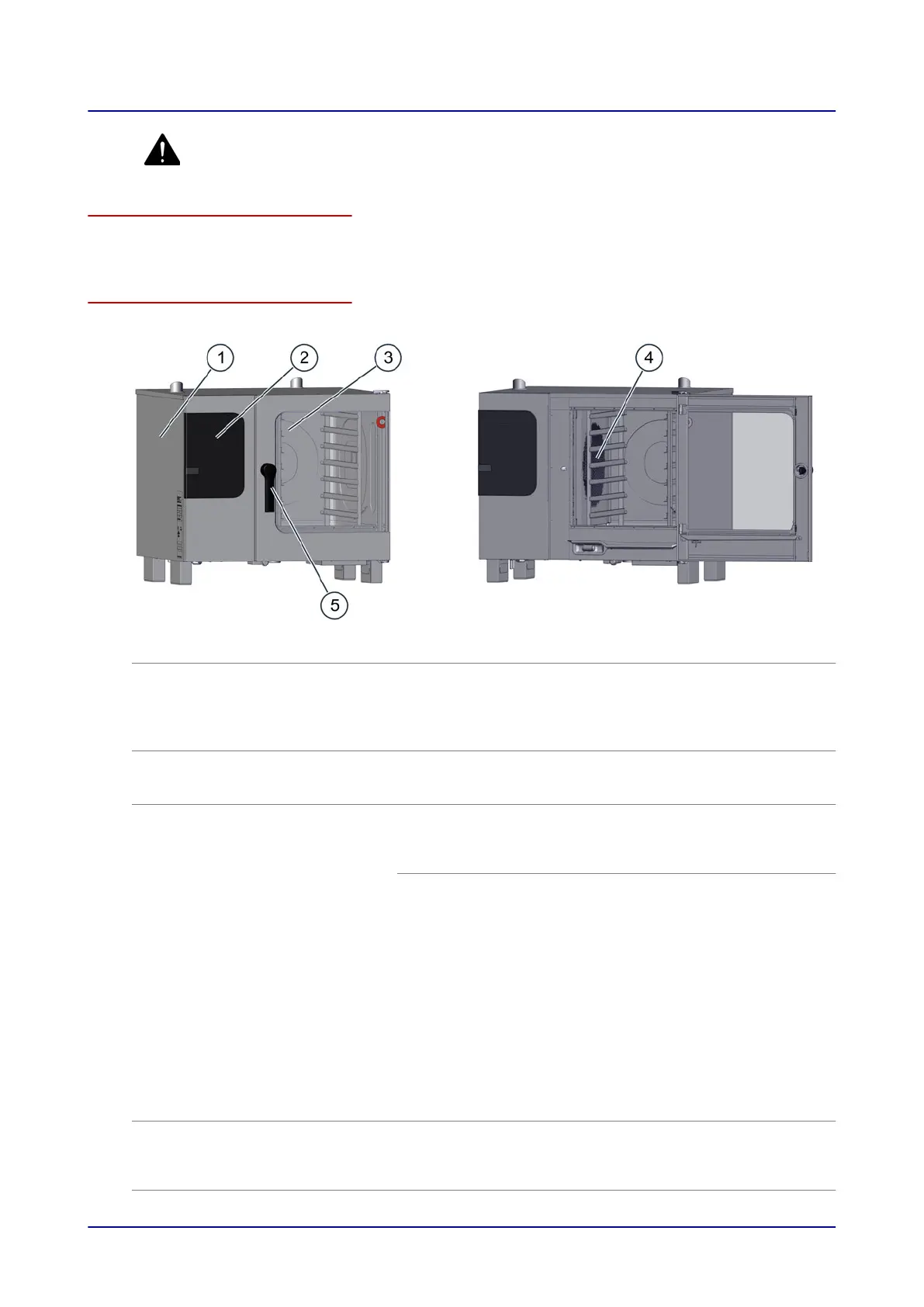

The following illustration shows a size 6.10 electric combi oven as an example of all table-top units:
Item Safety device Function Check
1
Cover can only be re‐
moved using tool
■
Prevents live parts from be‐
ing touched accidentally
■
Prevents access to the
moving fan from the wiring
compartment
Check that the cover is in
place
2
Operating panel can
only be removed using
a tool
Prevents live parts from being
touched accidentally
Ensure that the operating
panel is in place
3
Appliance door with
magnetic door switch
Appliance door:
Protects the user and outside
environment from hot steam
Check the door pane regularly
for scratches, cracks, indenta‐
tions etc. and replace it if any
are found
Magnetic door switch (electri‐
cal door sensor):
■
When the appliance door is
opened, the switch stops:
■
rotation of the fan wheel
(comes to a stop after a
few seconds)
■
operation of the heating
element
■
Distribution of the clean‐
ing agents by the fully au‐
tomatic oven cleaning
system
■
Prompt to close the appli‐
ance door
Check magnetic door switch
at low temperature
Action:
■
Open the appliance door
fully
■
Press Start
Result:
Motor must not start up.
4
Suction panel in cook‐
ing chamber; can only
be removed using a
tool
Prevents access to the mov‐
ing fan and ensures good
heat distribution
See 'Releasing and securing
the suction panel' in the User
manual
3 For your safety
37
