6.1.4 Connection to an energy optimization system (electric appliances only)
Purpose of an energy optimization system
You can connect the combi oven to an energy optimization system (e.g. SICOTRONIC). An energy
optimization system smooths out peaks in power consumption that occur during operation of your ap‐
pliances, and can thereby help to reduce your energy costs.
Configuring an energy optimization system
The energy optimization system must be configured as follows:
■
The continuous switch-on time for the combi oven must be set to at least 8 minutes to be certain
that the target cooking temperature is reached.
■
The energy optimization system must not disconnect the power for longer than 30 seconds be‐
cause the cooking result cannot be guaranteed for a longer interruption in the power supply.
When connecting the system, refer to the circuit diagram and operating instructions of the energy opti‐
mization system.
Accessories required
You need the following parts to connect the energy optimization system:
■
Connecting cable for energy optimization system
■
Cable gland M20
■
Cable ties
Connecting an energy optimization system
The figure below shows a size 12.20 combi oven as an example for all appliance sizes:
1.
Disconnect the energy optimization system and the combi
oven from the power supply.
2.

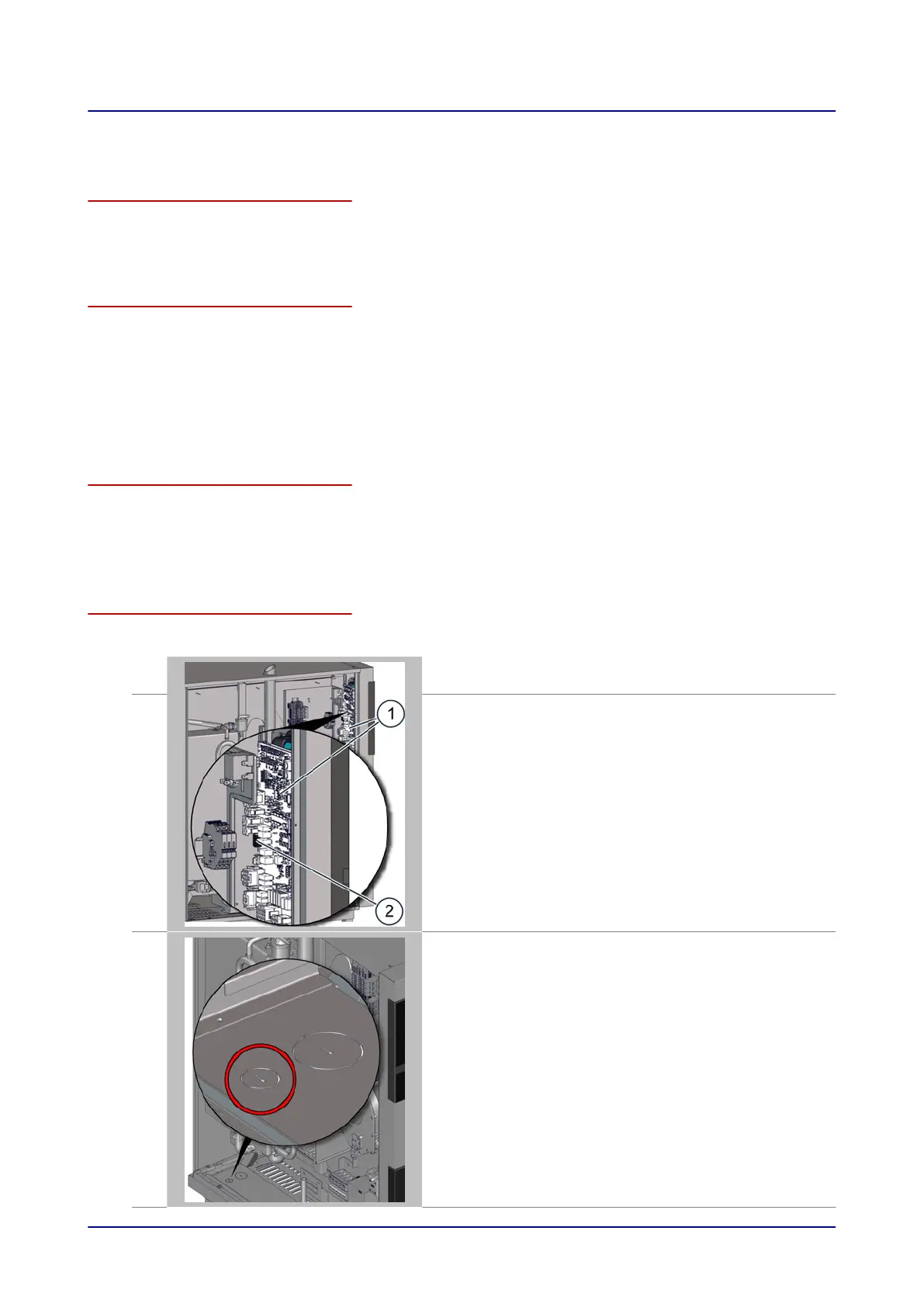

Remove the side panel from the combi oven in order to
access terminal block -X37 (2) on the system interface
board (SIB) (1) in the area behind the operating panel.
3.
■
Tap out the smaller, pre-perforated knock-out in the
floor panel of the combi oven, at the position indicated.
■
Insert the cable gland in the knock-out then feed the
connecting cable for the energy optimization system
through the cable gland into the wiring compartment of
the combi oven.
■
Take the connecting cable to the SIB and fix it in the
wiring compartment, for instance using cable ties to at‐
tach it to an existing wiring harness.
6 Installation
