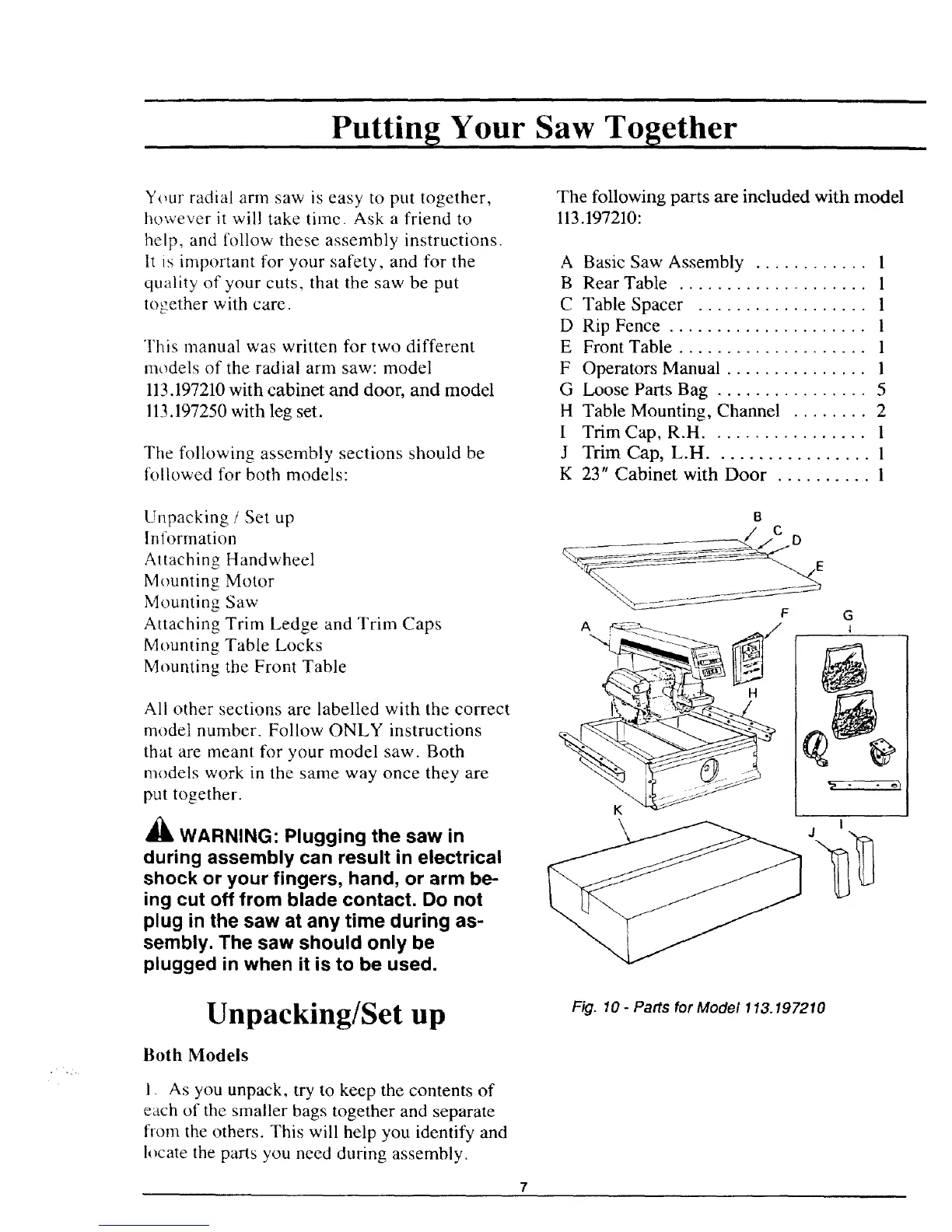

Putting Your Saw Together
Your radial arm saw is easy to put together,
however it will take time. Ask a friend to
help, and follow these assembly instructions.
It is important for your safety, and for the
quality of your cuts, that the saw be put
together with care.
This manual was written for two different
models of the radial arm saw: model
113.197210with cabinet and door, and model
113.197250 with leg set.
The following assembly sections should be
followed for both models:
Unpacking / Set up
Information
Attaching Handwheel
Mounting Motor
Mounting
Attaching
Mounting
Mounting
Saw'
Trim Ledge and Trim Caps
Table Locks
the Front Table
All other sections are labelled with the correct
model number. Follow ONLY instructions
that are meant for your model saw. Both
models work in the same way once they are
put together.
_1_ WARNING: Plugging the saw in
during assembly can result in electrical
shock or your fingers, hand, or arm be-
ing cut off from blade contact. Do not
plug in the saw at any time during as-
sembly. The saw should only be
plugged in when it is to be used.
Unpacking/Set up
Both Models
I As you unpack, try to keep the contents of
each of the smaller bags together and separate
from the others. This will help you identify and
locate the parts you need during assembly,
The following parts are included with model
113.197210:
A Basic Saw Assembly ............ l
B Rear Table .................... 1
C Table Spacer .................. 1
D Rip Fence ..................... 1
E Front Table .................... 1
F Operators Manual ............... 1
G Loose Parts Bag ................ 5
H Table Mounting, Channel ........ 2
I Trim Cap, R.H ................. 1
J Trim Cap, L.H ................. 1
K 23" Cabinet with Door .......... 1
G
I
Fig. 10 - Parts for Mode1113.197210
