D-Link DAP-2660 User Manual

D-Link DAP-2660 User Manual
92
Administration
Check one or more of the ve main categories to display the various hidden administrator parameters and settings displayed on the next ve
pages. Each of the ve main categories display various hidden administrator parameters and settings.

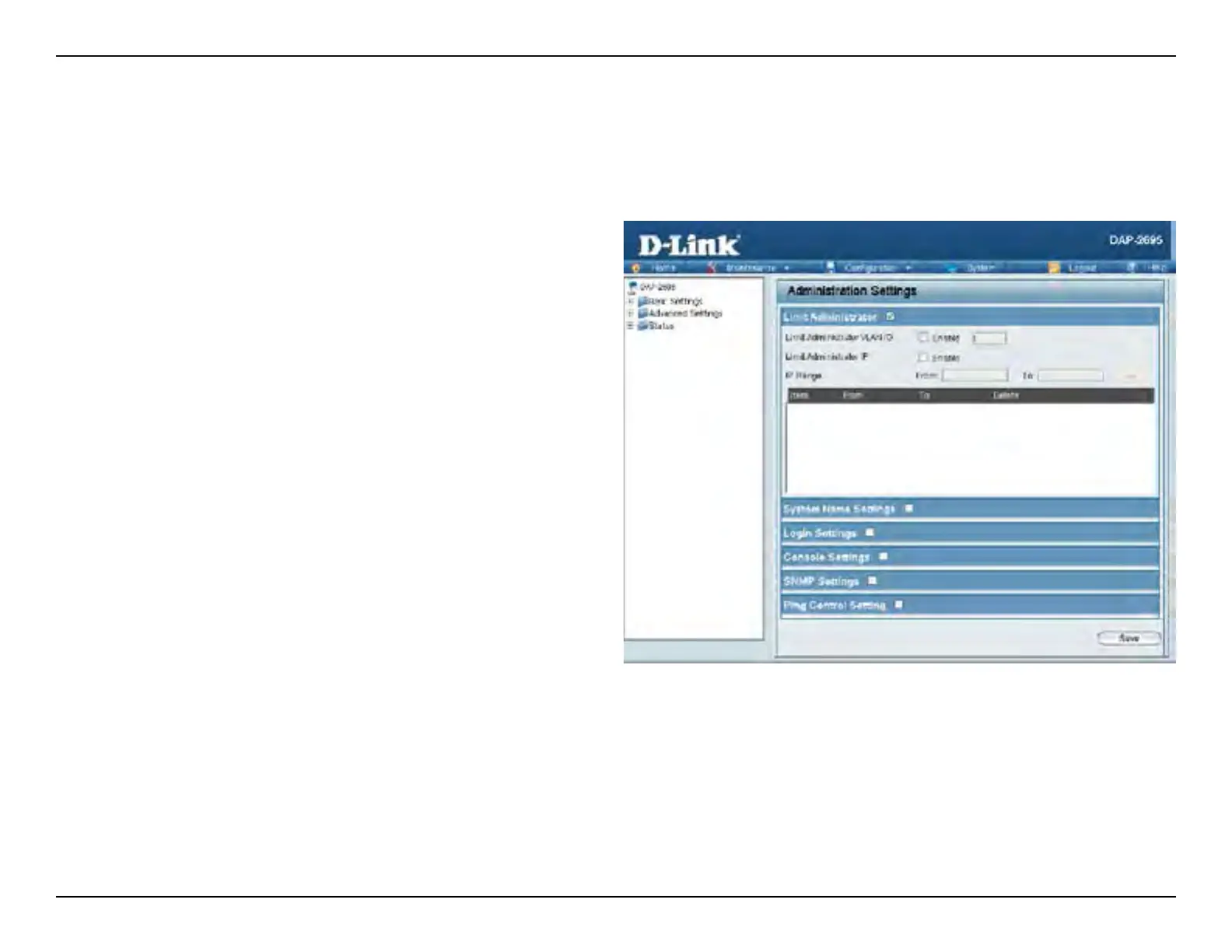

Limit Administrator
VLAN ID:
Limit Administrator IP:
IP Range:
Check the box provided and the enter the
specic VLAN ID that the administrator will be
allowed to log in from.
Check to enable the Limit Administrator IP
address.
Enter the IP address range that the
administrator will be allowed to log in from
and then click the Add button.
Limit Administrator

D-Link DAP-2660 Specifications

General

2.4 GHz	Yes
Modulation	PSK
Frequency band	2.4, 5 GHz
Number of users	- user(s)
Channels quantity	- channels
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3u
Maximum data transfer rate	1200 Mbit/s
Internal	No
Certification	FCC\\r IC\\r CE\\r UL
Security features	Network access point (NAP)
Security algorithms	64-bit WEP, 128-bit WEP, 802.1x RADIUS, SSID, WPA, WPA2
Antenna features	Integrated antenna
Antennas quantity	4
Antenna gain level (max)	4 dBi
Power consumption (typical)	11 W
Storage temperature (T-T)	-20 - 65 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Package depth	269 mm
Package width	204 mm
Package height	64 mm
Package weight	562.5 g
Pallet width	1200 mm
Pallet length	1100 mm
Pallet height (air)	2047 mm
Pallet gross weight (air)	439460 g
Quantity per pallet (air)	480 pc(s)
Shipping (inner) case width	290 mm
Shipping (inner) case height	239 mm
Shipping (inner) case length	352 mm
Shipping (inner) case weight	4385 g
Shipping (inner) case net weight	2230 g
Number of cartons per pallet (air)	96 pc(s)
Quantity per shipping (inner) case	5 pc(s)
Harmonized System (HS) code	85176990

Weight and Dimensions

Width	170 mm
Height	28 mm
Weight	316 g
