Section 3 - Conguration

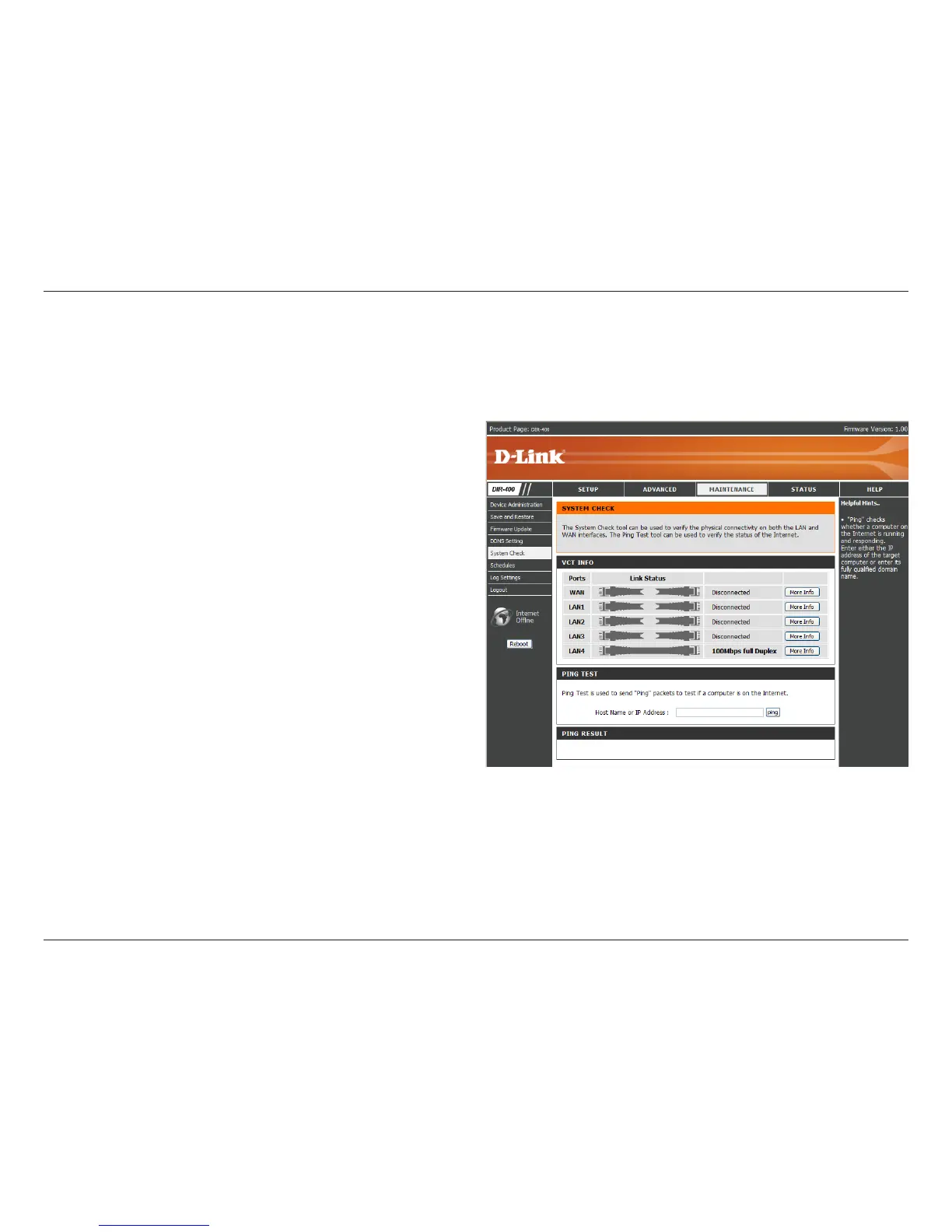

System Check
VCT is an advanced feature that integrates a LAN
cable tester on every Ethernet port on the router.
Through the graphical user interface (GUI), VCT
can be used to remotely diagnose and report
cable faults such as opens, shorts, swaps, and
impedance mismatch. This feature signicantly
reduces service calls and returns by allowing users
to easily troubleshoot their cable connections.
Click on More Info to nd out more information
about a particular connection.
The Ping Test is used to send ping packets to test
if a computer is on the Internet. Enter the Host
Name or IP Address that you wish to ping, and
click Ping.
Virtual Cable
Tester (VCT)
Info:
Ping Test:
This tool is used to verify physical connectivity on both the LAN and the WAN interfaces. The Ping Test can be used
to test the status of the Internet.
