DSL-2520U ADSL2/2+ Router with USB and Ethernet Ports
User Manual
Installation and Connection
After successful registration the router's quick settings page opens.

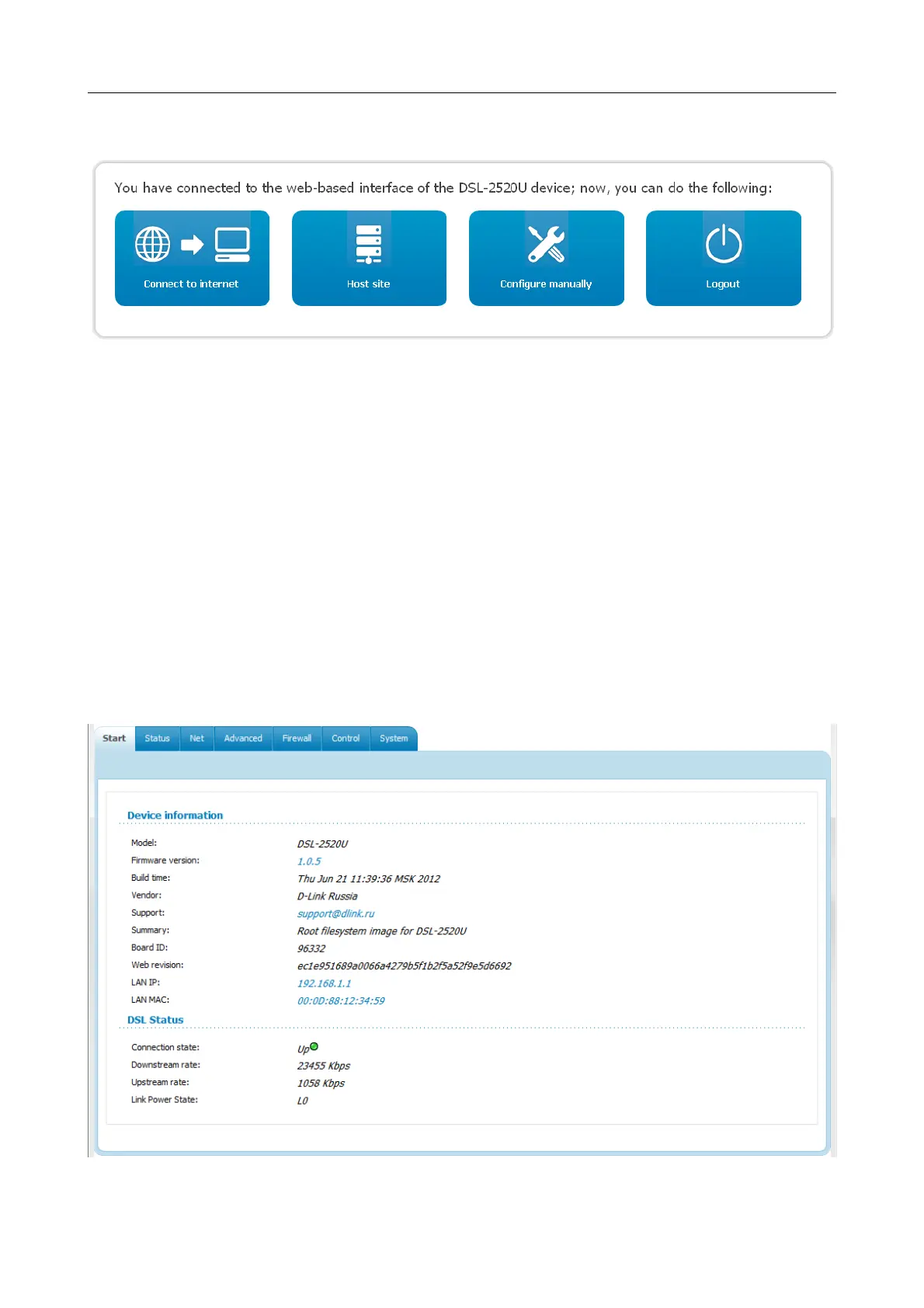

Figure 13. The quick settings page.
To configure connection to the Internet, click the Connect to internet button. After clicking the
button, the Internet Setup Wizard opens (see the Internet Setup Wizard section, page 26).
To configure access from the Internet to a web server located in your LAN, click the Host site
button. After clicking the button, the Site Setup Wizard opens (see the Site Setup Wizard section,
page 39).
To get back to the quick settings page from any Wizard or web-based interface menu section, left-
click the D-Link logo in the top left corner of the page.
To configure all parameters of the router independently without the Wizards, click the Configure
manually button.
After clicking the button the system statistics page opens. The page displays general information on
the router and its software (the version and the date of the firmware, the IP address of the device,
etc.), and data on the DSL connection state.
Figure 14. The system statistics page.
Page 23 of 83
