D-Link DSL-2520U User Manual

DSL-2520U ADSL2/2+ Router with USB and Ethernet Ports
User Manual
Configuring via Web-based Interface
Advanced
In this menu you can configure advanced settings of the router:
• enable the UPnP function
• define interface groups
• configure a DDNS service
• add name servers
• define static routes
• edit the ADSL connection parameters
• create rules for remote access to the web-based interface.
UPnP
On the Advanced / UPnP page, you can enable and disable the UPnP function.
UPnP is a set of networking protocols designed for automatic configuration of network devices. The
UPnP function performs automatic configuration of the device's parameters for network
applications requiring an incoming connection to the router.

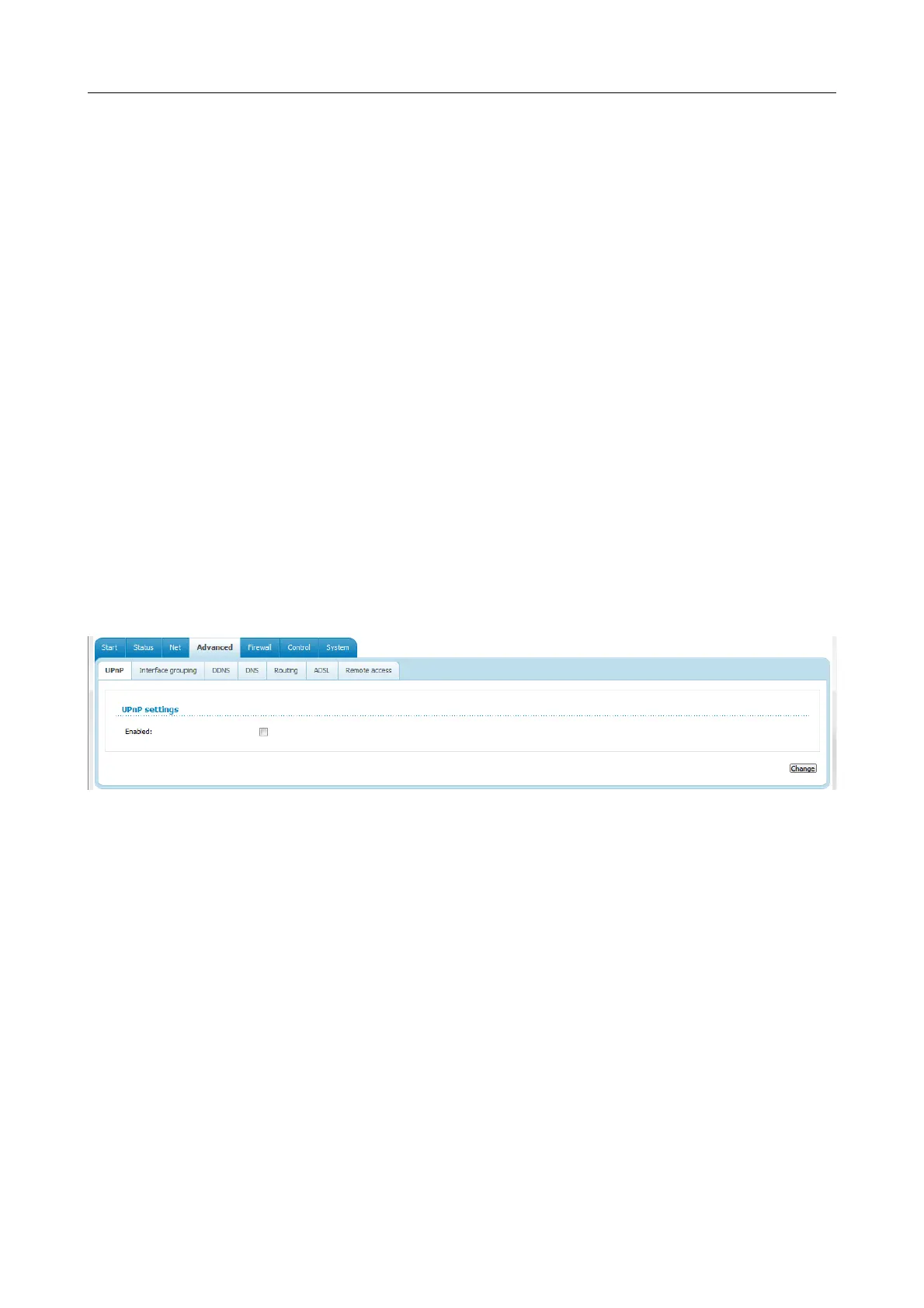

Figure 49. The Advanced / UPnP page.
If you want to enable the UPnP function in the router, select the Enabled checkbox and click the
Change button.
If you want to manually specify all parameters needed for network applications, deselect the
Enabled checkbox and click the Change button.
Page 55 of 83

D-Link DSL-2520U Specifications

Data Transfer Rates

ADSL full rate downstream	up to 8 Mbps
ADSL full rate upstream	up to 1 Mbps
G.lite downstream	up to 1.5 Mbps
G.lite upstream	up to 512 Kbps
G.dmt.bis full rate downstream	up to 12 Mbps
G.dmt.bis full rate upstream	up to 12 Mbps
ADSL2 full rate downstream	up to 24 Mbps

Interfaces

ADSL interface connector	RJ-11
LAN interface	RJ-45 port for 10/100BASE-T Ethernet
USB interface	USB port Type B connector, USB 1.1 Specification
