DSL-2520U ADSL2/2+ Router with USB and Ethernet Ports
User Manual
Configuring via Web-based Interface
On the opened page, specify the needed parameters.

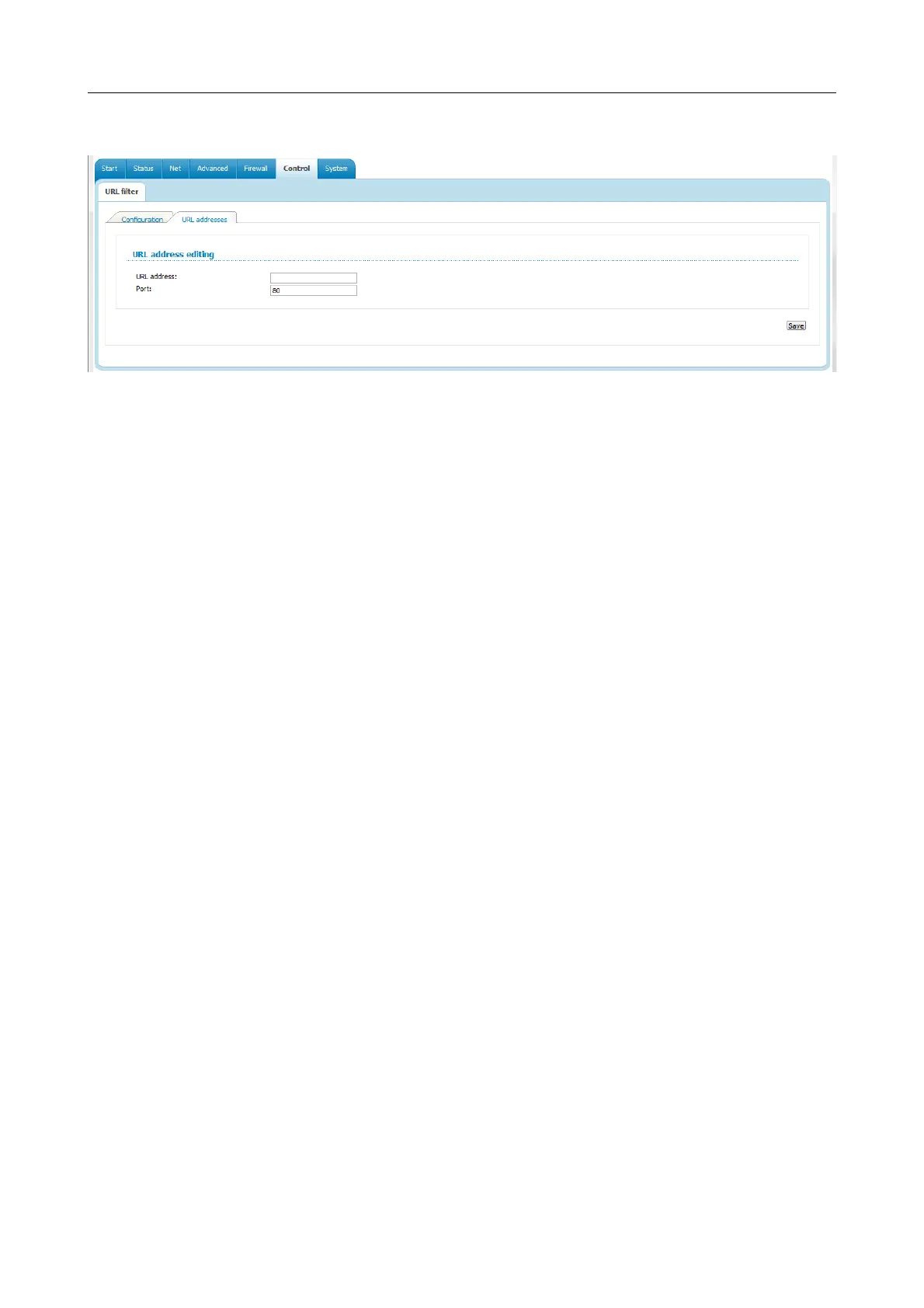

Figure 72. The page for adding an address for the URL filter.
Enter a URL address in the URL address field, specify a port (as usual, you need to specify port
80 for HTTP), then click the Save button.
To remove an address from the list of URL addresses, select the relevant address in the table on the
URL addresses tab and click the Delete button.
To disable the URL filter, deselect the Enable/Disable URL filter checkbox on the
Configuration tab, then click the Change button.
Page 76 of 83
