D-Link DSL-520B User Manual

5D-Link DSL-520B ADSL2+ Modem User Manual
Section 1 - General Information
1
Power LED
• A solid green light indicates the unit is powered on.
• A red light indicates a malfunction.
2
LAN LED
• AsolidlightindicatesaconnectiontoanEthernet-enabledcomputer.ThisLED
blinks during data transmission.
3
DSL LED
• A solid light indicates the DSL is synchronized
• AashingLEDindicatesthemodemisattemptingtosynchronizewiththeDSL
provider.
4
Internet LED
• A solid green light indicates that the modem has an IP address and is connected
to the Internet.
• A red light indicates that the modem does not have an IP address or authentication
has failed
• No light indicates that an ADSL connection is not present or the modem is in
bridge mode.

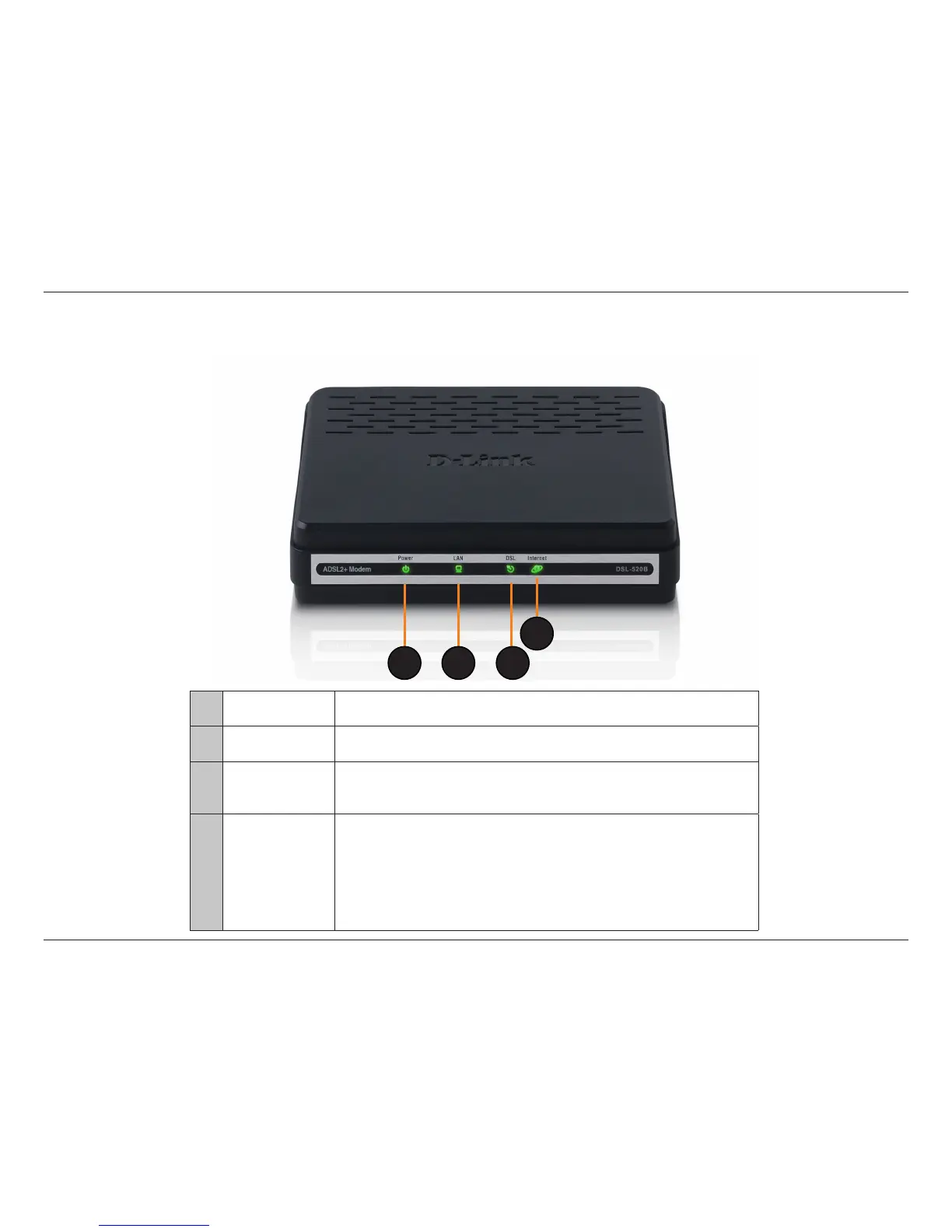

Front Panel View
1 2 3
4

D-Link DSL-520B Specifications

Data Transfer Rates

G.dmt full rate downstream	up to 8 Mbps
G.dmt full rate upstream	up to 1 Mbps
G.lite downstream	up to 1.5 Mbps
G.lite upstream	up to 512 Kbps
G.dmt.bis full rate downstream	up to 12 Mbps
G.dmt.bis full rate upstream	up to 12 Mbps
ADSL full rate downstream	up to 24 Mbps
ADSL full rate upstream	up to 1 Mbps

Interfaces

ADSL interface	RJ-11 connector
LAN interface	RJ-45 port
Ethernet	10/100BASE-T
