Section 9 - Advanced Setup
Advanced Settings
Thefrequencybandof ADSL is splitinto 256 separate tones, each
spaced4.3125kHzapart.Eachtonecarriesseparatedata,sothemodem
operates as if 256 separate modems were running in parallel. The tone
range is from 0 to 31 for upstream and from 32 to 255 for downstream.
Do not change these settings unless directed by your ISP.

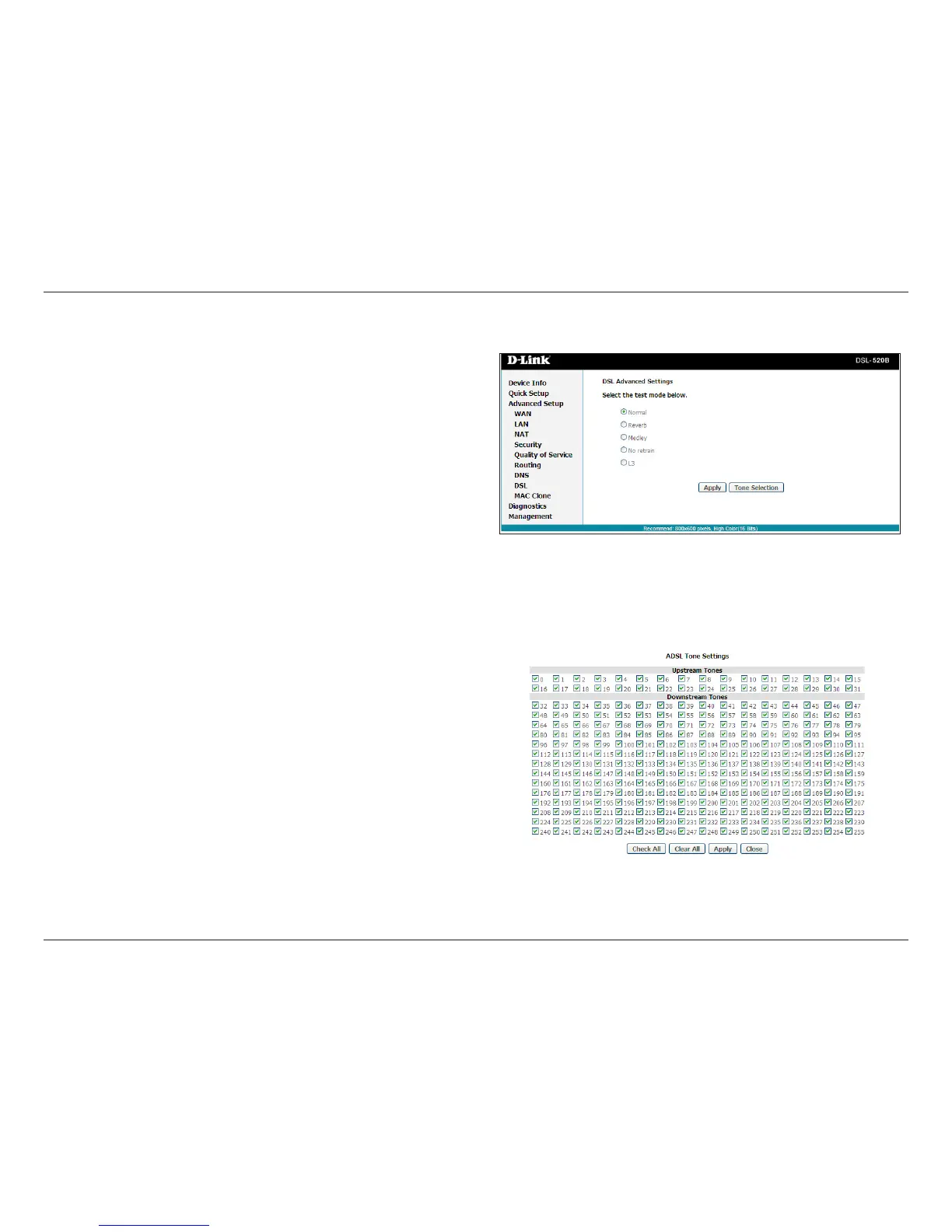

The test mode can be selected from the ADSL Advanced Settings page.
Testmodesincludenormal,reverb,medley,noretrain,andL3.Afteryou
makeyourselection,clickonApply to save these settings rst before
you go to Tone Selection.

D-Link DSL-520B Specifications

Data Transfer Rates

G.dmt full rate downstream	up to 8 Mbps
G.dmt full rate upstream	up to 1 Mbps
G.lite downstream	up to 1.5 Mbps
G.lite upstream	up to 512 Kbps
G.dmt.bis full rate downstream	up to 12 Mbps
G.dmt.bis full rate upstream	up to 12 Mbps
ADSL full rate downstream	up to 24 Mbps
ADSL full rate upstream	up to 1 Mbps

Interfaces

ADSL interface	RJ-11 connector
LAN interface	RJ-45 port
Ethernet	10/100BASE-T
