D-Link DSR-500 User Manual

Unified Services Router User Manual
97
 Idle Timeout: The session timeout for the user.

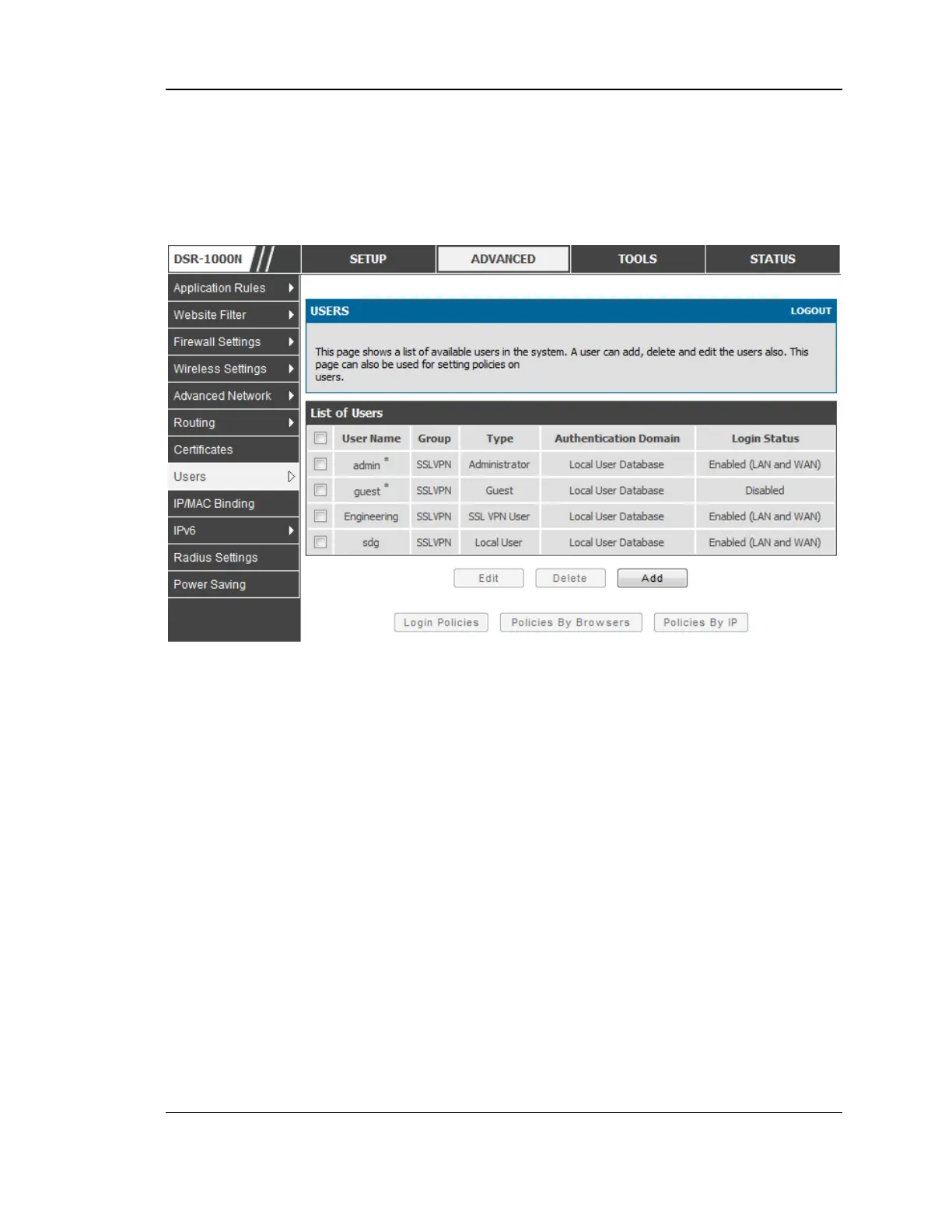

Once the user is configured, the DSR will display a list of all configured users.
Figure 62: Available Users with login status and associated
Group/Domain
Advanced > Users > Domains
The Domain determines the authentication method (local user database, external
server) to be used when validating the remote user‘s connection. As well the Domain
determines the portal layout presented to the remote SSL user. Since the portal layout
assigns access to SSL VPN tunnel and/or SSL VPN Port Forwarding features, the
domain is essential in defining the authentication and features exposed to SSL users.
The following information is used to configure a domain:
 Domain Name: The unique identifier of the domain.
 Authentication Type: The authentication type can be one of the following:
Local User Database, Radius-PAP, Radius-CHAP, Radius-MSCHAP, Radius-
MSCHAPv2, NT Domain, Active Directory, and LDAP.
 Authentication Server: If the SSL VPN connection will use an authentication
method other than the Local User Database (such as a RADIUS server), then
the sever access details are needed. If there are multiple authentication
servers, user can enter the details for upto three authentication servers.
 Authentication Secret: If the domain uses RADIUS authentication then the
authentication secret is required (and this has to match the secret configured
on the RADIUS server).
