D-Link DWR-116 User Manual

17D-Link DWR-116 User Manual
Section 3 - Conguration

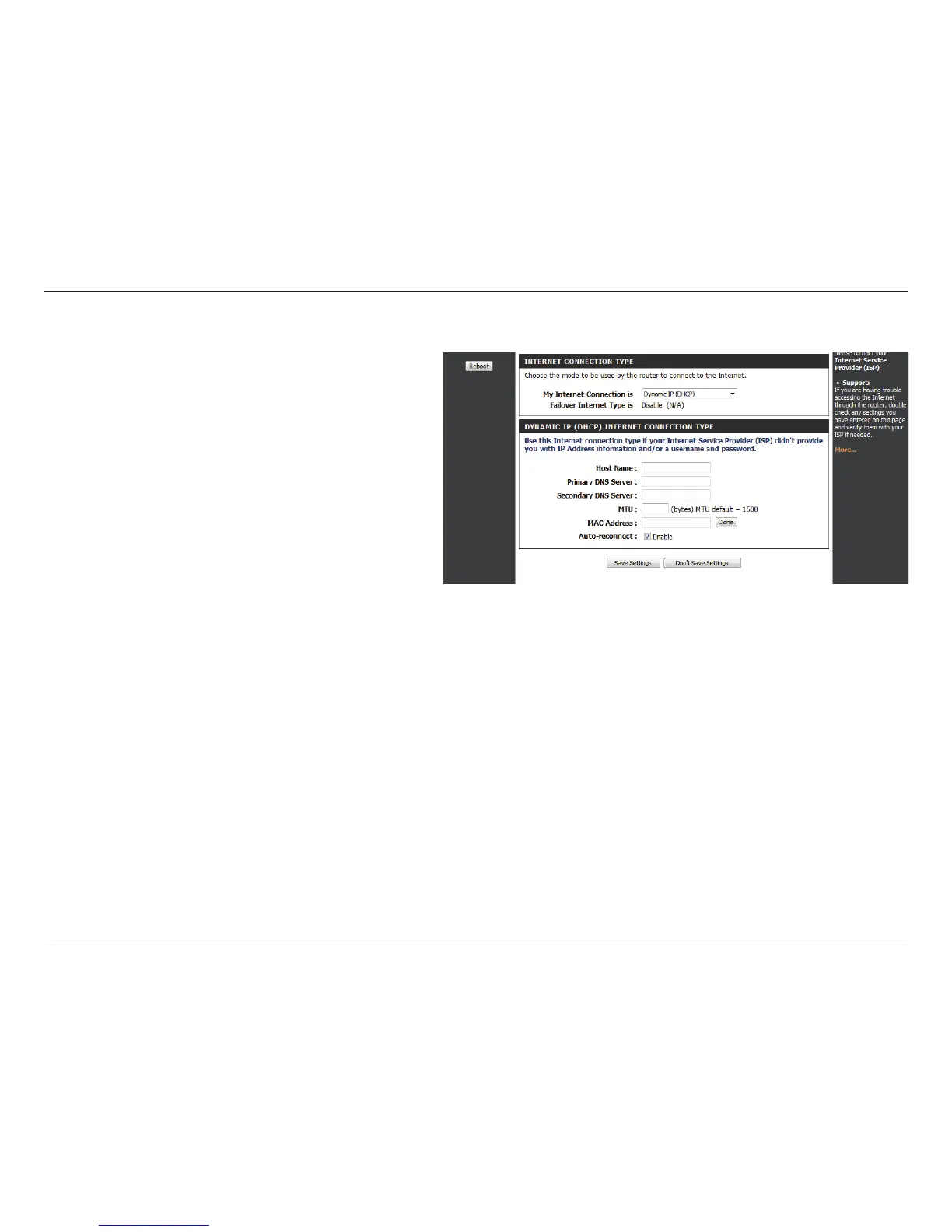

Dynamic IP (DHCP)
(Optional) Required by some ISPs.
(Optional) Fill in with IP address of primary
DNS server.
(Optional) Fill in with IP address of secondary
DNS server.
You may need to change the Maximum
Transmission Unit (MTU) for optimal
performance. The default value is 1500.
The default MAC address is set to the Internet
port’s physical interface MAC address on the
broadband router. It is not recommended that
you change the default MAC address unless
required by your ISP. You can use the Clone
button to replace the Internet port’s MAC
address with the MAC address of your PC.
This feature enables this product to renew
WAN IP address automatically when the lease
time is expiring.
Click Save Settings to save your changes,
or click Don’t Save Settings to discard your
changes.
This section will help you to obtain IP address information
automatically from your ISP. Use this option if your ISP didn’t
provide you with IP address information and/or a username and
password.
Host Name:
Primary DNS
Server:
Secondary DNS
Server:
MTU (Maximum
Transmission
Unit):
MAC Address:
Auto-reconnect:

D-Link DWR-116 Specifications

Data Rates and Standards

data rates in 802.11n mode	300, 150, 135, 120, 90, 60, 45, 30, 15 Mbps
data rates in 802.11g mode	6/9/11/12/18/24/36/48/54Mbps
data rates in 802.11b mode	1/2/5.5/11Mbps

Frequency and Security

frequency	2.4 - 2.4835 GHz
wireless security	64/128-bit WEP, WPA & WPA2

Ports and Antenna

ports	4 x LAN (RJ-45), 1x WAN, 1 x USB

Power and Dimensions

power adapter	External 5 V DC 2 A
dimensions	148.5 x 113.5 x 25 mm, 5.85 x 4.47 x .98 inches

Operating Environment

operating temperature	0 to 40 °C, 32 to 104 °F
operating humidity	10% to 95% non-condensing
